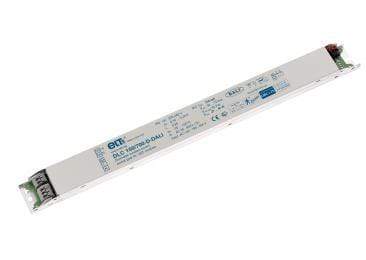

ELT DLC-D-DALI Constant Current Driver | Delight.com.sg
ELT DLC-D-DALI Constant Current Driver | Delight.com.sg
SKU SKU:9918138
Low stock: 10 left
Couldn't load pickup availability
Share
High Power Factor, Thermal Protection, Overload Protection, Short Circuit Protection, Output Ripple Current (Orc) <2%, Low Total Harmonic Distortion (Thd) <8% Dimming Range 3…100%
Additional Information:
IP20 equipment.
Driver for built-in use. Class I.
Dimming control by DALI interface.
Dimming range 3...100%.
PWM output dimming.
Regulation by Touch Dim.
Corridor function.
Stand-by ecological mode: consumption <0,4W.
Low Total Harmonic Distortion (THD) <8%.
High power factor.
Dynamic thermal protection.
Overload protection.
Short circuit protection.
Protection against no load operation.
Withstands 2 hours at 350V (AC).
Permitted input voltage AC/DC: 198-264V.
Rapid connector with fixing spring.
Conductor size 0,5 - 1,5 mm2.
Nominal lifetime at max. tc allowed: 50.000h.
Output ripple current (ORC) <2%.
Technical Characteristics:
| Ref. No. | Output power rangeW | Output currentsmA | Output voltage rangeVdc | Power factorλ | System efficiencyƞ (%) | Max. temp. at tc pointtc (ºC) | Operating temp.ta (ºC) |
| DLC 190/700-D-DALI | 9918147 | 45…90 | 700 | 64…129 | 0,98 | 91 | 75 |
| DLC 190/650-D-DALI | 9918146 | 42…84 | 650 | 64…129 | 0,98 | 91 | 75 |
| DLC 190/600-D-DALI | 9918145 | 39…77 | 600 | 64…129 | 0,98 | 91 | 75 |
| DLC 150/700-D-DALI | 9918137 | 33,5…50 | 700 | 48…72 | 0,98 | 89 | 75 |
| DLC 150/650-D-DALI | 9918134 | 26…47 | 650 | 39…72 | 0,98 | 89 | 75 |
| DLC 150/600-D-DALI | 9918136 | 24…43 | 600 | 39…72 | 0,98 | 89 | 75 |
| DLC 150/500-D-DALI | 9918138 | 28,5…50 | 500 | 57…100 | 0,98 | 90 | 75 |
| DLC 134/700-D-DALI | 9918140 | 25…34 | 700 | 36…48 | 0,96 | 84 | 75 |
| DLC 150/600-D-DALI | 9918136 | 24…43 | 600 | 39…72 | 0,98 | 89 | 75 |
| DLC 134/700-D-DALI | 9918140 | 25…34 | 700 | 36…48 | 0,96 | 84 | 75 |
| DLC 150/650-D-DALI | 9918134 | 26…47 | 650 | 39…72 | 0,98 | 89 | 75 |
| DLC 150/500-D-DALI | 9918138 | 28,5…50 | 500 | 57…100 | 0,98 | 90 | 75 |
| DLC 150/700-D-DALI | 9918137 | 33,5…50 | 700 | 48…72 | 0,98 | 89 | 75 |
| DLC 190/600-D-DALI | 9918145 | 39…77 | 600 | 64…129 | 0,98 | 91 | 75 |
| DLC 190/650-D-DALI | 9918146 | 42…84 | 650 | 64…129 | 0,98 | 91 | 75 |
| DLC 190/700-D-DALI | 9918147 | 45…90 | 700 | 64…129 | 0,98 | 91 | 75 |
