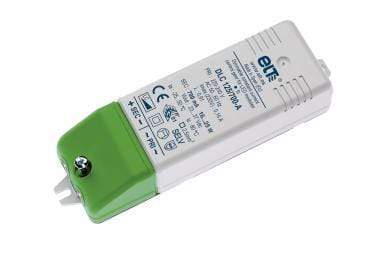

ELT DLC-A Constant Current Dimmable Driver |Delight.com.sg
ELT DLC-A Constant Current Dimmable Driver |Delight.com.sg
SKU SKU:9918232
Regular price
$21.00 USD
Regular price
$23.00 USD
Sale price
$21.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Class II Electrical Protection, High Power Factor, Overload Protection, Short Circuit Protection, Trailing and Leading Edge Dimming.
Additional Information:
IP20 equipment.
Class II electrical protection.
Indoor use.
Equipped with terminal cover and cable clamps.
Clamping screws on primary and secondary circuits for wires with diameter: 3 mm to 8 mm.
Max. terminal section area 2,5 mm². (secondary circuit).
High power factor.
Overload protection.
Short circuit protection
Protection against no load operation.
Permitted input voltage AC: 198-264V.
Allowed dimmers:
- Trailing-edge and leading-edge dimming.
- Dimming 5% - 100%.
Nominal lifetime at max. tc allowed: 50.000h.
Technical Characteristics:
| Ref. No. | Output power rangeW | Output currentsmA | Output voltage rangeVdc | Power factorλ | System efficiencyƞ (%) | Max. temp. at tc pointtc (ºC) | Operating temp.ta (ºC) | |
| DLC 116/350-A | 9918232 | 10…16 | 350 | 29…46 | 0,85 | 85 | 75 | -25…+50 |
| DLC 116/500-A | 9918233 | 10…16 | 500 | 20…32 | 0,85 | 85 | 85 | -25…+50 |
| DLC 116/700-A | 9918236 | 10…16 | 700 | 14…23 | 0,85 | 85 | 75 | -25…+50 |
| DLC 120/1050-A | 9918247 | 10…20 | 1050 | 10…19 | 0,92 | 85 | 80 | -25…+50 |
| DLC 125/350-A | 9918252 | 16…25 | 350 | 45…72 | 0,93 | 85 | 75 | -25…+50 |
| DLC 125/500-A | 9918253 | 16…25 | 500 | 32…50 | 0,94 | 85 | 85 | -25…+50 |
| DLC 125/700-A | 9918256 | 16…25 | 700 | 23…37 | 0,91 | 85 | 80 | -25…+50 |
