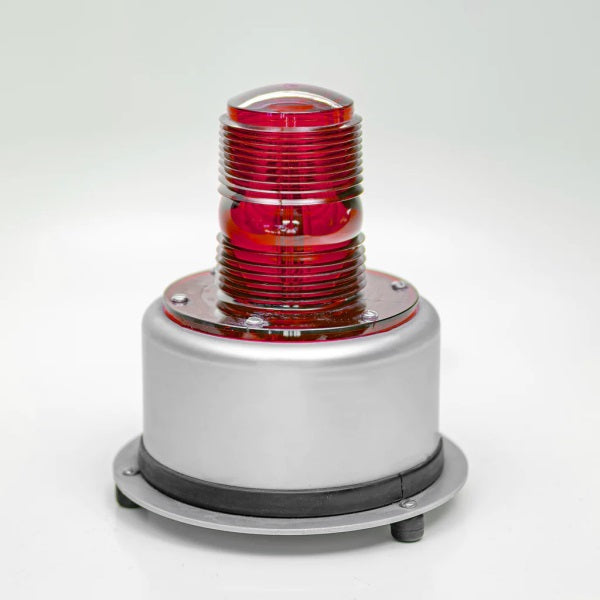

Tomar 700 MINI STROBE Single Flash Warning Light

Technical Information:

Datasheet

Description:

Lead time 2-3 weeks ARO.

ORDERS ARE NON-CANCELLABLE, NON-RETURNABLE

The model 700 MINI STROBE family is a single flash heavy duty strobe light featuring an all aluminum housing, flange mounting, 360° Lexan® lens, high efficiency regulated solid state power supply and a plug-in field replaceable heavy duty xenon strobe lamp. The 700–1274 will operate over 12–74VDC without making any changes or adjustments. DC models are UL component recognized for use on type E, EE, and ES electric industrial trucks covered by UL standard #583.

Features:
• aluminum housing
• heavy duty construction
• solid state power supply
• 10,000 hour strobe lamp
• two year warranty on power supply
• one year warranty on lamp
• available in six lens colors
• UL recognized (DC models only)
• NEMA 3R
• available in 120 VDC

Spacification:

-Flash Rate : 80 to 95 flashes per minute
-Light Output : 185 effective candlepower (ECP)*
-Voltage and Amperage : 12-74VDC draws 1.25 A average @ 12VDC tapering to draws                                              0.2A average @ 74VDC
                                          120VAC draws 0.17A average
                                          120VDC draws 0.1A average
                                           240VAC draws 0.12A average
-Power Supply Output 11 Watts : 8 joules per flash. 800,000 Peak Candlepower
-Size and Weight : 6” tall x 4.7” dia. x 1.3 lbs ( 152mm x 119mm x 0.58kg )
