[China] LTECH DALI Constant Voltage Tunable White NFC Full Instruction Programmable Rubycon Driver x4Pcs

***Ships from China - 2 to 3 weeks lead time***

DALI CV Tunable White  Driver NFC full instruction programmable Rubycon

Description:

• Datasheet for LM-75-24-G2D2F
• Datasheet for LM-100-24-G2D2F
• Datasheet for LM-150-24-G2D2F

LM-75-24-G2D2F/ LM-100-24-G2D2F:

• Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
• Screwless wire-pressing flip cover design, with detachable end caps. The length of the shell can be adjusted as needed.
• Supports full-command NFC fast programming, allowing configuration via mobile app. Users can modify dimming mode, brightness range, DALI templates, and other settings through NFC, enabling data interaction with the driver.
• Provides two-channel independent SELV outputs.
• Supports DALI-2 DT6/DT8, PUSH DIM/CCT, and corridor light DIM/CCT
  modes.
• Compatible with L-Data and DALI Part 251, 252, 253.
• Constant power design ensures consistent brightness when adjusting different color temperatures
• Supports deep dimming from 0–100%, with a minimum dimming
  level of 0.01%.
• Color temperature range can be set from 1000K to 10000K, with a default range of 2700K to 6500K.
• Supports Over-the-Air (OTA) online firmware updates for devices.
• Complies with the EU ERP Directive on energy efficiency, with
  no-load power consumption < 0.5W and network standby power
  consumption < 0.5W. Innovative thermal management technology for intelligent protection of power supply lifespan.
• Overheat, over voltage, overload, short circuit protection and automatic recovery.
• Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
• Normal service life can reach 100,000 hours.
• 5-year warranty (Rubycon capacitor).

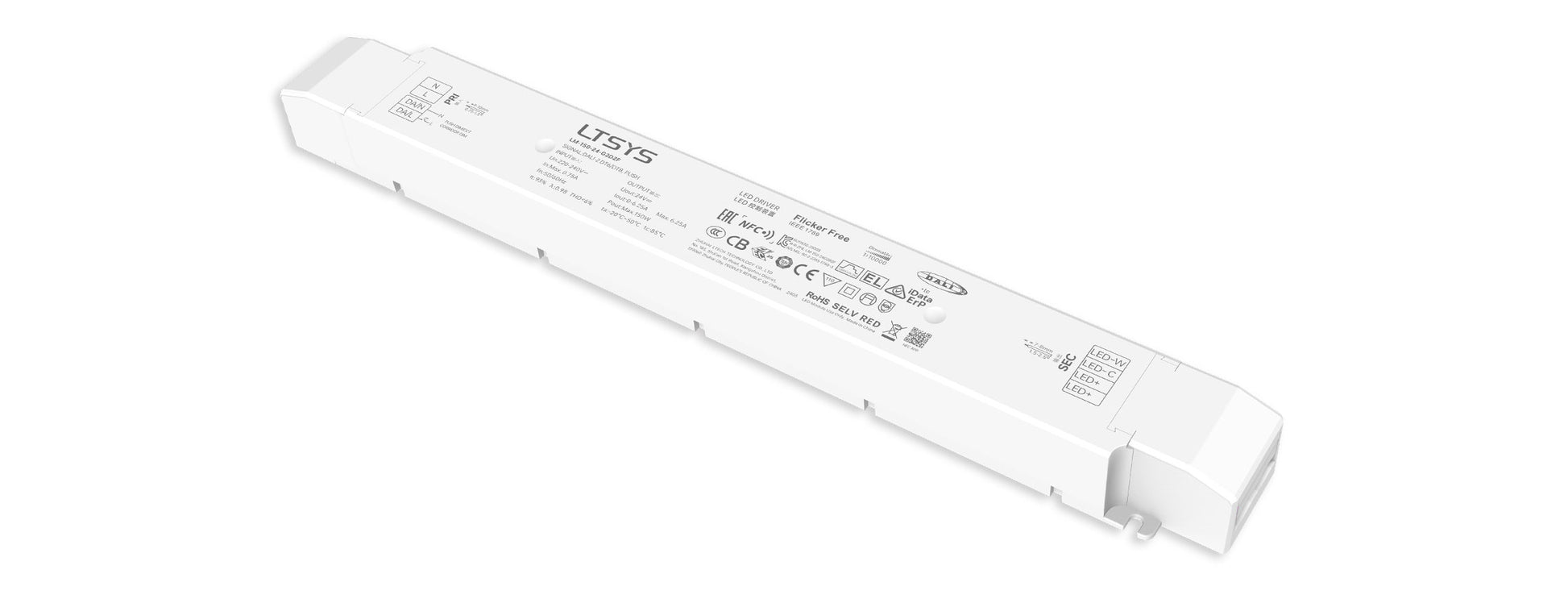

LM-150-24-G2D2F:

• The housing is made of V0 flame-retardant PC material, sourced from
  SAMSUNG/COVESTRO.
• Features a tool-free clamshell design with detachable end caps, allowing
  length adjustment as needed.
• Dimming mode, brightness range, and DALI configuration templates can
  be set via NFC using the mobile app.
• Provides two-channel independent SELV outputs.
• Supports DALI-2 DT6/DT8, Push DIM/CCT, and corridor light DIM/CCT modes.
• Compatible with i-Data and DALI Part 251, 252, 253.
• Constant power design ensures consistent brightness across color temperature adjustments.
• Supports deep dimming from 0–100%, with a minimum dimming level
  of 0.01%.
• Color temperature range is configurable from 1000K to 10000K, with a
  default range of 2700K to 6500K.
• High-efficiency driver with 93% efficiency, power factor > 0.98, and THD < 6%.
• n compliance with the EU ERP Directive, standby power consumption is below 0.5W.
• Equipped with an advanced thermal management system to protect
  internal components.
• Includes protections against overheating, overload, short circuit, and open circuit.
• Suitable for Class I / II / III indoor luminaires.
• Designed for a service life exceeding 100,000 hours under normal operating conditions.
• 5-year warranty (Rubycon capacitor).

Certificates:  CCC,CE,RED,ROHS,CB,TUV,ENEC,RCM,EAC,EL,DALI-2
