[China] LTECH Constant Voltage Triac Dimmable Rubycon LED Driver

[China] LTECH Constant Voltage Triac Dimmable Rubycon LED Driver

LM-36-12-G1T2

URL Datasheet

URL Datasheet 2

$ 420.00 SGD
$ 458.00 SGD $ 420.00 SGD
Sale Sold out
Shipping calculated at checkout.
Power
Voltage
Quantity

Request For Quote

***Ships from China - 2 to 3 weeks lead time***
Technical Details:

Product Details:

  • LED Intelligent Driver (CV)
  • Leading-edge (TRIAC), Trailing edge (ELV) phase-cut, and Push DIM.
  • With soft-on and fade-in function, visual more comfortable.
  • Dimming range:0~100%, LED start at 0.1%possible.
  • 0-100% flicker-free, High-frequency exemption level.
  • High Efficient driver: efficiency 88%, PF>0.98, THD<6%
  • Innovative thermal management technology, intelligent power life protection.
  • Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
  • Suitable for internal lights application for I/II/III.
  • Upto50000-hour lifetime.
  • 5 years warranty (Rubycon capacitor).

LM-36-12-G1T2   Warranty: 5 year
Certificate: CCC,EU ERP,ROHS,CB,TUV,ENEC,CE,BIS,EAC,SELV,RCMCCC

Rubycon capacitor
Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
Input Voltage: 200-240Vdc
Power Factor:  PF>0.95/230Vac , at full load
Efficiency: 84%
Fluctuation Level: High frequency exemption level.
Output Voltage: 12Vdc
Output Current: Max. 3A
Output Power: 0~36W
Dimming Range: 0~100%, dimming down to 0.1%
Certification: CCC,BIS,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS,ERP
Warranty: 5 years

LM-36-24-G1T2  Warranty: 5 year
Certificate: CCC,EU ERP,ROHS,CB,TUV,ENEC,CE,RCM,BIS,EAC,KC,SELV

Rubycon capacitor
Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
Input Voltage: 200-240Vdc
Power Factor:  PF>0.95/230Vac , at full load
Efficiency: 85%
Fluctuation Level: High frequency exemption level.
Output Voltage: 24Vdc
Output Current: Max. 1.5A
Output Power: 0~36W
Dimming Range: 0~100%, down to 0.1%
Certification: CCC,BIS,TUV,CE,KC,RCM,CB,EAC,UKCA,ROHS,ERP
Warranty: 5 years

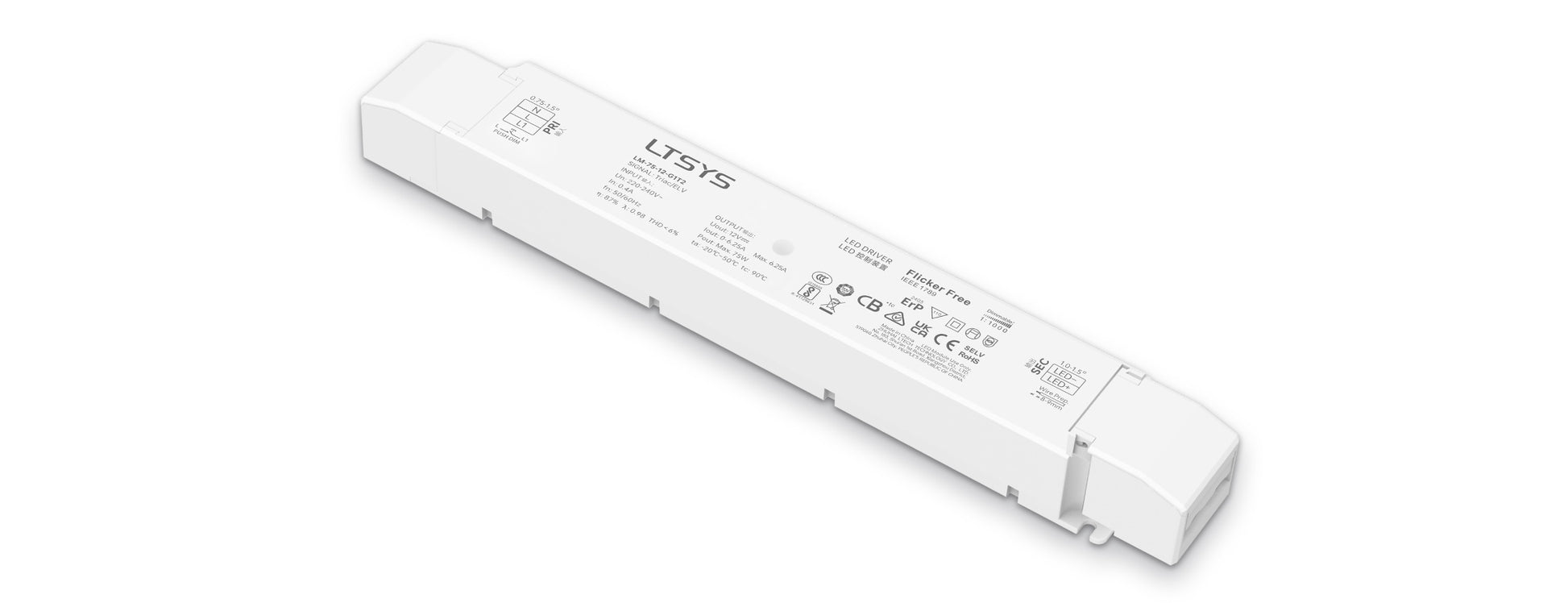

LM-75-12-G1T2 Warranty 5 year
Certificate: CCC,EU ERP,ROHS,CB,TUV,ENEC,CE,UKCA,RCM,BIS,SELV

Rubycon capacitor
Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
Input Voltage: 220-240Vac
Power Factor:  PF>0.98/230Vac , at full load
Efficiency: 87%
Fluctuation Level: High frequency exemption level.
Output Voltage: 12Vdc
Output Current: Max. 6.25A
Output Power: 0~75W
Dimming Range: 0~100%, dimming depth: Max. 0.1%
Certification: CCC,BIS,TUV,CE,KC,RCM,CB,EAC,UKCA,ROHS,ERP
Warranty: 5 years

LM-75-24-G1T2 Warranty: 5 Year

Certificate: CCC,EU ERP,ROHS,CB,TUV,ENEC,CE,UKCA,RCM,BIS,EAC,KC,SELV

Rubycon capacitor
Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
Input Voltage: 220-240Vac
Power Factor:  PF>0.98/230Vac , at full load
Efficiency: 88%
Fluctuation Level: High frequency exemption level.
Output Voltage: 24Vdc
Output Current: Max. 3.125A
Output Power: 0~75W
Dimming Range: 0~100%, dimming depth: Max. 0.1%
Certification: CCC,BIS,TUV,CE,KC,RCM,CB,EAC,UKCA,ROHS,ERP
Warranty: 5 years
