[China] Ltech Dali-2 Constant Current Dimmable NFC Full Instruction Programmable Rubycon Driver

** Ships From China, Lead Time 2-3 Weeks**

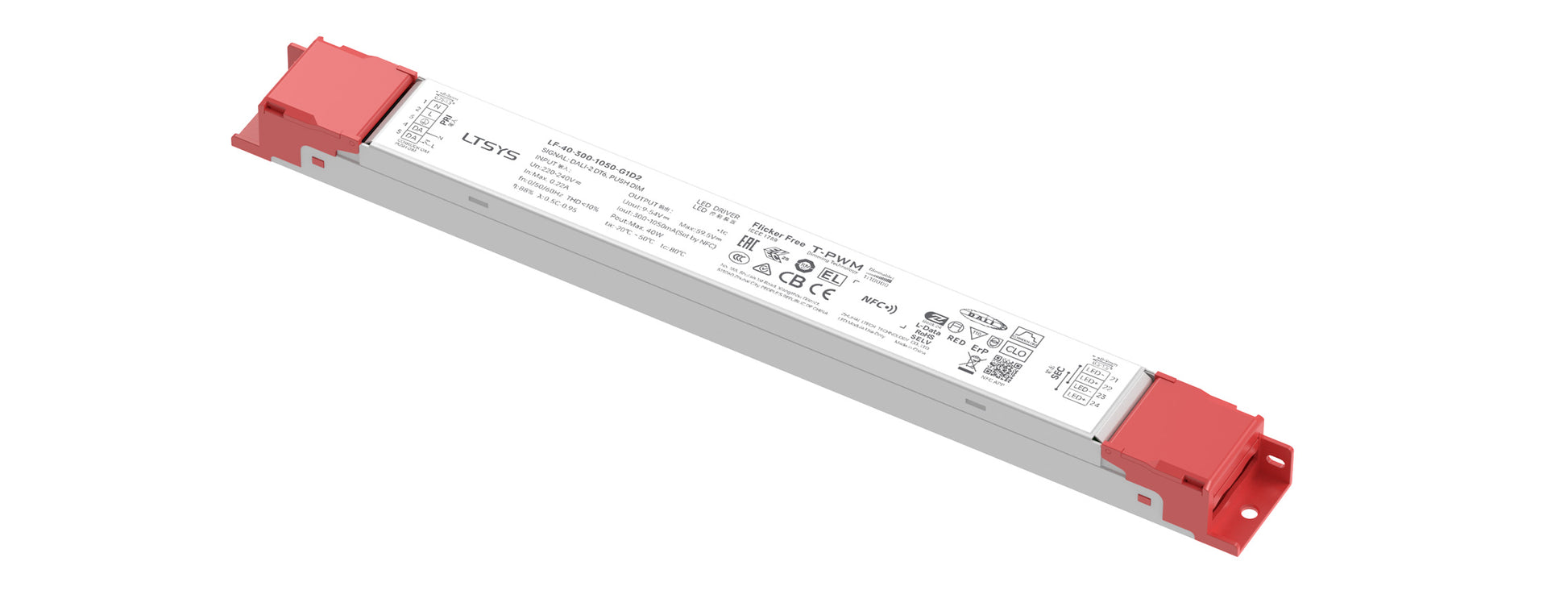

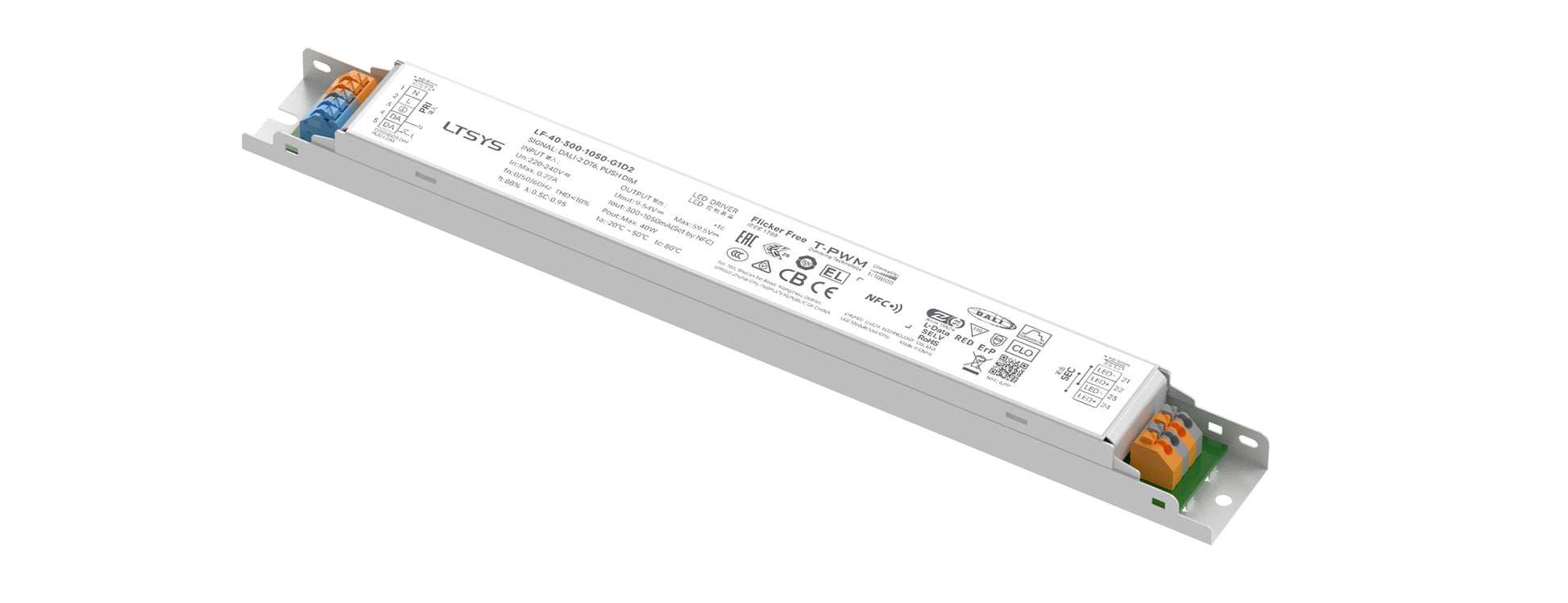

• Datasheet for LF-40-300-1050-G1D2

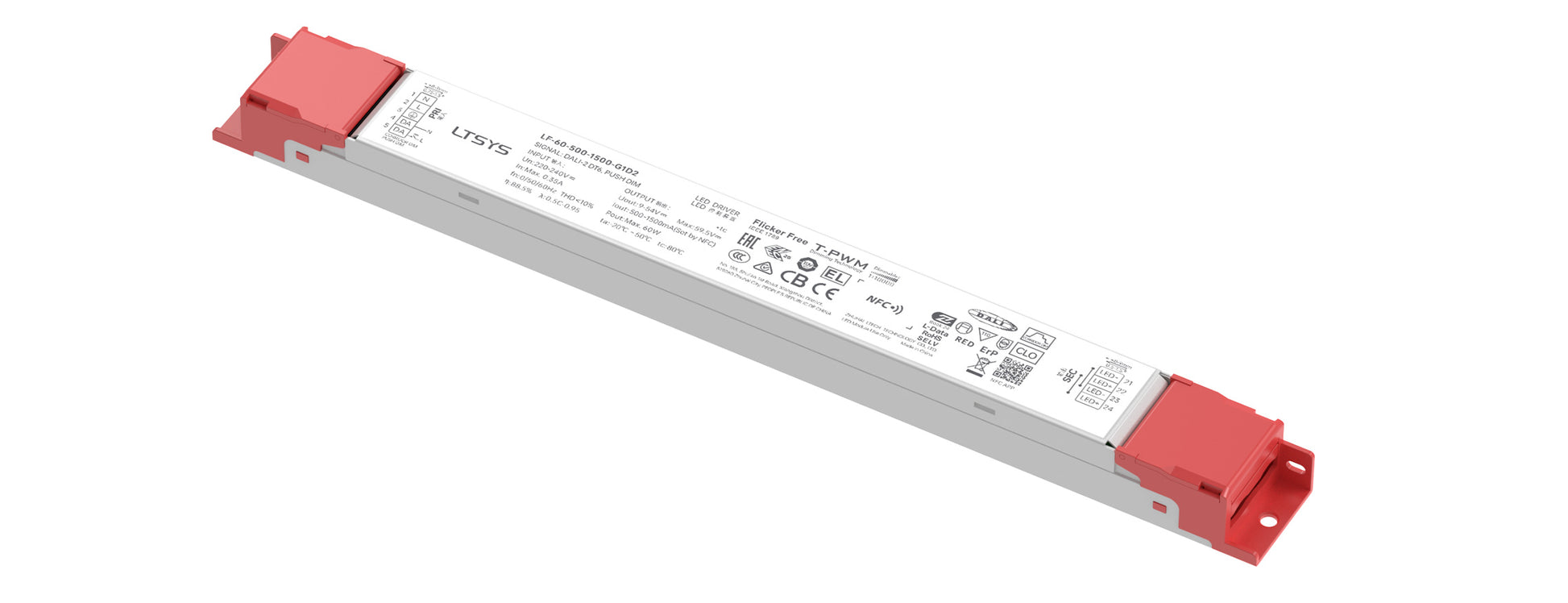

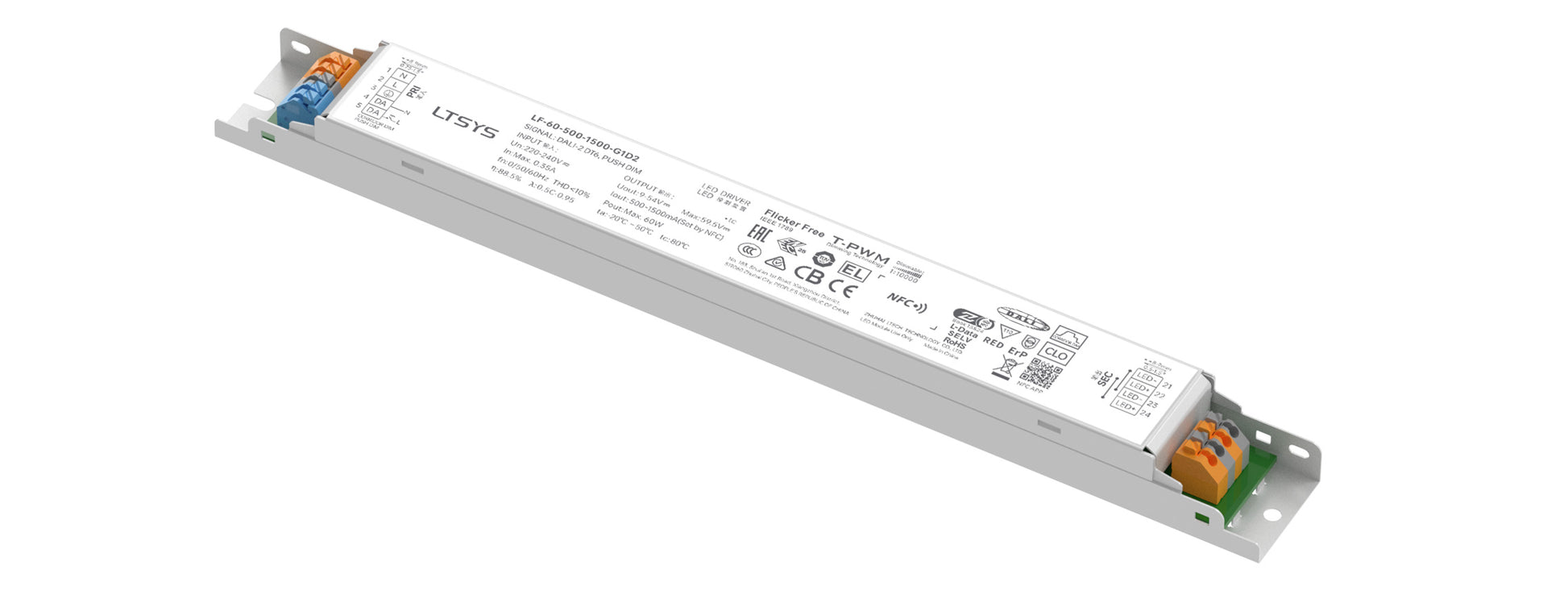

• Datasheet for LF-60-500-1500-G1D2

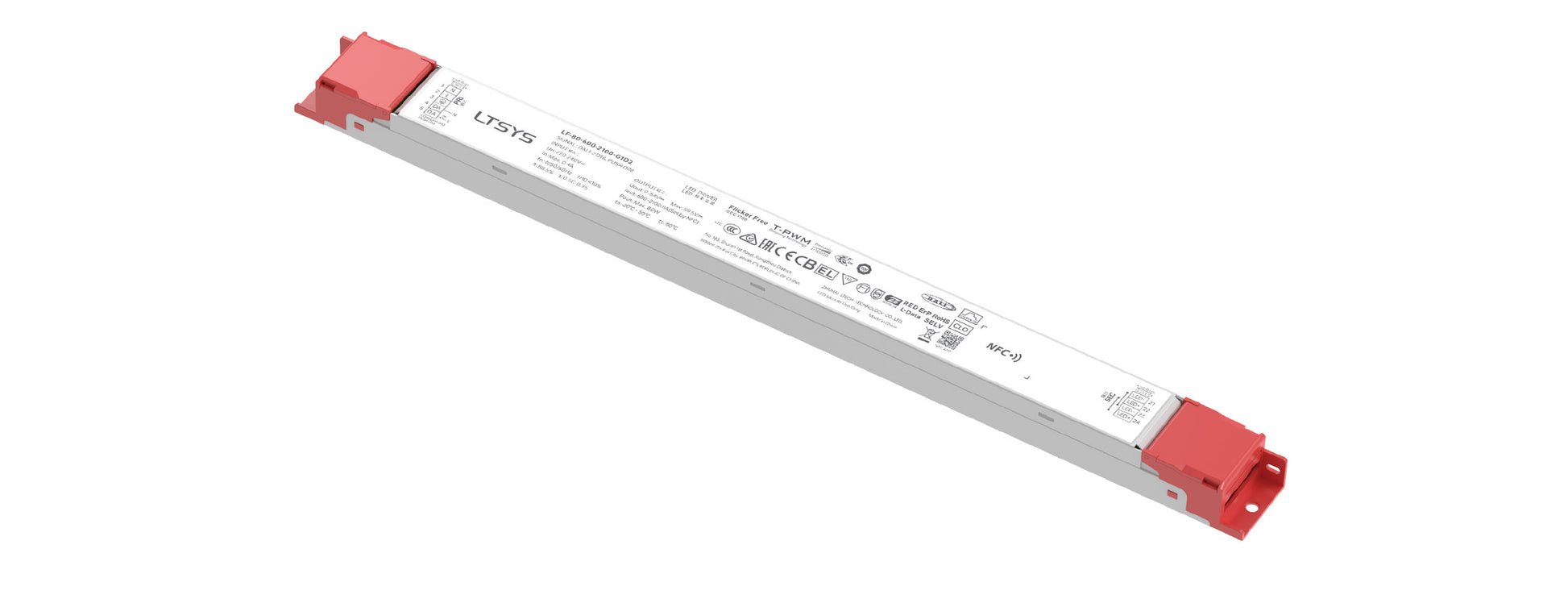

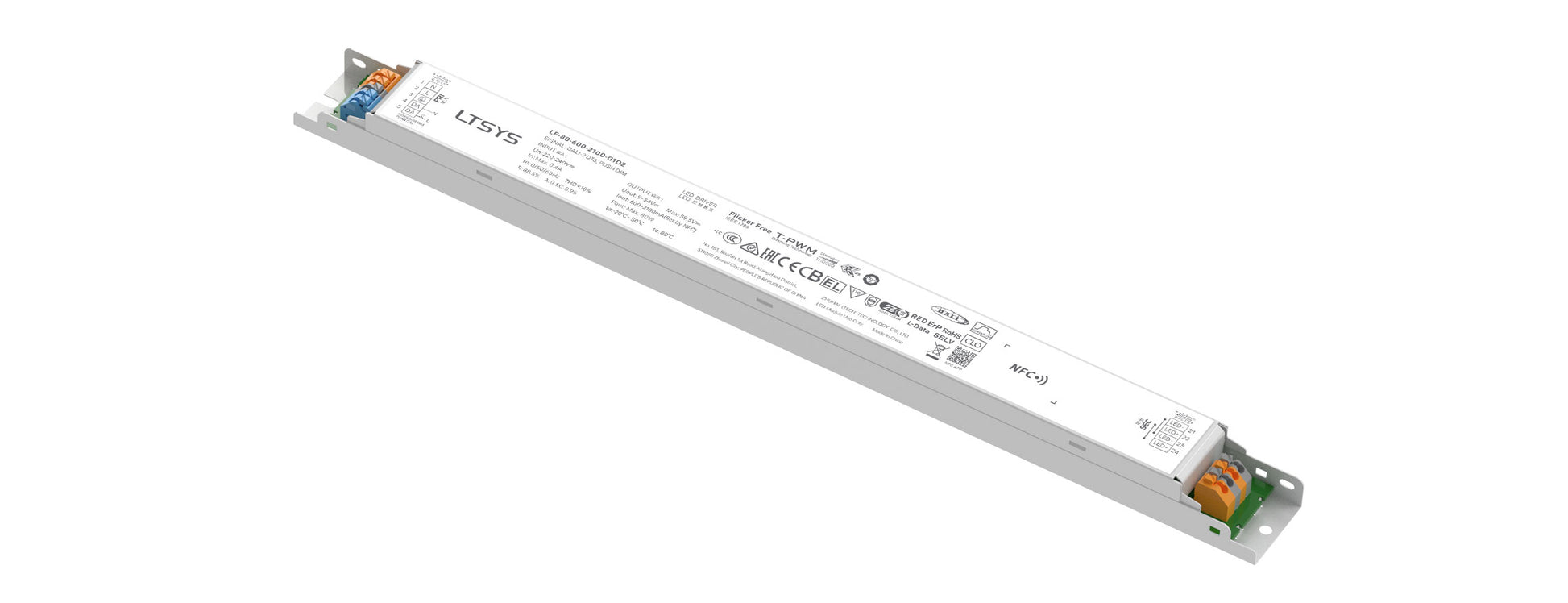

• Datasheet for LF-80-600-2100-G1D2

Description:

• Slim metal housing.
• Overall design complies with Zhaga standards: built-in models meet Zhaga Book 13
  and Book 24 specifications, while standalone models meet Zhaga Book 24 requirements.
• Supports DALI-2 DT6/DT8, PUSH DIM/CCT, and corridor lighting dimming/color temperature adjustment.
• Supports full-command NFC rapid programming, enabling users to modify output
  current, DALI address, and other parameters via a mobile app using NFC, thereby
  achieving driver data interaction functionality.
• Supports L-Data functionality, enabling access to DALI Part 251 (luminaire data query),
  Part 252 (energy report reading), and Part 253 (diagnostic and maintenance data
  reading) via the DALI master controller, providing robust data support for intelligent
  management platforms.
• NFC settings feature current step values as low as 1mA, delivering enhanced
  compatibility and Finer control.
• T-PWM ultra-deep dimming technology achieving 0.01% dimming depth.
• 0-100% full-range dimming with zero visible Flicker, meeting high-frequency
  exemption standards.
• Features soft-start gradual brightening for enhanced visual comfort.
• Supports CLO light decay compensation to ensure consistent illumination brightness.
• Supports EL emergency lights; in DC emergency mode, the current defaults to 15%.
• Supports wired Firmware upgrades for devices.
• EU ERP no-load power consumption and network standby power consumption < 0.5W.
• 0V output at no load to prevent LED 􀅤xture damage from poor contact.
• Over-temperature, over-voltage, overload, and short-circuit protection
  with automatic recovery.
• Suitable for indoor Class I, II, and III luminaires, such as linear lights, triple-proof lights, Floor lamps, bracket lights, and other linear or ultra-thin Fixtures.
• Lifespan up to 100,000 hours under normal use. 5-year warranty.
