[China] LTECH 0-10V Dimmable Consant Current NFC Full Instruction Programmable Rubycon LED Driver

** Ships from China, Lead Time 2-3 Weeks**

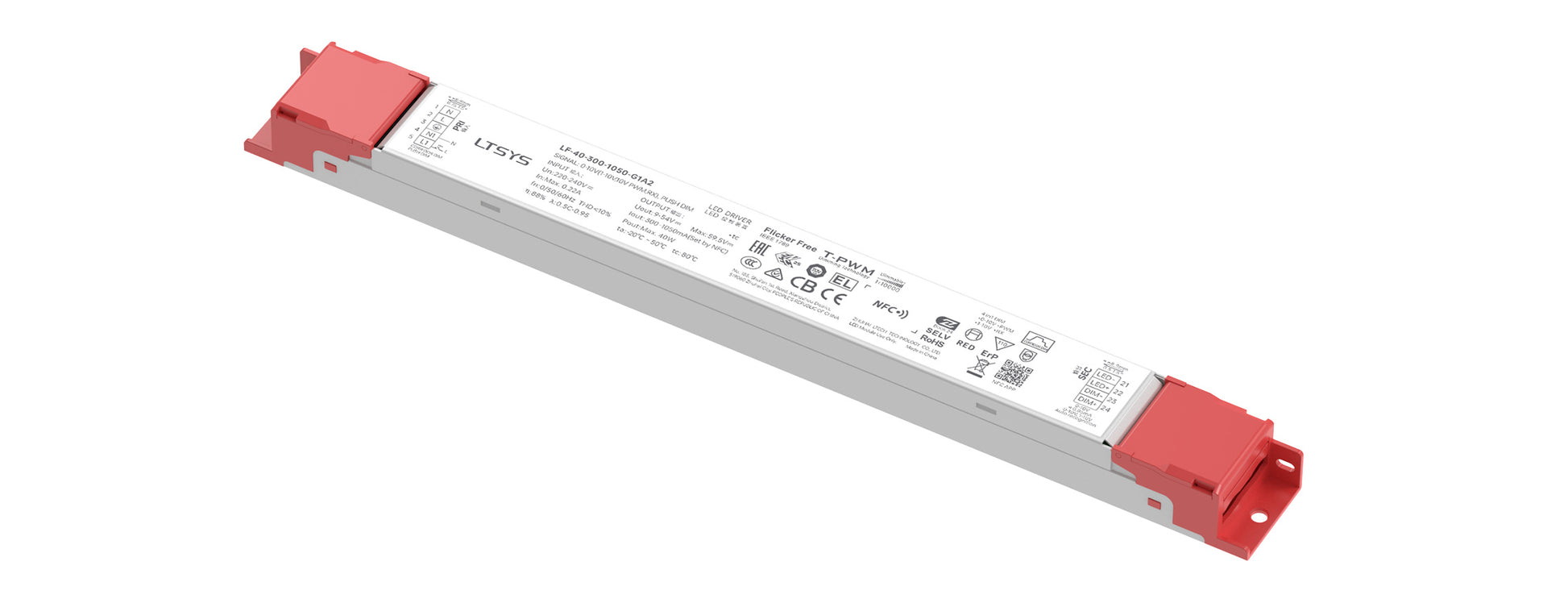

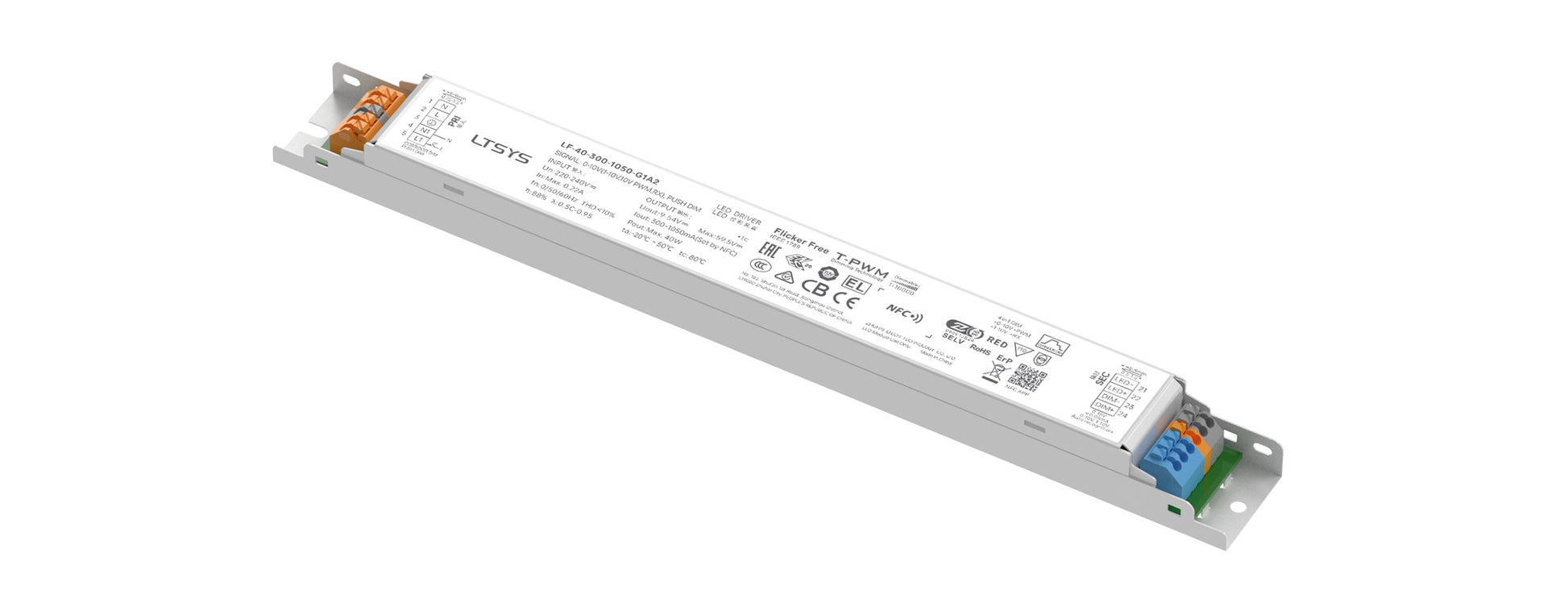

• Datasheet for LF-40-300-1050-G1A2

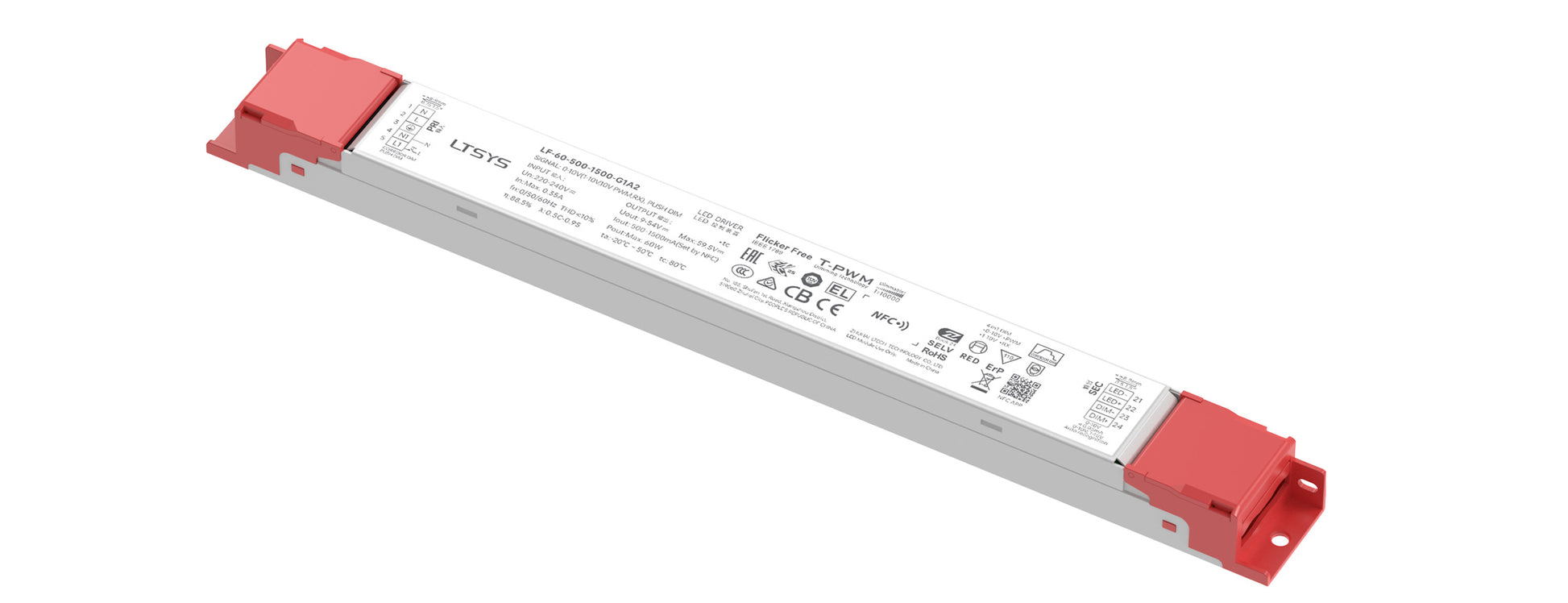

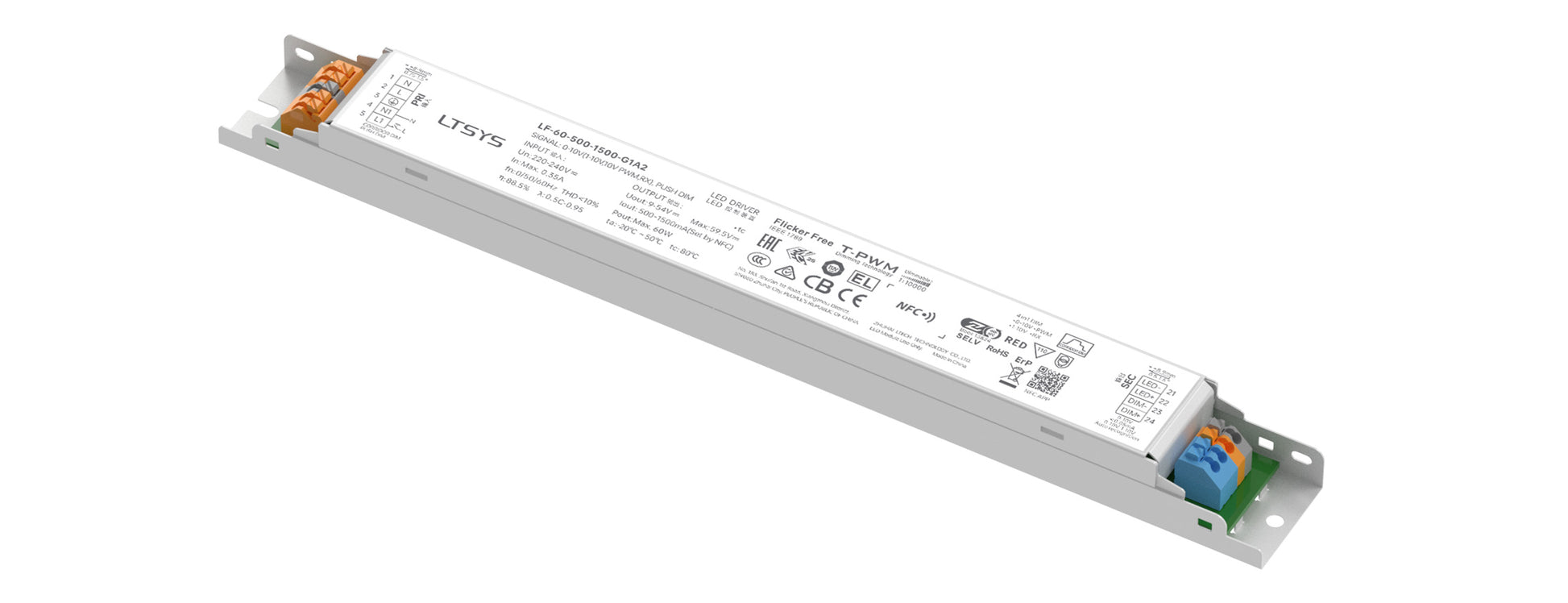

• Datasheet for LF-60-500-1500-G1A2

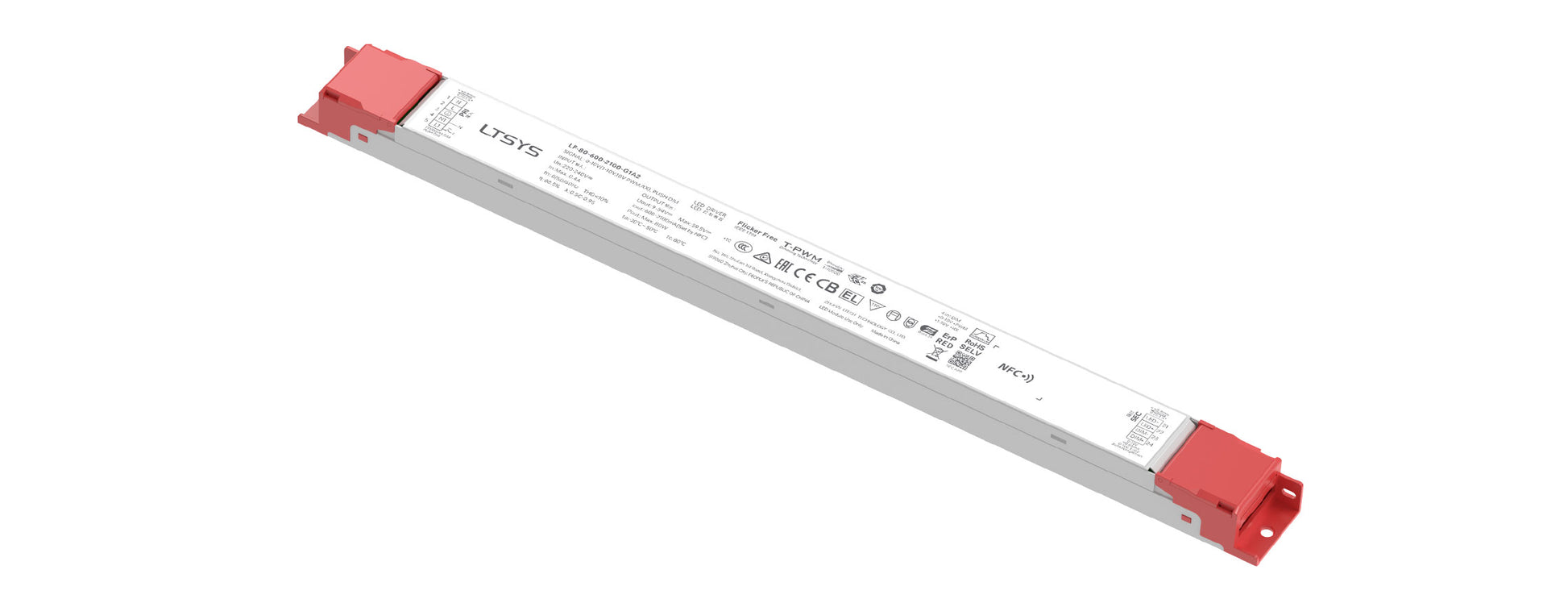

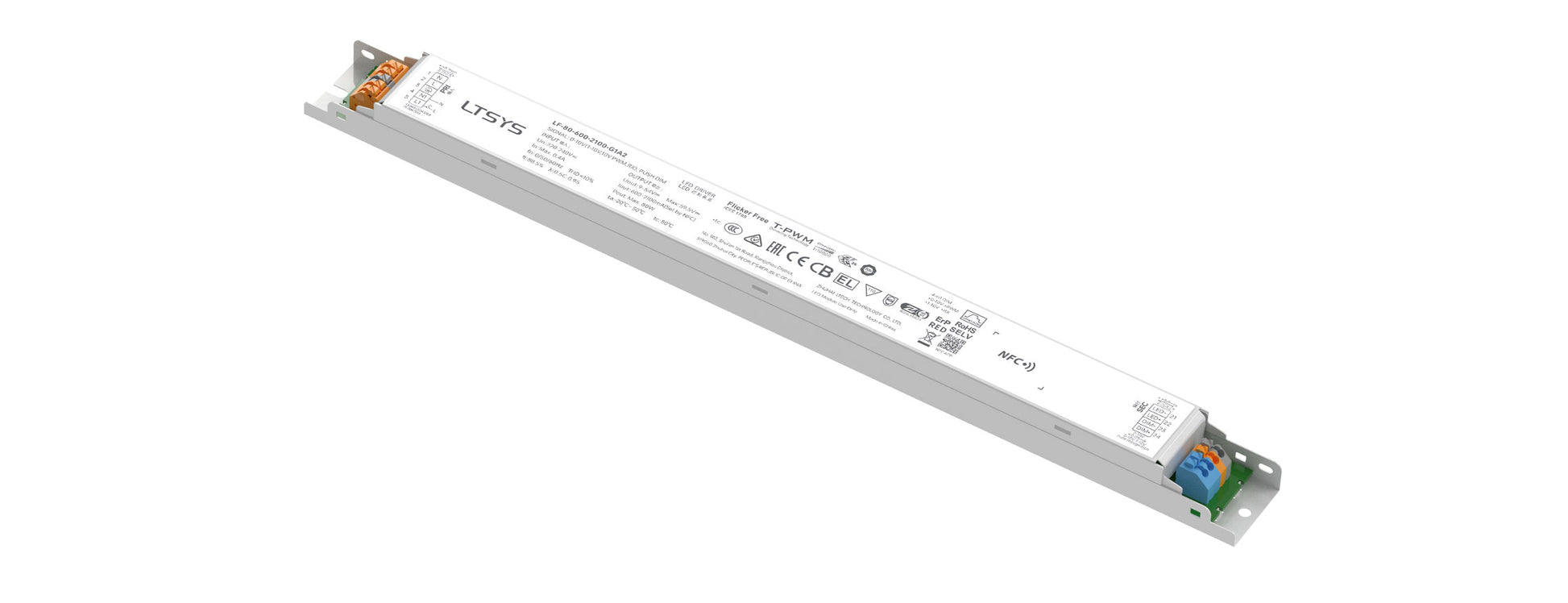

• Datasheet for LF-80-600-2100-G1A2

Description:

• Slim metal housing;
• Overall design complies with Zhaga standards: built-in models meet Zhaga Book 13 and Book 24 specifications, while standalone models meet Zhaga Book 24 requirements;
• Supports 0-10V, PUSH DIM, and corridor lighting dimming;
• Supports NFC rapid programming, enabling smartphone app control via NFC to adjust output current, dimming modes, and other parameters for driver data interaction.
• NFC current setting with step increments as low as 1mA for enhanced compatibility and precision.
• Ultra-low 0-10V port consumption <0.05mA;
• T-PWM ultra-deep dimming technology achieving 0.01% dimming depth;
• 0-100% full-range dimming with zero visible Flicker, meeting high-frequency exemption standards;
• Features soft-start gradual brightening for enhanced visual comfort;
• EU ERP compliance: no-load power consumption and network standby
  power <0.5W;
• 0V output at no load to prevent LED Fixture damage from poor contact;
• Over-temperature, over-voltage, overload, and short-circuit protection
  with automatic recovery;
• Suitable for indoor Class I, II, and III luminaires, such as linear lights, triple-proof lights, Floor lamps, bracket lights, and other linear or ultra-thin Fixtures;
• Lifespan up to 100,000 hours under normal use;
• 5-year warranty.

Certificate: CCC,CB,TUV,ENEC,TUV-CE,ROHS,RED,RCM,EAC,EL,zhaga,DALI-2,EU ERP
