Euchips EUP Series TRIAC Constant Voltage Dimming Driver x10Pcs
Euchips EUP Series TRIAC Constant Voltage Dimming Driver x10Pcs
SKU SKU:104200021101
Regular price
$ 375.00 SGD
Regular price
$ 375.00 SGD
Sale price
$ 375.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Technical Details
Model No:104200011201
Description:
EUP24T-1H24V-0 is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens, Dalitek etc.) to achieve a smooth dimming effect.
Features
1. Single channel constant voltage output,1A Max
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Dimming range from 40VAC to 240VAC
4. Class 2 power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over temperature
7. Suitable for constant voltage LED lighting application, such as LED strip, wall washer, in-Ground lamps, flood light, and so on
Technical Parameter
EUP24T-1H24V-0
| Model | EUP24T-1H24V-0 | ||
| Input | Efficiency | 83%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC, Full load | ||
| THD | <20%@230VAC, Full load | ||
| Current | 0.15Amax@230VAC, Full load | ||
| Inrush Current | Cold start, 15A(twidth=60us measured at 50% Ipeak@230VAC | ||
| Output | Current/Voltage/Power | 1A/24VDC/24W | |
| Channel | 1 | ||
| Voltage Tolerance | ±3% | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Over temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed. | ||
| Over Load | When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced. | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 150g±5%/PCS; 50PCS/Carton; 8kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H) | ||
| Dimension | 150*43*29mm(L*W*H) | ||

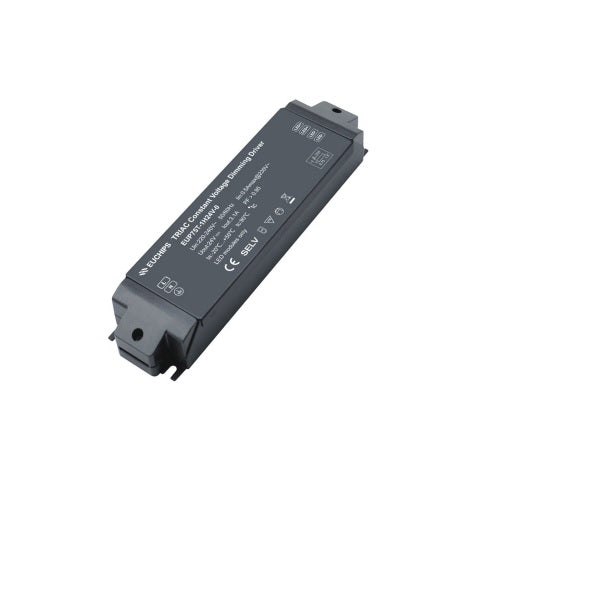

EUP75T-1H24V-0
| Model | EUP75T-1H24V-0 | ||
| Input | Efficiency | 86%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | >0.95@230VAC, Full load | ||
| Current | 0.5Amax@230VAC, Full load | ||
| Dimming Voltage Range | 40-240VAC | ||
| Inrush Current | Cold start, 18.2A(twidth=700us measured at 50% Ipeak@230VAC | ||
| Output | Current/Voltage/Power | 3.1A/24VDC/75W | |
| Ripple Current | 200mVp-p | ||
| Channel | 1 | ||
| Current Tolerance | ±3% | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Over temperature | Shut down and auto-restart after normal temperature | |
| Over current | Hiccup, recovers after fault condition is removed | ||
| Short Circuit | Close the output, restart to recover since fault condition is removed for 10s | ||
| Over voltage | Hiccup, recovers after fault condition is removed | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | Metal | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 460g±5%/PCS; 20PCS/Carton; 10.5kg±5%/Carton; Carton Size: 254*233*219mm(L*W*H) | ||
| Dimension | 213*54*33mm(L*W*H) | ||

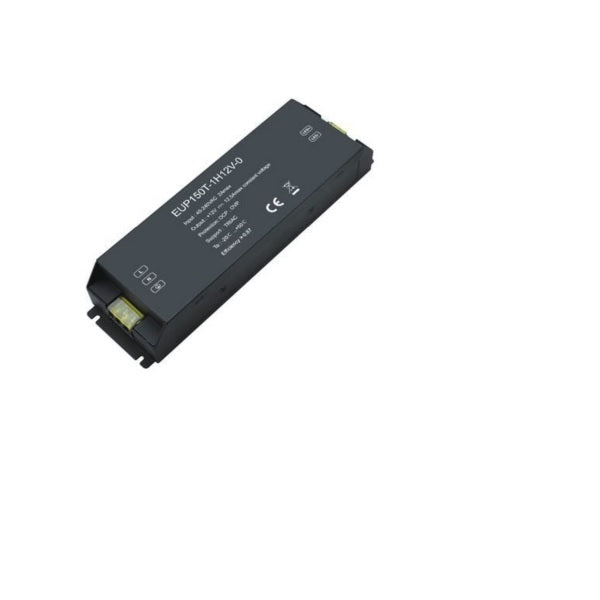

EUP150T-1H12V-0
| Model | EUP150T-1H12V-0 | ||
| Input | Efficiency | 87%(Typical) | |
| Voltage | 200VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | / | ||
| Current | 2A@230VAC | ||
| Dimming voltage range | 40-240VAC | ||
| Inrush Current | 45A@230VAC | ||
| Output | Current/Voltage/Power | 12.5A/12VDC/150W | |
| Ripple Current | 200mVp-p | ||
| Channel | 1 | ||
| Voltage Tolerance | ±3% | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Dimming Range | 1-100% Dimming to off | ||
| Protection | Over Power | Limit the output power to 110% - 150% of the rated power | |
| Short Circuit | Close the output, restart to recover since fault condition is removed for 10s | ||
| Over voltage | Hiccup, recovers after fault condition is removed | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | Metal | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 842g±5%/PCS; 20PCS/Carton; 18kg±5%/Carton; Carton Size: 367*292*289mm(L*W*H) | ||
| Dimension | 260*78.3*45mm(L*W*H) | ||

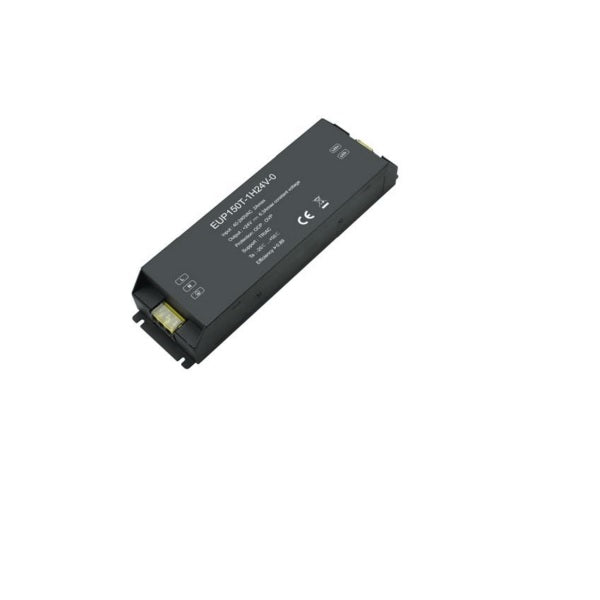

EUP150T-1H24V-0
| Model | EUP150T-1H24V-0 | |
| Output | Channels | 1 |
| Voltage | 24VDC | |
| Current | 6.3A | |
| Power | 151.2W | |
| Voltage Accuracy | ±3% | |
| R & N (Max) | 200mVp-p | |
| Input | Voltage | 200VAC – 240VAC |
| Frequency | 50/60Hz | |
| Dimming Voltage Range | 40-240VAC | |
| Efficiency(Typ) | 89% | |
| Current | 2A@230VAC | |
| Inrush Current | 45A@230VAC | |
| Protection | Short Circuit | Close the output, restart to recover since fault condition is removed for 10s |
| Over Voltage | Hiccup, recovers after fault condition is removed | |
| Over Power | Limit the power to 110%-150% of rated output power | |
| Functio | Dimming Mode | Triac/ELV |
| Others | Dimension | 260*78.3*45 mm（L*W*H） |
| Packing Size | 367*292*289mm,20pcs/18kg/carton | |
| G.W. | 842g | |
| Working temp. | -20℃ ~ 50℃ | |
| Relative humidity | 20~90% RH | |

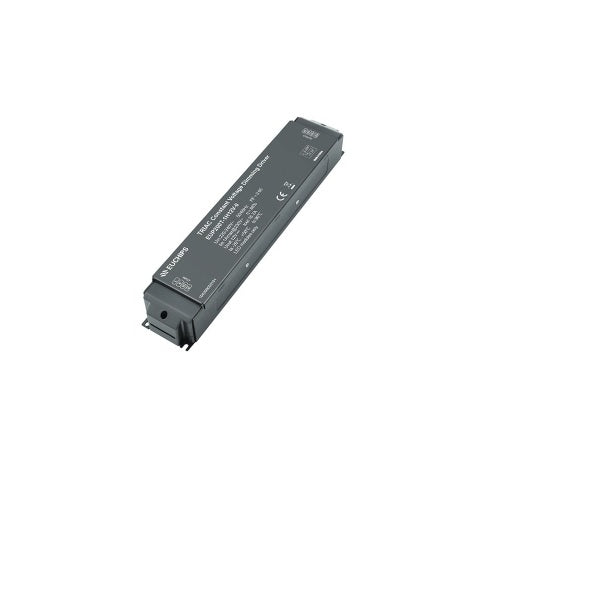

EUP200T-1H12V-0
| Model | EUP200T-1H12V-0 | ||
| Input | Efficiency | 88%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | >0.95@230VAC, Full load | ||
| Current | 1Amax@230VAC, Full load | ||
| Dimming voltage range | 40-240VAC | ||
| Inrush Current | Cold start, 26A(twidth=680us measured at 50% Ipeak)@230VAC | ||
| Output | Current/Voltage/Power | 16.7A/12VDC/200W | |
| Ripple Current | 200mVp-p | ||
| Channel | 1 | ||
| Current Tolerance | ±3% | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Dimming Range | 1-100% Dimming to off | ||
| Protection | Over temperature | Shut down and auto-restart after normal temperature | |
| Over current | Hiccup, recovers after fault condition is removed | ||
| Short Circuit | Close the output, restart to recover since fault condition is removed for 10s | ||
| Over voltage | Hiccup, recovers after fault condition is removed | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 842g±5%/PCS; 10PCS/Carton; 10.5kg±5%/Carton; Carton Size: 319*254*151mm(L*W*H) | ||
| Dimension | 310*60*45mm(L*W*H) | ||
EUP200T-1H24V-0
| Model | EUP200T-1H24V-0 | ||
| Input | Efficiency | 92%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | >0.95@230VAC, Full load | ||
| Current | 1Amax@230VAC, Full load | ||
| Dimming voltage range | 40-240VAC | ||
| Inrush Current | Cold start, 26.2A(twidth=700us measured at 50% Ipeak)@230VAC | ||
| Output | Current/Voltage/Power | 8.3A/24VDC/200W | |
| Ripple Current | 400mVp-p | ||
| Channel | 1 | ||
| Current Tolerance | ±3% | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Dimming Range | 1-100% Dimming to off | ||
| Protection | Over temperature | Shut down and auto-restart after normal temperature | |
| Over current | Hiccup, recovers after fault condition is removed | ||
| Short Circuit | Close the output, restart to recover since fault condition is removed for 10s | ||
| Over voltage | Hiccup, recovers after fault condition is removed | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 842g±5%/PCS; 10PCS/Carton; 10.5kg±5%/Carton; Carton Size: 319*254*151mm(L*W*H) | ||
| Dimension | 310*60*45mm(L*W*H) | ||
