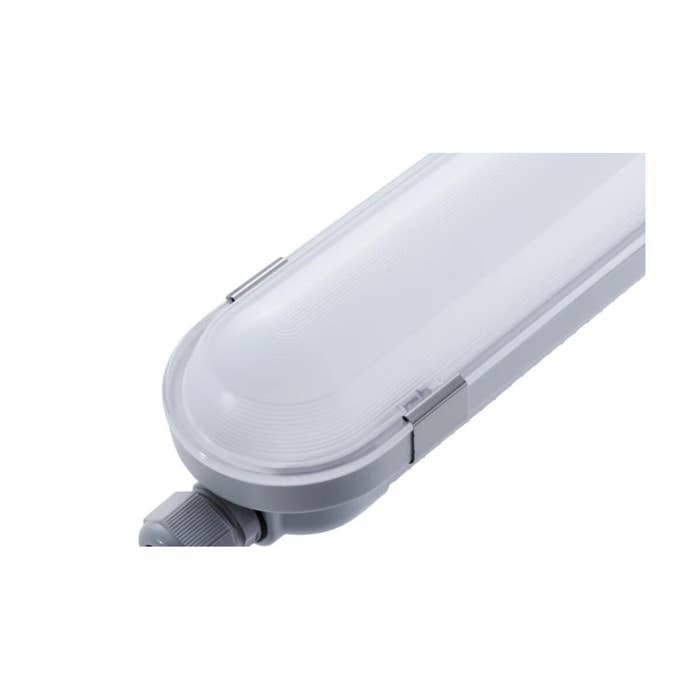

Philips GreenPerform Waterproof G3 WT198X LED82S/865 L1 W L1500 (911401552402) x 9pcs
Philips GreenPerform Waterproof G3 WT198X LED82S/865 L1 W L1500 (911401552402) x 9pcs
SKU SKU:911401552402
Regular price
$ 1,260.00 SGD
Regular price
$ 1,260.00 SGD
Sale price
$ 1,260.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Share
WT198X LED82S/865 L1 W L1500 (911401552402)
Leadtime: 7 To 9 Weeks
Specifications:
| GENERAL INFORMATION | |
| Number Of Gear Units | 1 unit |
| Gear | EB [Electronic] |
| Driver Included | Yes |
| Light Source Engine Type | LED |
| Service Tag | Yes |
| LIGHT TECHNICAL | |
| Luminous Flux | 8,200 lm |
| Correlated Color Temperature (Nom) | 6500 K |
| Luminous Efficacy (rated) (Nom) | 138.7 lm/W |
| Color Rendering Index (CRI) | 80 |
| Number Of Light Sources | 1 |
| Light Source Color | 865 cool daylight |
| Optic Type | - |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 to 60 Hz |
| Inrush Current | 19 A |
| Inrush Time | 420 ms |
| Power Consumption | 59.1 W |
| Power Factor (Fraction) | 0.95 |
| Connection | Push-in connector 3-pole |
| Cable | - |
| Number Of Products On MCB Of 16 A Type B | 13 |
| Suitable For Random Switching | Yes |
| Protection Class IEC | Safety class I |
| CONTROLS AND DIMMING | |
| Dimmable | Step Dim |
| Control Interface | Wireless |
| Maximum Dim Level | 20% |
| MECHANICAL AND HOUSING | |
| Housing Material | Plastic |
| Reflector Material | Steel |
| Optic Material | Polycarbonate |
| Optical Cover Material | Polycarbonate |
| Housing Color | Gray |
| Mounting Device | Mounting bracket |
| Optical Cover Finish | Clear |
| Overall Length | 1,515 mm |
| Overall Width | 80 mm |
| Overall Height | 76 mm |
| Dimensions (Height X Width X Depth) | 76 x 80 x 1515 mm |
| Ingress Protection Code | IP65 [Dust penetration-protected, jet-proof] |
| Mech. Impact Protection Code | IK08 [5 J vandal-protected] |
| Optical Cover Type | Polycarbonate bowl/cover |
| Net Weight (Piece) | 1.700 kg |
| APPROVAL AND APPLICATION | |
| Glow-wire Test | Temperature 650 °C, duration 30 s |
| Flammability Mark | - |
| CE Mark | Yes |
| ENEC Mark | - |
| Photobiological Risk | Photobiological risk group 1 @200mm to EN62778 |
| EU RoHS Compliant | No |
| Performance Ambient Temperature Tq | 35 °C |
| Ambient Temperature Range | -20 to +45 °C |
| INITIAL PERFORMANCE (IEC COMPLIANT) | |
| Luminous Flux Tolerance | -1 |
| Initial Chromaticity | (0.32, 0.33) SDCM≤3 |
| Power Consumption Tolerance | +/-10% |
| PRODUCT DATA | |
| Order Product Name | WT198X LED82S/865 L1 W L1500 |
| Full Product Name | WT198X LED82S/865 L1 W L1500 |
| Full Product Code | 8.72017E+14 |
| Order Code | 9.11402E+11 |
| Material Nr. (12NC) | 9.11402E+11 |
| Numerator - Quantity Per Pack | 1 |
| EAN/UPC - Product/Case | 8.72017E+12 |
| Numerator - Packs Per Outer Box | 9 |
| EAN/UPC - Case | 8.72017E+12 |
