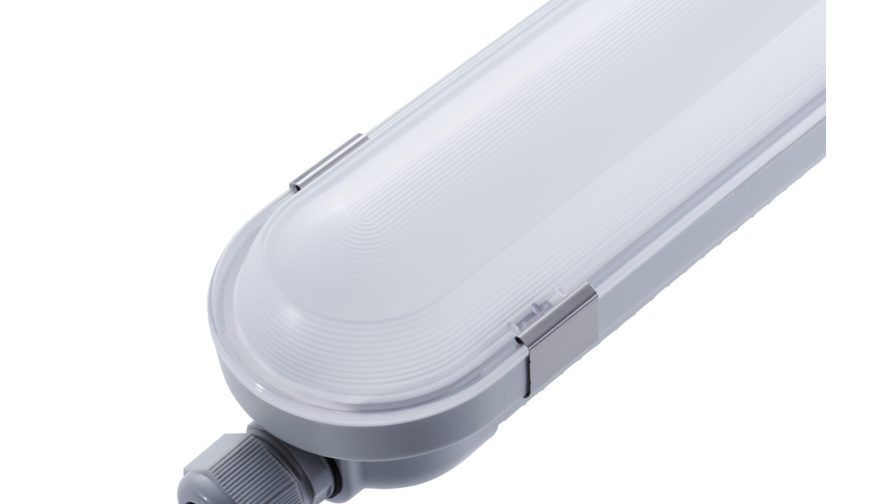

Philips GreenPerform Waterproof G3 WT198X LED20S/865 L1 W L600 (911401552002)

Philips GreenPerform Waterproof G3 WT198X LED20S/865 L1 W L600 (911401552002)

SKU 911401552002

URL Datasheet

$ 84.00 SGD
$ 84.00 SGD $ 84.00 SGD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left
Request For Quote

WT198X LED20S/865 L1 W L600 (911401552002)

Leadtime: 24 To 26 Weeks

Specifications:

APPLICATION CONDITIONS
Ambient temperature range -20 to +45 °C
APPROVAL AND APPLICATION
Ingress protection code IP43/65  [ Wire-protected, rain/spray-proof; dust penetration-protected, jet-proof]
Mech. impact protection code IK08  [ 5 J vandal-protected]
CONTROLS AND DIMMING
Dimmable Wireless Dim
GENERAL INFORMATION
CE mark CE mark
Control interface InterAct Pro
Lamp colour code 865 cool daylight
Light source engine type LED
Number of products on MCB (16 A type B) 84
Optical cover/lens type No  [ -]
Protection class IEC Safety class I (I)
INITIAL PERFORMANCE (IEC COMPLIA
Colour Rendering Index >80
Initial input power 14.7 W
Initial LED luminaire efficacy 140 lm/W
Initial luminous flux (system flux) 2000 lm
Lamp colour temperature 6500 K
Luminous flux tolerance +/-10%
Power consumption tolerance +/-10%
MECHANICAL AND HOUSING
Colour Grey
Housing material Polycarbonate
Optical cover/lens finish Clear
Optical cover/lens material Polycarbonate
Overall height 76 mm
Overall length 615 mm
Overall width 80 mm
OPERATING AND ELECTRICAL
Input frequency 50 to 60 Hz
Input voltage 220-240 V
Inrush current 8:00 AM
Power factor (min.) 0.9
PRODUCT DATA
Net Weight (Piece) 0.790 kg
Numerator – packs per outer box 9
Order code 9.11402E+11
Order product name WT198X LED20S/865 L1 W L600
SAP material 9.11402E+11
SAP numerator – quantity per pack 1
