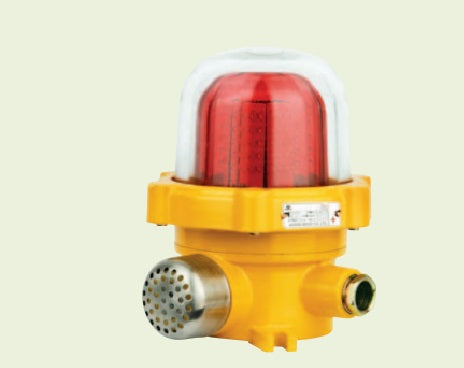

Warom BBJ 81 Red Color DC 24 Explosion Proof Light
Warom BBJ 81 Red Color DC 24 Explosion Proof Light
SKU SKU:BBJ81RDC24
Share
Description:
Lead-time 6 to 7 weeks
BBJ- Series Explosion-proof Audio and
Visual Caution Spotlight Fittings
Explosion protection to
-CENELEC
-IEC
Can be used
in Zone 1 and Zone 2
Ultra-bright LED lamp, low power consumption and long
service life.
Enclosure in copper-free aluminium, powder coated external
surface, yellow.
Enclosure : Copper-free aluminium, powder coated external surface, yellow.
Transparent cover : Toughened glass, impact resistance, high light transmission
Exposed fastener : Stainless steel
Rated voltage : 220-240V AC 50/60Hz
Lamp color : Red, blue, yellow or green
Flash frequency : 150(times/min)
Sound intensity : 100120 dB (R=1m)
Earthing protection : M5 (internal & external earth bolt)
Degree of protection : IP65
Ambient temperature : -20+55
Terminal : 3 x 1.52.5mm2 (L+N+PE)
Cable entries : 1 x G3/4 for horizontal type; 2 x M25 x 1.5 for pendant pole type
