USHIO JPD25V-150WG1 Halogen Lamp
USHIO JPD25V-150WG1 Halogen Lamp
SKU:1001106
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share

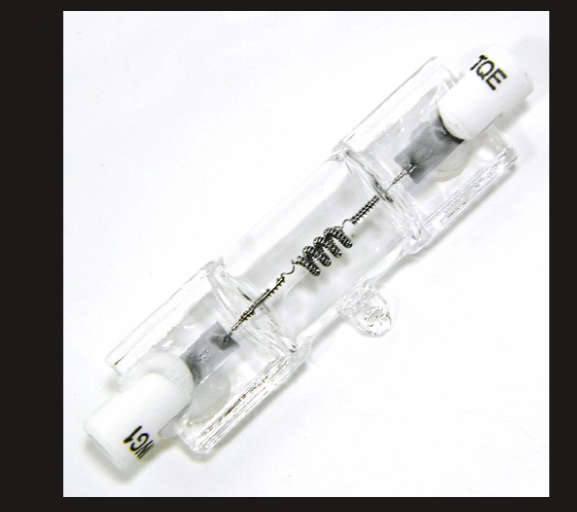

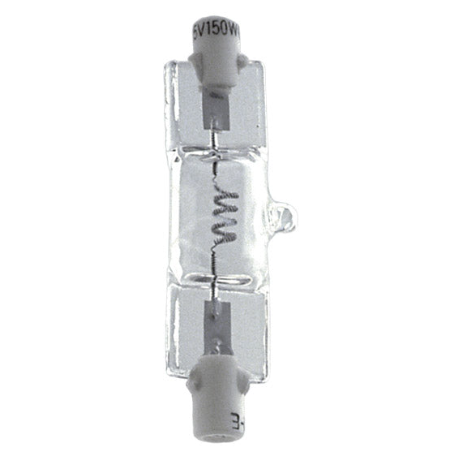

The USHIO JPD25V-150WG1 is a high-quality 150W, 25V double-ended quartz halogen lamp designed for specialized lighting equipment, including scientific/medical systems, audio-visual equipment, photography, projectors, and other approved enclosed halogen fixtures. It uses an R7s-18 recessed single-contact base and a clear T5 tubular bulb with a CC-8 coiled-coil filament.
The lamp produces approximately 2,700 lumens with a 2900K color temperature, delivering warm, bright illumination and excellent color rendering. It has a 3000-hour average rated life and supports universal burning position, making it suitable for installations where lamp orientation may vary
Key Specifications:
| Specification | Details |
|---|---|
| Brand | USHIO |
| Model | JPD25V-150WG1 |
| USHIO Ordering Code | 1001106 |
| Lamp Type | Quartz Halogen, Double-Ended |
| Power | 150W |
| Voltage | 25V |
| Base | R7s-18 |
| Bulb Shape | T5 |
| Bulb Finish | Clear |
| Filament | CC-8 |
| Color Temperature | 2900K |
| Initial Lumens | 2700 lm |
| Average Life | 3000 hours |
| Diameter | 15.0 mm |
| Overall Length | 66.7 mm |
| Operating Position | Universal |
