Tridonic T4 Electronic Lighting Ballast IP20 Delight x2Pcs
Tridonic T4 Electronic Lighting Ballast IP20 Delight x2Pcs
SKU:7754000
Low stock: 4 left
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
Technical data sheets
*Check stock before ordering. Lead time 4 working days*
Product Details

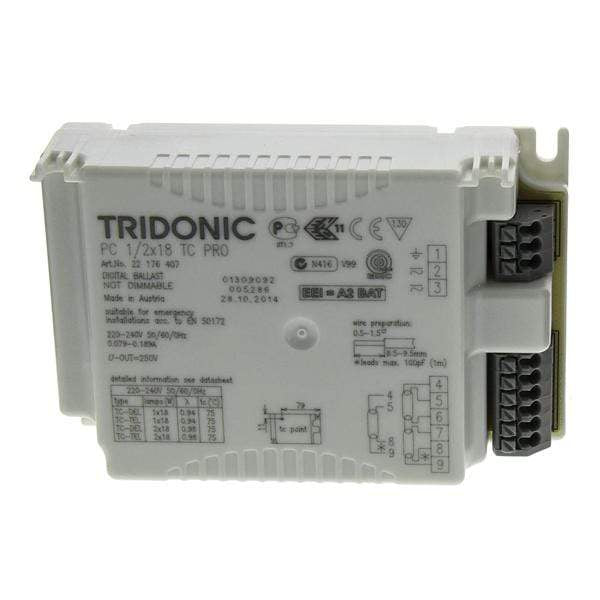

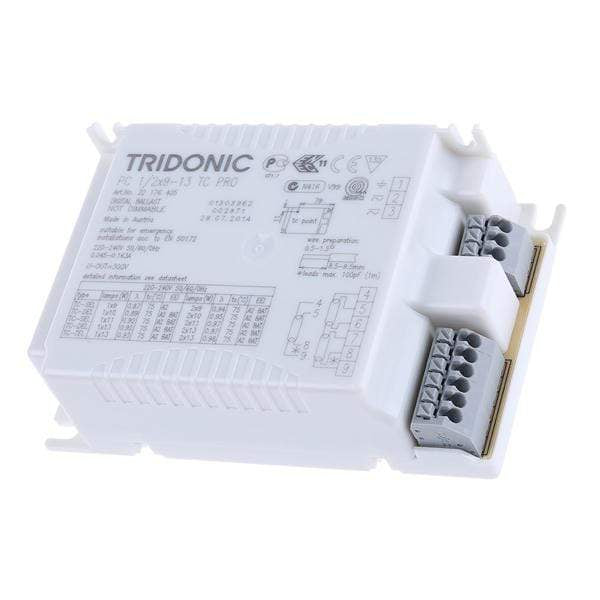

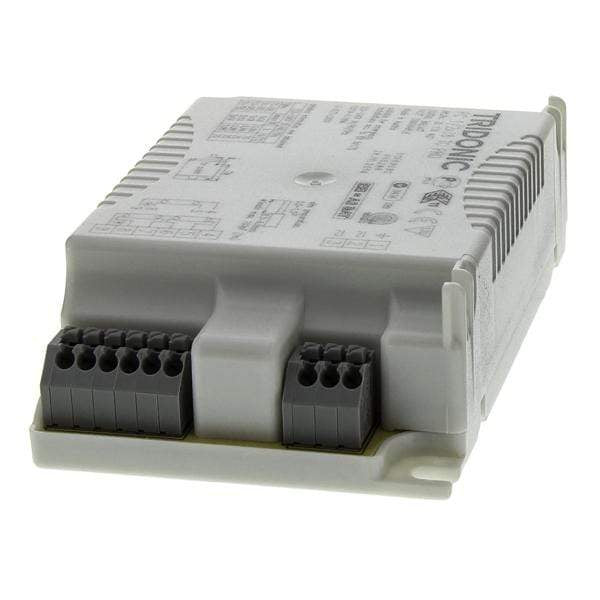

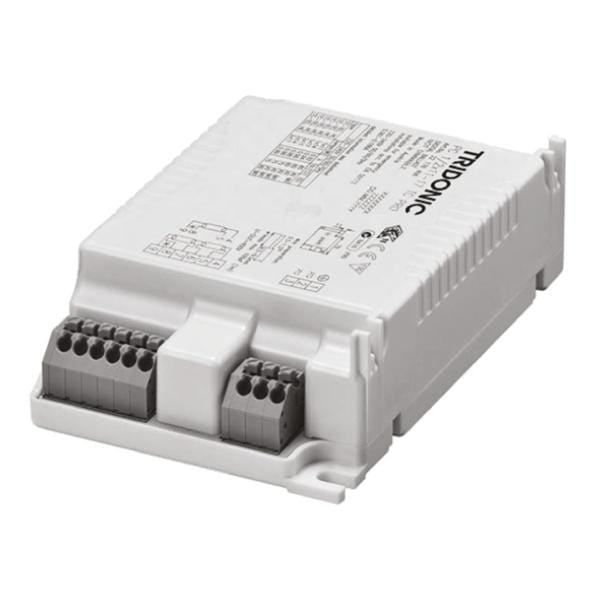

Tridonic PC TC PRO Compact Electronic Fixed Output Fluorescent Lamp Ballast
CELMA Energy Efficiency Index A2 BAT / A2
Nominal life time up to 50000 hours (at 50 °C ambient)
Large temperature range
Devices can operate either 1 or 2 lamps
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Constant luminous flux irrespective of fluctuations in mains voltage
For luminaires of protection class I and protection class II
Automatic start after replacement of defective lamps
Safety shutdown of defective lamps and at end of lamp life (EOL 2)
For emergency lighting systems as per EN 50172
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Temperature protection as per EN 61347-2-3 C5e
Standards
EN 50172
EN 60598
VDE 0710
VDE 0711
Approvals
Ballast Directive Energy Efficient Requirements: CELMA EEI = A2
Specifications
| Attribute | Value |
| Wattage | 10 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | T4 |
| Supported Lamp Type | Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| High Frequency | Yes |
| Length | 103 mm |
| Width | 67 mm |
| Height | 31mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| EU Energy Efficiency Rating | A2 |
