Tridonic Driver LCA 150W 24V one4all SC PRE

Datasheet:

Description:

Lead time 1-2 weeks

EXW Singapore

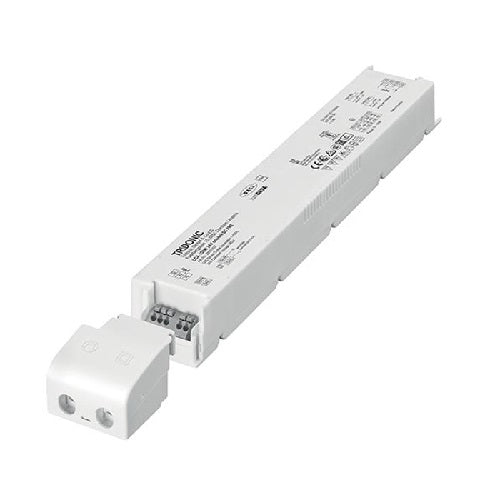

Driver LCA 150W 24V one4all SC PRE
premium series 24 V – dimmable (IP20)

Product description:
_ NEW: lumDATA (Luminaire data, Energy reporting and
Diagnostics & Maintenance)
_ Dimmable 24 V constant voltage LED driver for flexible constant
voltage strips
_ Can bei either used built-in or independent with clip-on strainrelief (see data sheet chapter: 1. Standards)
_ The strain relief is included in both packaging variants. In the
single packaging (SP) each Driver has also an individual
packaging
_ One4all interface and ready2mains enable different dimming
options
_ Dimming range 1 to 100 %
_ No additional external dimmer is needed
_ Suitable for emergency escape lighting systems acc. to EN 50172
_ Nominal lifetime up to 50,000 h
_ 5 years guarantee

Typical applications:
_ Cove lighting, facade accent lighting, ceiling integration
Technical details
_ 24 V, 150 W
_ Small design (325 x 43 x 30 mm) with stretched-compact strain
relief
_ Small cross section
_ Push terminals for simple wiring
_ Output terminals (+/–) equipped twice for more flexibility in the
application

Interfaces:
_ one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
_ ready2mains (configuration and dimming via mains)
_ Terminal blocks: 45° push terminals

System solution:
_ Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m
_ Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
_ In connection with Flex accessories wire to PCB plug
_ Test the function of third party light sources before use at low
dimming levels to ensure the dimming function works perfectly
