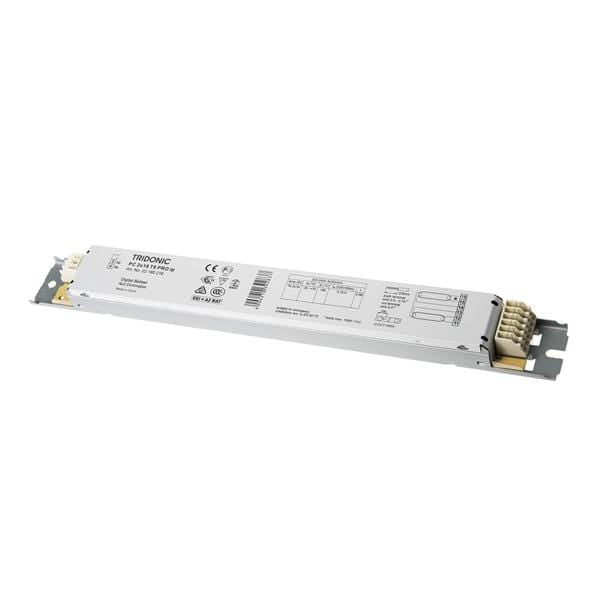

Tridonic 220-240V Electronic T8 Fluorescent Lighting Ballast IP20 x2Pcs

Tridonic 220-240V Electronic T8 Fluorescent Lighting Ballast IP20 x2Pcs

SKU SKU:7753988

Regular price $ 149.00 SGD
Regular price $ 149.00 SGD Sale price $ 149.00 SGD
Sale Sold out
Shipping calculated at checkout.
Size
Power

50 in stock

Request For Quote

Technical data sheets

Datasheet

*Check stock before ordering. Lead time 4 working days*

Product Details

Tridonic PC T8 PRO Ballasts

The Tridonic PC T8 PRO electronic fixed output ballasts for fluorescent lamps are ideal for emergency lighting systems. Providing constant light when there are fluctuations in the mains power supply and efficiently shut down when a lamp becomes defected or exhausted. These lighting ballasts have a nominal lifetime of up to 100000 hours and have the highest possible energy class with intelligent voltage protection.

Features & Benefits

Highest possible energy class CELMA EEI = A2 BAT
Nominal lifetime up to 100000 hours (at 50°C)

Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)

Precise lamp operation using adjustment of lamp parameters

Advanced SMART Heating for min. 50000 starts without replacement of lamps

For luminaires of protection Class I & II

Insulation Displacement Connection (IDC) terminal for rapid automatic or manual wiring

Product Application Information

Ideal for emergency lighting systems as per EN 50172, so you can be confident even if a few lights turn off, the rest won't be affected. Giving you light when you most need it.

Standards

EN 50172

Approvals

Ballast Directive Energy Efficient Requirements: CELMA EEI = A2 BAT

Specifications

Attribute Value
Wattage 18 W, 36 W, 58 W
Ballast Type Electronic
Supported Lamp Shape T8
Supported Lamp Type Fluorescent
Voltage Rating 220 → 240 V
Dimmable No
High Frequency Yes
Length 280 mm, 230mm
Width 30 mm
Height 21mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +70°C
EU Energy Efficiency Rating A2
