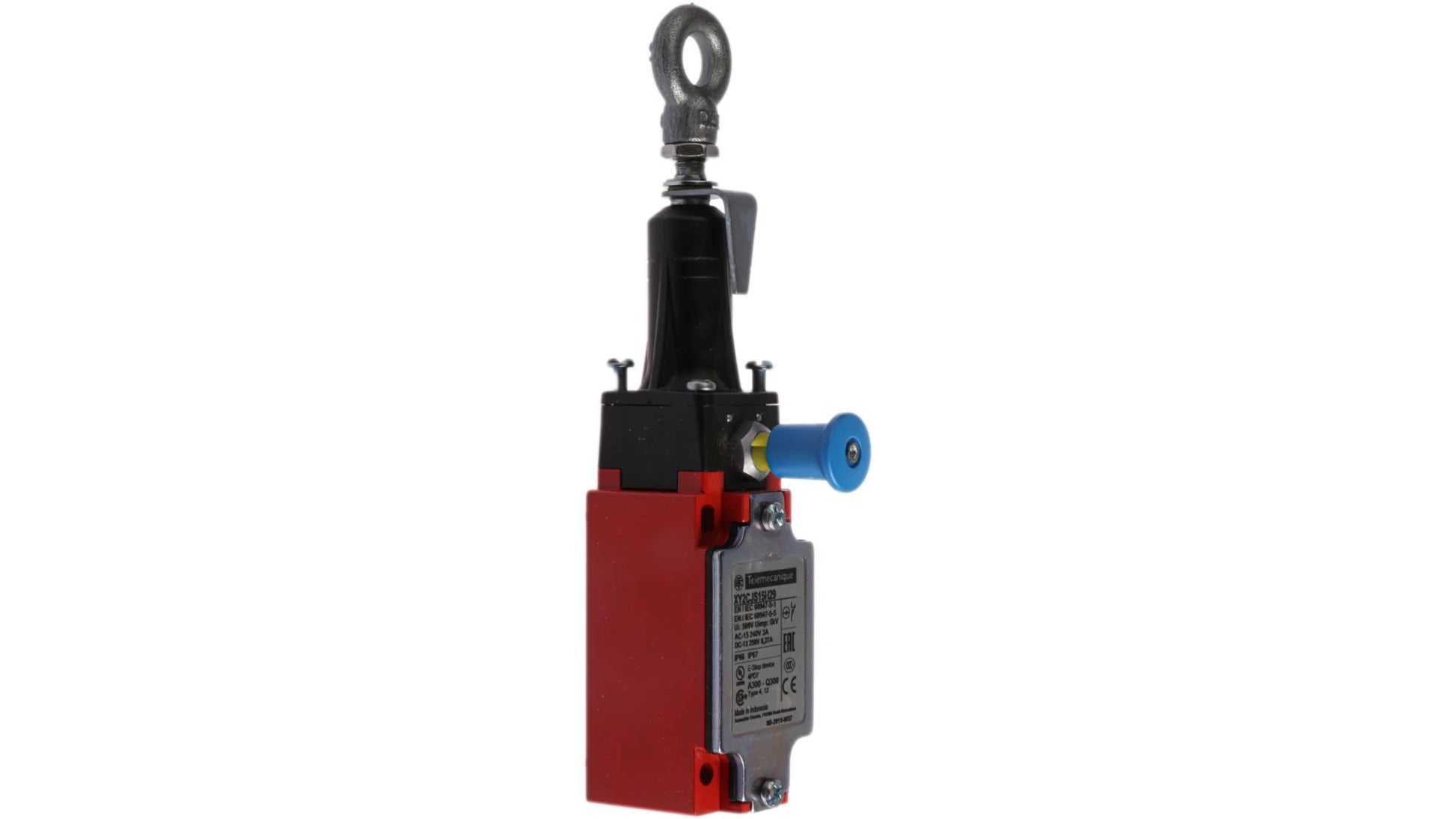

Telemecanique Sensors XY2CJ Rope Pull Switch, 20m, NO/NC, , Dual Direction

Telemecanique Sensors Emergency Stop Rope Pull Switch The Telemecanique Sensors XY2CJ series emergency stop rope pull switch has a 1NC/1NO contact configuration. It has Zamak housing and maximum AC/DC voltage is 240VAC and 250VDC respectively and the current rating of the switch is 3A and 270mA for AC and DC respectively. It is designed to prevent injury to people or damage to machinery when a normal emergency stop function is not available. This product is easy to install and offers a quick visual check of the switch status for machine restart. This switch has a rope span of 20m and the mounting orientation is to the left side, right side. Note Manufacturer part numbers with the suffix H29 are the ISO M20 threaded cable entry version. Features and Benefits Embedded safety spring ensures function is maintained in the event of spring damage Fast mounting and wire adjustment with tensioner accessory Colour coded sections (green and yellow) on the pull reset button offer an easy visual check of the switch status for a quick machine restart Up to 20m cable length for the XY2CJS and up to 30m cable length for the XY2CJL & XY2CJR Four position turret head rotatable by 90° turns Various electrical connection options available Applications Conveyor systems Packaging Textiles Transfer machines Presses Woodworking equipment Paint lines Test laboratories Certifications UL approved CCN certified CSA certified CE certified IP66 rated IP67 rated
