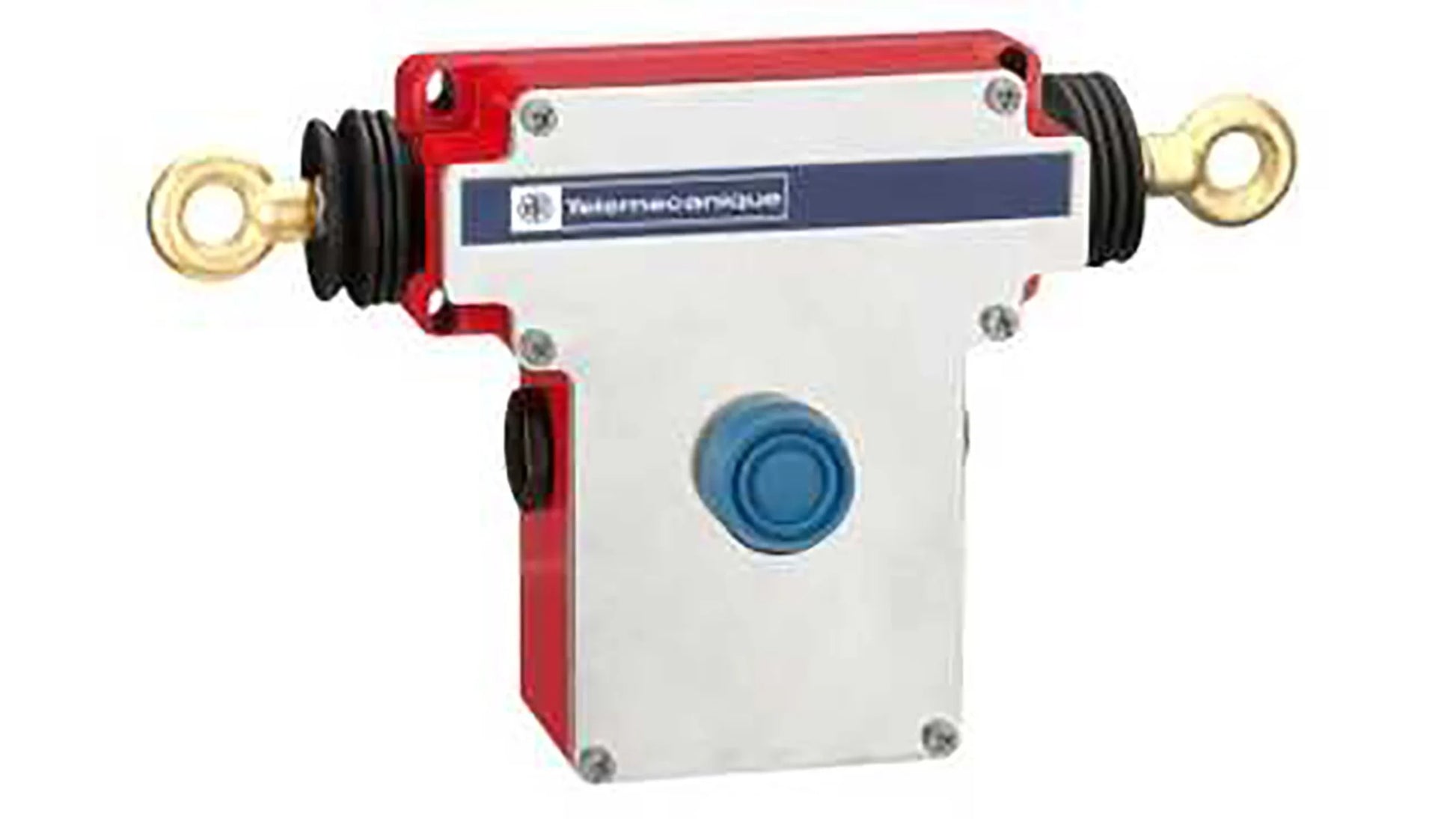

Telemecanique Sensors XY2CE Rope Pull Switch, 2 x 35 → 2 x 100m, 2NO/2NC

Telemecanique XY2CED Emergency Stop Dual Rope Pull Switches Telemecanique XY2CED emergency stop dual rope pull switches are designed to reduce the risk of injury to persons and damage either to machines or work in progress. These dual rope pull switches feature double anchor points and can support up to 2 x 100 m with supports and pulleys. They can be tripped by a single human action when a normal emergency stop function is not available and will also trip in the event of the tripwire breaking. Features and Benefits Switches incorporate positive opening operation contacts, the tripping of the switch being made with positive action The switch latches in the tripped position (N/C safety contact(s) open). The function of the N/O contact is purely for signalling Incorporates a reset button, which re-closes the safety contact(s), restarting of the machine must only be achieved by manual operation of a control device within the machine start circuit, remote to the trip wire switch Recommended distance between cable supports is 15m
