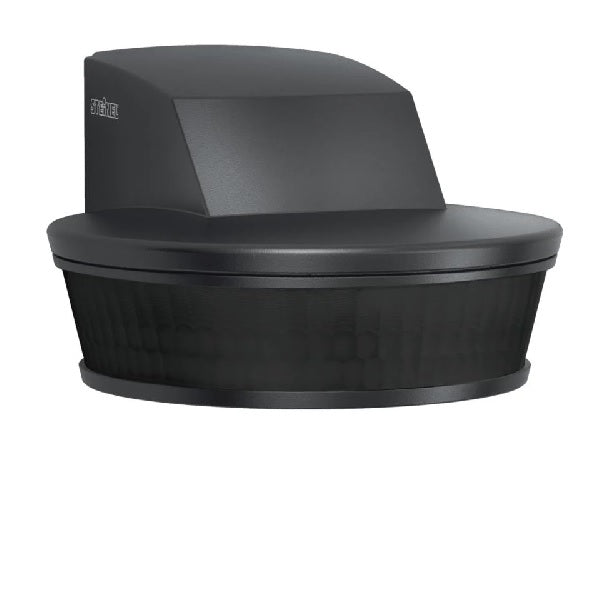

Steinel Passive Infrared (PIR), sensIQ S

Technical Details:

Datasheet for White

Datasheet for Black

Datasheet for Anthracite

The evolution of perfection.

PIR (Passive Infrared) Motion Detector.  The sensIQ S is just as perfect as its larger role model. For indoors and outdoors, ideal for building entrances, loading bays, for mounting heights of up to 5 m, quadruple sensor system for optimum surveillance over 3x100° coverage angle, 20 m reach (tangential), reach setting to the accuracy of a metre in 3 independent directions. Remote control and corner wall mount bracket included.

With 5 Years Manufacturer's Warranty

Technical Specifications:

Dimensions(W x H x D): 114 x 74 x 128 mm
Model: Movement sensor
Voltage: 100 - 240 V, 50/60 Hz (2.5 mm² max.)
Sensor type: Passive infrared
Application: Indoors and Outdoors
Installation: Passive infrared Wall, Corner
Recommended installation height: 2 - 5m
Max. output (resistive load, all-purpose lamp): 1200 W max. at 120 V 2000 W max. at 230 V
Max. output (uncorrected, inductive, cos φ = 0.5, e.g. fluorescent lamps): 1000 VA max. 230 V 500 VA max. 120 V
Detection angle: 300° with 180° angle of aperture
Capability of masking out individual segments: Yes
Reach: 2 - 20 m max. tangential, temperature-stabilised adjustable in 3 directions via control dial
Sensor system: 4 sensors, 6 levels for long-distance detection and 5 for sneak-by guard, 1360 switching zones
Response value luminosity: 2 - 2000 lx
Teach-function for response value luminosity: 5 sec - 15 min
Time setting: Pulse mode (approx. 2 sec.)
Manual override: Selectable, 4h
Permanently 'OFF': Selectable
Degree of protection (IP): IP 64
