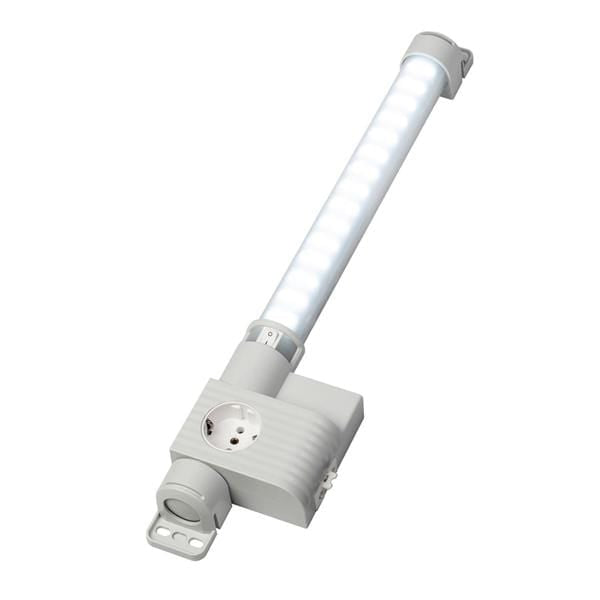

Stego 11W And 16W LED Varioline Lamp 220-240V AC, Daylight, 6500K, IP20
Stego 11W And 16W LED Varioline Lamp 220-240V AC, Daylight, 6500K, IP20
SKU SKU:1947800
Low stock: 2 left
Couldn't load pickup availability
Share
Technical data sheets
Data Sheet
*Check stock before ordering. Lead time 4 working days.*
Product Details

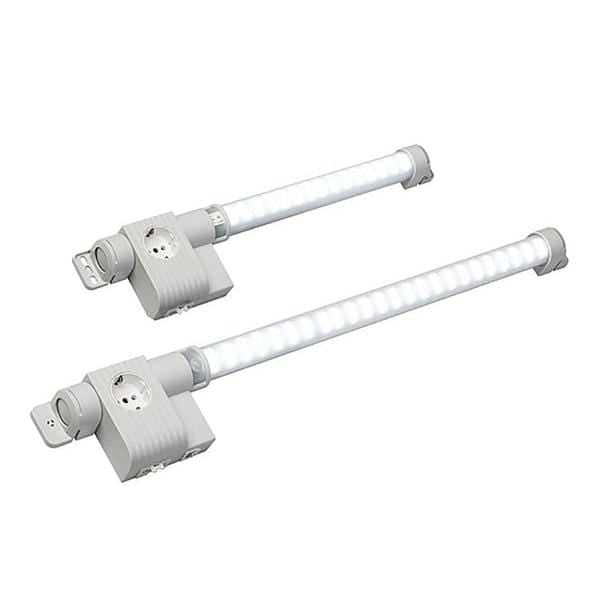

Available in two versions with sizes from 400 to 700 mm, it provides more than 1,000 Lm / 1,700 Lm at a moderate power consumption of 11 W / 16 W. Its translucent and thus glare-free rotatable light tube is equipped with bright mid-power LEDs. With a beam angle of 120° these enable homogeneous illumination within control cabinets and enclosures. Specially selected LEDs provide for a long service life of 60,000 hours, which make the Varioline virtually maintenance-free. Emits tried-and-tested 6,500 K coloured daylight, so users benefit from natural vision conditions and confusion-free colour rendition. The LED Varioline also features versatile switching options. On-off switch, motion detector or connection for an external door contact switch allow for adaption to the requirements of each individual application. Screw or magnet fixing are available as mounting options and offer flexible and vibration-proof installation. Daisy chaining makes it easy to configure more extensive lighting situations. Up to eight lamps can be connected serially.
Specifications
12123.0-00 - 500mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Lamp |
| Voltage Rating | 220 → 240 V ac |
| Length | 500 mm |
| Width | 100 mm |
| Depth | 44 mm |
| Wattage | 11 W, 16 W |
| Colour Temperature | 6500K |
| Light Colour | Daylight |
| Lamp Supplied | Yes |
| Current Rating | 13 A |
| Series | LED 121 |
| Model | 12123.0-00 |
12213.0-00 - 700mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Lamp |
| Voltage Rating | 220 → 240 V ac |
| Length | 700 mm |
| Width | 100 mm |
| Depth | 44 mm |
| Wattage | 11 W, 16 W |
| Colour Temperature | 6500K |
| Light Colour | Daylight |
| Current Rating | 13 A |
| Model | 12213.0-00 |
| Lamp Supplied | Yes |
| Series | LED 122 |
12223.0-00 - 700mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Lamp |
| Voltage Rating | 220 → 240 V ac |
| Length | 700 mm |
| Width | 100 mm |
| Depth | 44 mm |
| Wattage | 11 W, 16 W |
| Colour Temperature | 6500K |
| Light Colour | Daylight |
| Current Rating | 13 A |
| Model | 12223.0-00 |
| Series | LED 122 |
| Lamp Supplied | Yes |
12233.0-00 - 700mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Lamp |
| Voltage Rating | 220 → 240 V ac |
| Length | 700 mm |
| Width | 100 mm |
| Depth | 44 mm |
| Wattage | 11 W, 16 W |
| Colour Temperature | 6500K |
| Light Colour | Daylight |
| Series | LED 122 |
| Current Rating | 13 A |
| Lamp Supplied | Yes |
| Model | 12233.0-00 |
12103.0-30 - 500mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Lamp |
| Voltage Rating | 220 → 240 V ac |
| Length | 500 mm |
| Width | 100 mm |
| Depth | 44 mm |
| Wattage | 11 W, 16 W |
| Colour Temperature | 6500K |
| Light Colour | Daylight |
| Model | 12103.0-30 |
| Lamp Supplied | Yes |
| Series | LED 121 |
| Current Rating | 13 A |
12113.0-30 - 500mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Lamp |
| Voltage Rating | 220 → 240 V ac |
| Length | 500 mm |
| Width | 100 mm |
| Depth | 44 mm |
| Wattage | 11 W, 16 W |
| Colour Temperature | 6500K |
| Light Colour | Daylight |
| Model | 12113.0-30 |
| Series | LED 121 |
| Lamp Supplied | Yes |
| Current Rating | 13 A |
12133.0-30 - 500mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Lamp |
| Voltage Rating | 220 → 240 V ac |
| Length | 500 mm |
| Width | 100 mm |
| Depth | 44 mm |
| Wattage | 11 W, 16 W |
| Colour Temperature | 6500K |
| Light Colour | Daylight |
| Current Rating | 13 A |
| Lamp Supplied | Yes |
| Model | 12133.0-30 |
| Series | LED 121 |
12203.0-30 - 700mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Lamp |
| Voltage Rating | 220 → 240 V ac |
| Length | 700 mm |
| Width | 100 mm |
| Depth | 44 mm |
| Wattage | 11 W, 16 W |
| Colour Temperature | 6500K |
| Light Colour | Daylight |
| Current Rating | 13 A |
| Lamp Supplied | Yes |
| Model | 12203.0-30 |
| Series | LED 122 |
12213.0-30 - 700mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Lamp |
| Voltage Rating | 220 → 240 V ac |
| Length | 700 mm |
| Width | 100 mm |
| Depth | 44 mm |
| Wattage | 11 W, 16 W |
| Colour Temperature | 6500K |
| Light Colour | Daylight |
| Lamp Supplied | Yes |
| Model | 12213.0-30 |
| Current Rating | 13 A |
| Series | LED 122 |
12223.0-30 - 700mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Lamp |
| Voltage Rating | 220 → 240 V ac |
| Length | 700 mm |
| Width | 100 mm |
| Depth | 44 mm |
| Wattage | 11 W, 16 W |
| Colour Temperature | 6500K |
| Light Colour | Daylight |
| Series | LED 122 |
| Lamp Supplied | Yes |
| Current Rating | 13 A |
| Model | 12223.0-30 |
12233.0-30 - 700mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Lamp |
| Voltage Rating | 220 → 240 V ac |
| Length | 700 mm |
| Width | 100 mm |
| Depth | 44 mm |
| Wattage | 11 W, 16 W |
| Colour Temperature | 6500K |
| Light Colour | Daylight |
| Series | LED 122 |
| Current Rating | 13 A |
| Lamp Supplied | Yes |
| Model | 12233.0-30 |
