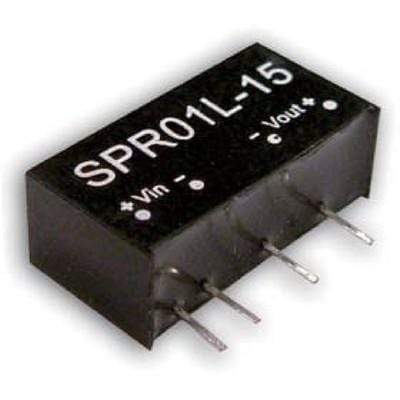

Mean Well SPR01L-15 - 1W DC-DC Regulated Single Output Converter

For Specification Sheet Click Here

Features:

  • 1000VDC I/O isolation
  • Internal SMD technology
  • Built-in EMI filter
  • Cooling by free air convection
  • Non-conductive plastic case
  • Single in line package
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / CE
  • 2 years warranty



Specifications:

MODEL SPR01L-05 SPR01M-05 SPR01N-05 SPR01O-05
DC OUTPUT VOLTAGE 5V
OUTPUT CURRENT RANGE  0 ~ 200mA
EFFICIENCY(Typ.) 57% 65% 62% 62%
ORDER NO. SPR01L-12 SPR01M-12 SPR01N-12 SPR01O-12
DC OUTPUT VOLTAGE  12V
OUTPUT CURRENT RANGE 0 ~ 84mA
EFFICIENCY(Typ.) 58% 60% 60% 58%
OUTPUT RATED POWER 1W
RIPPLE & NOISE (max.) 100mVp-p
LINE REGULATION 1.00%
LOAD REGULATION 1.00%
VOLTAGE ACCURACY 2.0%(Typ.) 3.0%(max.)
SWITCHING FREQUENC 50KHz min
INPUT VOLTAGE RANGE 4.5 ~ 5.5V 10.8 ~ 13.2V 21.6 ~ 26.4V 43.2 ~ 52.8V
NORMAL VOLTAGE 5V 12V 24V 48V
INPUT CURRENT Full load 350mA 141mA 67mA 35mA
No load 32mA 15mA 10mA 6mA
FILTER Capacitor type
PROTECTION Fuse recommended
PROTECTION OVERLOAD >110% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT All output equipped with short circuit
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. 25 ~ +71oC (Refer to output load derating curve)
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -25 ~ +105oC , 10 ~ 95% RH
TEMP. COEFFICIENT 0.03% /oC (0 ~ 50oC )
VIBRATION 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC WITHSTAND VOLTAGE I/P-O/P:1KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
ISOLATION CAPACITANCE 80pF max.
EMICONDUCTION&RADIATION Compliance to EN55022 Class B, FCC part 15 Class B
EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A
OTHERS MTBF 700khrs min. MIL-HDBK-217F(25 )
DIMENSION 19.6*7.1*10.2mm .or 0.77"*0.28"*0.40" inch (L*W*H)
WEIGHT 2.3g
ORDER NO. SPR01L-09 SPR01M-09 SPR01N-09 SPR01O-09
DC OUTPUT VOLTAGE 9V
OUTPUT CURRENT RANGE 0 ~ 100mA
EFFICIENCY(Typ.)  57% 60% 60% 56%
ORDER NO. SPR01L-15 SPR01M-15 SPR01N-15 SPR01O-15
DC OUTPUT VOLTAGE 15V
OUTPUT CURRENT RANGE 0 ~ 67mA
EFFICIENCY (Typ.)  60% 62% 60% 58%
OUTPUT RATED POWER 1W
RIPPLE & NOISE (max.) 100mVp-p
LINE REGULATION 1.00%
LOAD REGULATION 1.00%
VOLTAGE ACCURACY 2.0%(Typ.) 3.0%(max.)
SWITCHING FREQUENC 50KHz min
INPUT VOLTAGE RANGE 4.5 ~ 5.5V 10.8 ~ 13.2V 21.6 ~ 26.4V 43.2 ~ 52.8V
NORMAL VOLTAGE 5V 12V 24V 48V
INPUT CURRENT Full load 350mA 141mA 67mA 35mA
No load 32mA 15mA 10mA 6mA
FILTER Capacitor type
PROTECTION Fuse recommended
PROTECTION OVERLOAD >110% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT All output equipped with short circuit
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. 25oC ~ +71oC (Refer to output load derating curve)
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -25 ~ +105oC , 10 ~ 95% RH
TEMP. COEFFICIENT 0.03% /oC (0 ~ 50oC )
VIBRATION 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC WITHSTAND VOLTAGE I/P-O/P:1KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
ISOLATION CAPACITANCE 80pF max.
EMICONDUCTION&RADIATION Compliance to EN55022 Class B, FCC part 15 Class B
EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A
OTHERS MTBF 700khrs min. MIL-HDBK-217F(25 )
DIMENSION 19.6*7.1*10.2mm .or 0.77"*0.28"*0.40" inch (L*W*H)
WEIGHT 2.3g
