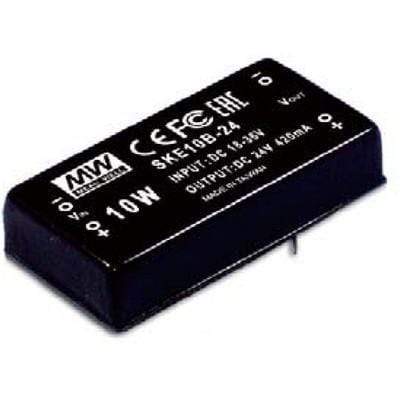

Meanwell SKE Series Single-output DC-DC regulated converter

Meanwell SKE Series Single-output DC-DC regulated converter

SKU SKE10A-05

$ 33.67 SGD
$ 36.00 SGD $ 33.67 SGD
Sale Sold out
Shipping calculated at checkout.
Power
Voltage
Type

Out of stock
Request For Quote

For Specification Sheet Click Here



Features:

  • 2:1 wide input range
  • 4:1 wide input range(option)
  • 1000VDC I/O isolation
  • 3000VDC I/O isolation(option)
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / CE
  • 2 years warranty



Specifications:

ORDER NO. SKE10A-05 SKE10B-05 SKE10C-05 SKE10A-12 SKE10B-12 SKE10C-12
OUTPUT DC VOLTAGE 5V 12V
CURRENT RANGE 200 ~ 2000mA 84 ~ 840mA
RATED POWER 10W
RIPPLE & NOISE 50mVp-p 60mVp-p
LINE REGULATION 0.30%
LOAD REGULATION 0.50%
VOLTAGE ACCURACY 2.00%
SWITCHING FREQUENCY 200KHz min
INPUT VOLTAGE RANGE A: 9 ~ 18VDC B: 18 ~ 36VDC C: 36 ~ 72VDC
EFFICIENCY 78% 79% 80% 79% 81% 81%
DC CURRENT Full load A: 1100mA B: 530mA C: 270mA
No load A: 28mA B: 16mA C: 8mA
FILTER Pi network
PROTECTION Fuse recommended
PROTECTION OVER CURRENT 160% ~ 250% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT All output equipped with short circuit
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25 ~ +71oC (Refer to output load derating curve)
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -25 ~ +105oC , 10 ~ 95% RH
TEMP. COEFFICIENT 0.03% /oC (0 ~ 50 oC )
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC WITHSTAND VOLTAGE I/P-O/P:1KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
EMI CONDUCTION & RADIATION Compliance to EN55022 Class B, FCC part 15 Class B
EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A
OTHERS MTBF 500Khrs min. MIL-HDBK-217F(25 )
DIMENSION 50.8*25.4*11.2mm .or 2"*1"*0.44" inch (L*W*H)
WEIGHT 32g
