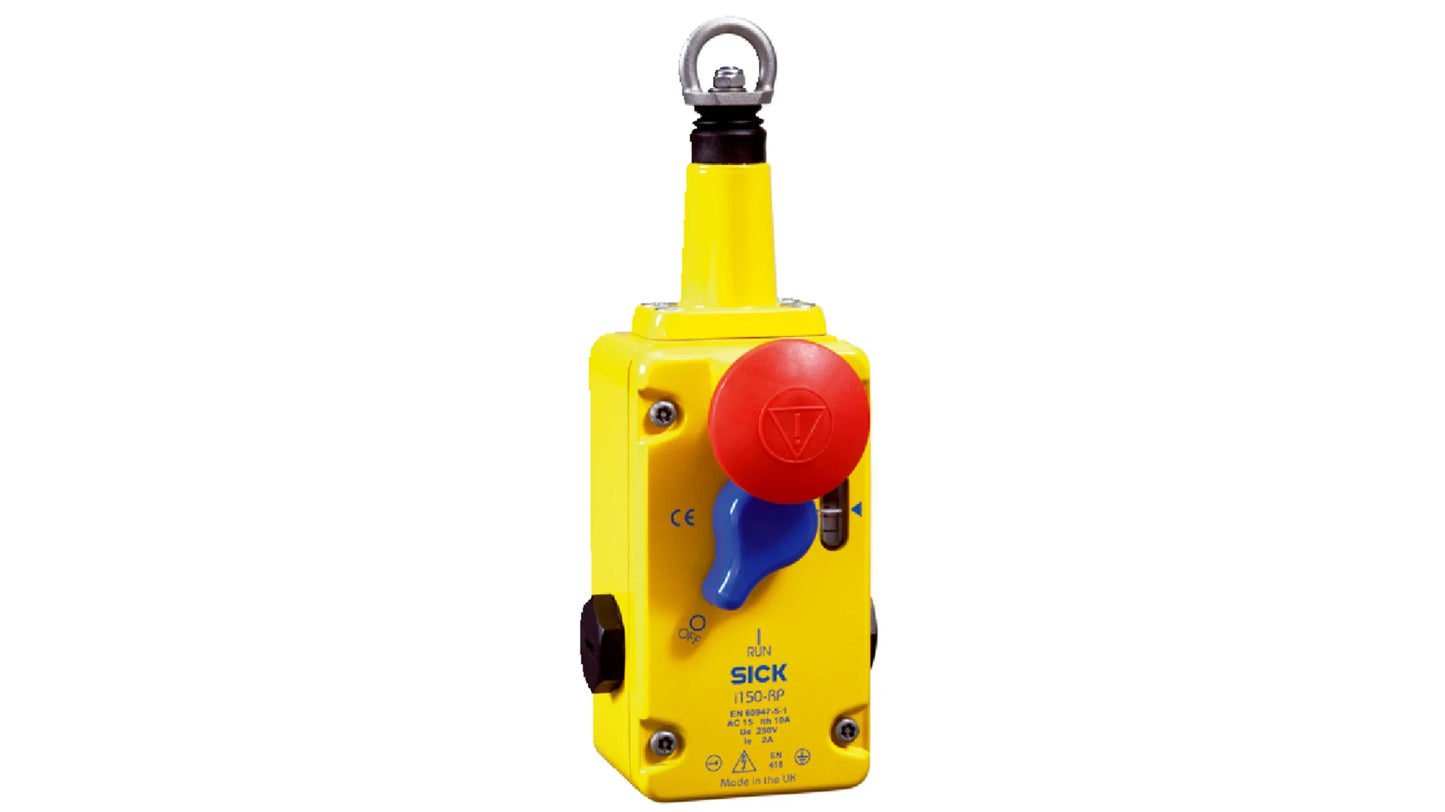

SICK i150 Rope Pull Switch, 3NC/1NO
SICK i150 Rope Pull Switch, 3NC/1NO
SKU:285-9587
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
|
Attribute
|
Value
|
|---|---|
| Normal State Configuration | 3NC/1NO |
| IP Rating | IP65 |
| Series | i150 |
| Length | 203mm |
| Width | 85mm |
| Depth | 69mm |
| Housing Material | Metal |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| Conduit Entry | M20 |
| Standards Met | CE |
| Maximum DC Voltage | 24V dc |
| Dimensions | 69 x 203 x 85mm |
| Maximum Operating Temperature | +80°C |
| Maximum AC Voltage | 240V ac |
SICK i150RP Rope Pull Switch 75m
Reliable Emergency Stop Over Long Distances
The SICK i150RP Rope Pull Switch stops dangerous machine movements quickly over distances up to 75 meters. Install the rope along conveyors or exposed machine sections to protect hazardous areas that do not have physical guards. As a result, operators can trigger an emergency stop from anywhere along the rope.
Moreover, the switch activates not only when someone pulls the rope but also if the rope breaks. Therefore, it ensures continuous safety monitoring across the entire protected area.
Safe and Responsive Operation
In normal conditions, the rope stays under proper tension. However, when an operator pulls the rope—or if it becomes slack—the safety contacts open immediately. Consequently, the system shuts down without delay.
A rotary unlocking lever allows quick and controlled resetting after activation. In addition, the integrated emergency stop pushbutton gives users another way to stop the machine instantly.
Durable Industrial Design
The i150RP features a rugged metal housing with a built-in rope tension display. Because of its strong construction, it performs reliably in demanding industrial environments.
You can choose between an M20 x 1.5 cable entry gland or a Flexi Loop-compatible M12 connector, depending on the variant. Furthermore, the slow-action switching elements with four contacts provide stable and accurate performance.
Key Benefits
-
Trigger emergency stop from any point along the rope
-
Cover distances up to 75 meters
-
Reduce installation costs with fewer switches
-
Adjust rope tension easily
-
Improve diagnostics with additional contacts
Applications
Use the i150RP on machines and systems without physical guards. For example, it protects conveyor belts, assembly lines, and feed systems. Consequently, it provides reliable emergency stop coverage across large industrial areas.
