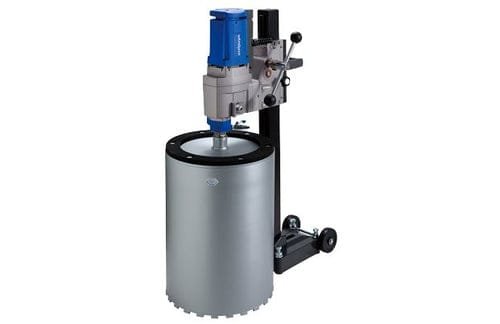

Shibuya Coring Machine 16" 3450W 240V (Made in Japan) C/W Drill Stand | Model : CM1-TS-405

Shibuya Coring Machine 16" 3450W 240V (Made in Japan) C/W Drill Stand | Model : CM1-TS-405

CM1-TS-405

$ 4,349.10 SGD
$ 4,349.10 SGD
Sale Sold out
Shipping calculated at checkout.

Request A Quotation

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Contact Us

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

SHIBUYA Coring Machine 16" 3450W 240V (Made in Japan) C/W Drill Stand | Model : CM1-TS-405 Applications and Features Ideal machine which covers all range up to 400 mm core drilling jobs. Multi-position water swivel inlet for convenience. Right and left hand feed handle positions. Built-in on/off switch with motor overload protection. Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage. (220-240V only) Normal Stand Column: 1003 mm (39″) with 633 mm (25″) stroke. AB61 Column: 1060 mm (41″) with 655 mm (26″) stroke. 60 mm (2-3/8″) square column. Tool kit including wrenches and allen keys. Specifications Rated Input 2,3,450 W (220-240 V) Voltage 220-240 V, 50 Hz Speed 3 Spindle Revolutions at No Load 3350 / 800 / 1600 rpm (220-240 V) Spindle Revolutions at Rated Load 2200 / 500 / 950 rpm (220-240 V) Spindle Thread UNC 1 -1/4"・A-Rod Weight H2231 w carriage block: 17.8 kg・TS-405: 14.8 kg Height 1003 mm・1060 mm (AB61) Base Size 176 x 275 mm・186 x 250 mm (AB61) Available Stroke 633 mm・655 mm (AB61)   Standard Tool Kit Allen Key 4 and 6 mm Ratchet Wrench 19 x21 mm Single-End Spanner 36 mm Nut Driver 7 mm Core Removal Wedge Lasso W1/2″ Square Washer   Maximum Bit Capacity: 400 mm (16") with 30 mm Spacer
View full details

About the brand

Shibuya · Japan

Shibuya is a Japanese manufacturer of diamond core drilling equipment. The Shibuya range on Delight includes 10-inch and 16-inch coring machines with drill stands, made in Japan, for drilling holes in concrete and masonry.
