S6

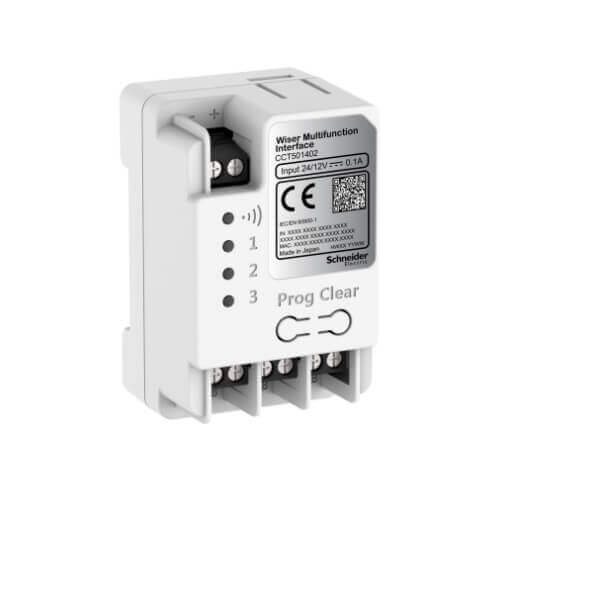

Schneider Wiser Multifunction Interface

Schneider Wiser Multifunction Interface

SKU SKU:CCT501402

Regular price $199.00 USD
Regular price $213.00 USD Sale price $199.00 USD
Sale Sold out
Shipping calculated at checkout.

Technical Details:

Datasheet

Description:

Wiser offers intelligent integration of home control devices and provides an enriching smart home journey thanks to Wiser by SE app. Wiser Multifunction Interface with RTC-battery set in color white controls the centralized HVAC and floor heating systems and is compatible with the Wiser Hub. It benefits from the Zigbee/RS485 network interface and can be controlled via the Wiser by SE app and webpage. This device is powered by a 2-pin terminal block and has 4 LEDs. It can be mounted on the DIN rail. This device is 46 mm in width, 77 mm in height and 41 mm in depth. With a supply voltage of 12 V and 24 V, the IP rating of this device is IP20. By satisfying the EN/IEC 60669-2-4, EN/IEC 60730-2-13 standard, this device is CE certified. This Wiser Multifunction Interface is mercury free.

Specifications:

Main
range Wiser
product name Wiser Multifunction Interface
product or component type Hub
device application Zigbee/RS485 network interface
Complementary
range compatibility Wiser Zigbee/IP gateway
Wiser
Colour White
communication network type RS485
ZigBee - 2.4 GHz conforming to IEEE 802.15.4
connector type Connector(s)3 x 2-pin terminal block for RS485 network
connector(s)1 x 2-pin terminal block for external supply
[Us] rated supply voltage 12 V DC, <100 mA
24 V DC, <100 mA
realtime clock With RTC-battery set
local signalling 4 LEDs (green/red/orange)
width 46 mm
Height 77 mm
Depth 41 mm
