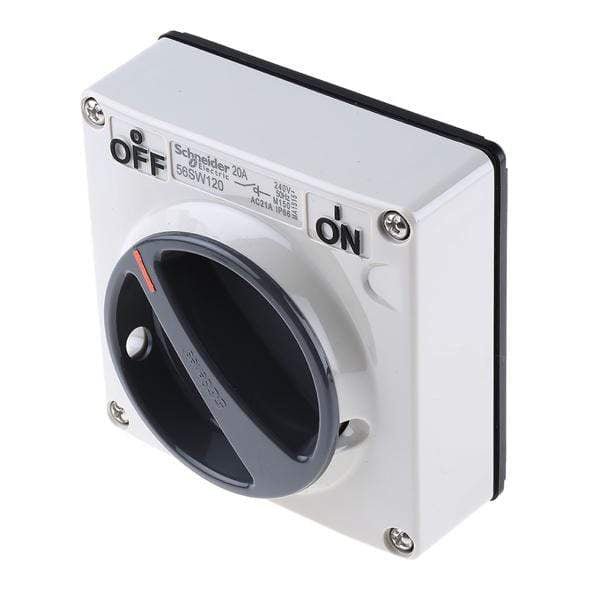

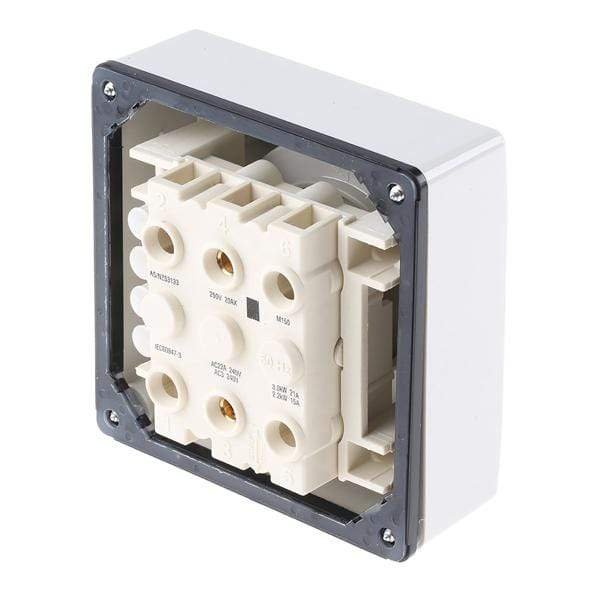

Schneider Electric Grey 20A Rotary Light Switch IP66
Schneider Electric Grey 20A Rotary Light Switch IP66
SKU SKU:3399735
Regular price
$ 157.00 SGD
Regular price
$ 170.00 SGD
Sale price
$ 157.00 SGD
Unit price
/
per
Shipping calculated at checkout.
106 in stock
Couldn't load pickup availability
Share
Technical data sheets
*Check stock before ordering. Lead time 4 working days.*
Product Details
Rotary Switch Modules
Can be mounted on either deep or shallow boxes
Rotating switches give clear indication of status
Padlockable in OFF position
Terminal capacity 2.5mm2
IEC529; BS5490
Approvals
ENV1; ENV2; ENV5
Standards
IEC529; BS5490
Supplied with
M20; M25; M32; M40
IP66 Watertight
Wiring accessories available in pre-built or modular component form for maximum flexibility. Ideally suited for domestic, commercial or industrial applications.
Synthetic gaskets provide IP66 protection
Manufactured from polycarbonate for maximum impact resistance
Specifications
| Attribute | Value |
| Switch Type | Rotary |
| Number of Gangs | 1 |
| Number of Poles | 1 |
| Current Rating | 20 A |
| IP Rating | IP66 |
| Colour | Grey |
| Material | Polycarbonate |
| Voltage Rating | 250 V |
| Length | 107 mm |
| Depth | 104 mm |
| Width | 101 mm |
