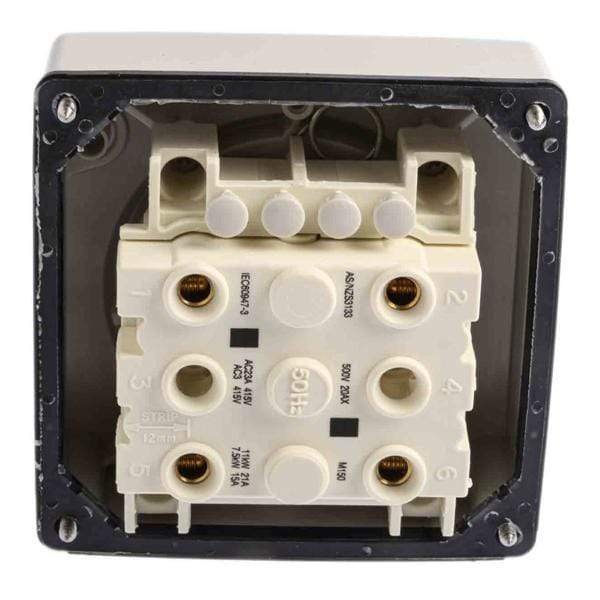

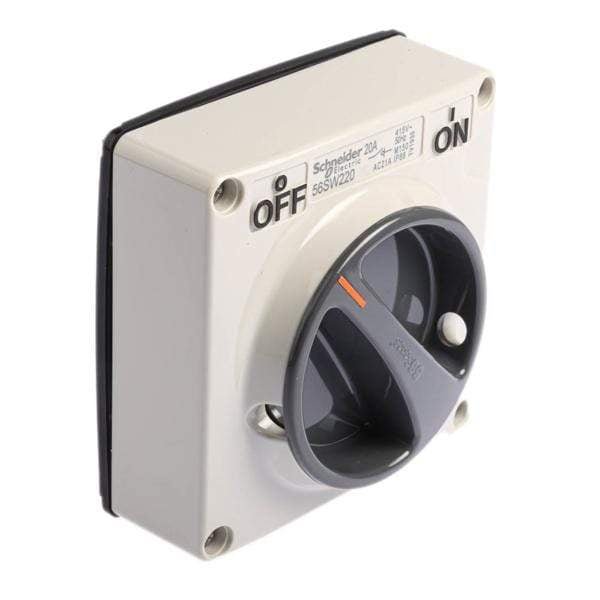

Schneider Electric Grey 20A Flush Mount Rotary Light Switch IP66 x2Pcs
Schneider Electric Grey 20A Flush Mount Rotary Light Switch IP66 x2Pcs
SKU:3400295
Out of stock
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
Technical data sheets
*Check stock before ordering. Lead time 4 working days.*
Product Details
Rotary Switch Modules
Can be mounted on either deep or shallow boxes
Rotating switches give clear indication of status
Padlockable in OFF position
Terminal capacity 2.5mm2
IEC529; BS5490
Approvals
ENV1; ENV2; ENV5
Standards
IEC529; BS5490
Supplied with
M20; M25; M32; M40
IP66 Watertight
Wiring accessories available in pre-built or modular component form for maximum flexibility. Ideally suited for domestic, commercial or industrial applications.
Synthetic gaskets provide IP66 protection
Manufactured from polycarbonate for maximum impact resistance
Specifications
| Attribute | Value |
| Switch Type | Rotary |
| Number of Poles | 2 |
| Mount Type | Flush |
| Current Rating | 20 A |
| IP Rating | IP66 |
| Colour | Grey |
| Material | Polycarbonate |
| Voltage Rating | 500 V |
| Length | 101 mm |
| Width | 101 mm |
| Depth | 98 mm |
