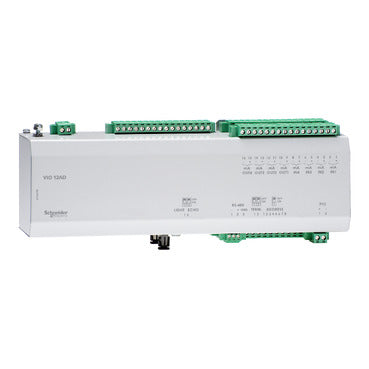

Schneider Easergy P3 accessory VIO12ABSE 24-230V RTD module 12 RTD inputs RS485
Schneider Easergy P3 accessory VIO12ABSE 24-230V RTD module 12 RTD inputs RS485
SKU SKU:REL52812
Regular price
$ 3,351.00 SGD
Regular price
$ 3,652.59 SGD
Sale price
$ 3,351.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Lead time 18-19 weeks
This analog temperature module for easergy P3 is used to connect temperature sensors from the field to the Easergy P3 devices using a communication port RS485 by twist-pair or fiber optic. The module accepts supply voltage ranging from 24 to 230VAC/VDC. The degree of protection is IP20. The module can be mounted using DIN-rail.
| Product or component type | Analog temperature module |
|---|---|
| Mounting support | Wall mounted 35 mm symmetrical DIN rail |
| [Us] rated supply voltage | 24...230 V AC/DC |
| Communication port support | Serial link |
|---|---|
| Number of inputs | 12 RTD (temperature sensor) |
| Temperature probe type | Pt 100, Ni 100, Ni 120, Cu 10 |
| Ambient air temperature for operation | 0…55 °C |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.7 cm |
| Package 1 Width | 9.8 cm |
| Package 1 Length | 26.2 cm |
| Package 1 Weight | 1.967 kg |
