Royce Thompson Electric Lighting Controller Sensor Switch Wall Mount x2Pcs

Technical data sheets

Datasheet

81mm

85.5mm

*Check stock before ordering. Lead time 4 working days.*

Product Details

Electronic Control Kit (Silicon Photodiode)

Solid-state electronic lighting controller utilising an optically-filtered silicon photodiode sensor for high accuracy and repeatability

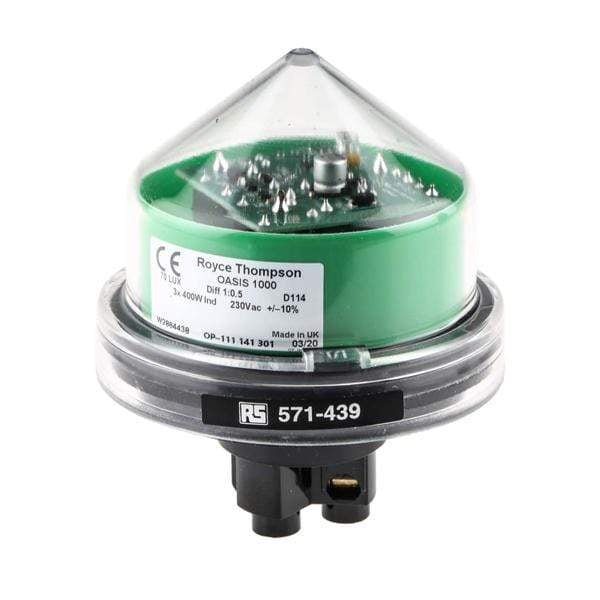

Fitted with a conical, UV stable, impact resistant, translucent cover
Silicon photodiode light sensor
Low power consumption, day or night
Omni-directional

Supplied with

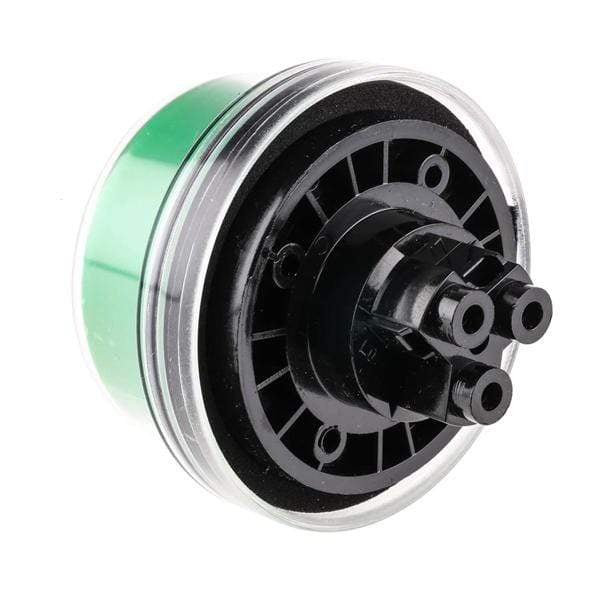

NEMA rotaloc socket, wall mounting bracket, gaskets and fixings

Daylight Lighting Controllers

These controllers automatically turn lights 'ON' and 'OFF' in response to changes in ambient light levels, primarily the transition from day to night and vice-versa. The more advanced types (see note below) have inbuilt logic to minimise false triggering, whereas the remainder have inbuilt time delays or higher 'OFF' thresholds, to prevent on/off cycling. As a general rule, these controllers should be sited such that they are not illuminated, by the light they are controlling. Nominal supply voltage is 230Vac.,Note regarding energy-saving negative-hysteresis controllers,Where figures for the 'OFF' threshold are lower than for the 'ON' threshold, the sensor is designed such that four thresholds are actually monitored. These are: dusk, the middle of the night, dawn and the middle of the day. Monitoring at times other than dusk and dawn enables the sensor to determine what it should be looking for next, minimising false triggering and improving overall controller operation.

Specifications

81mm

85.5mm
