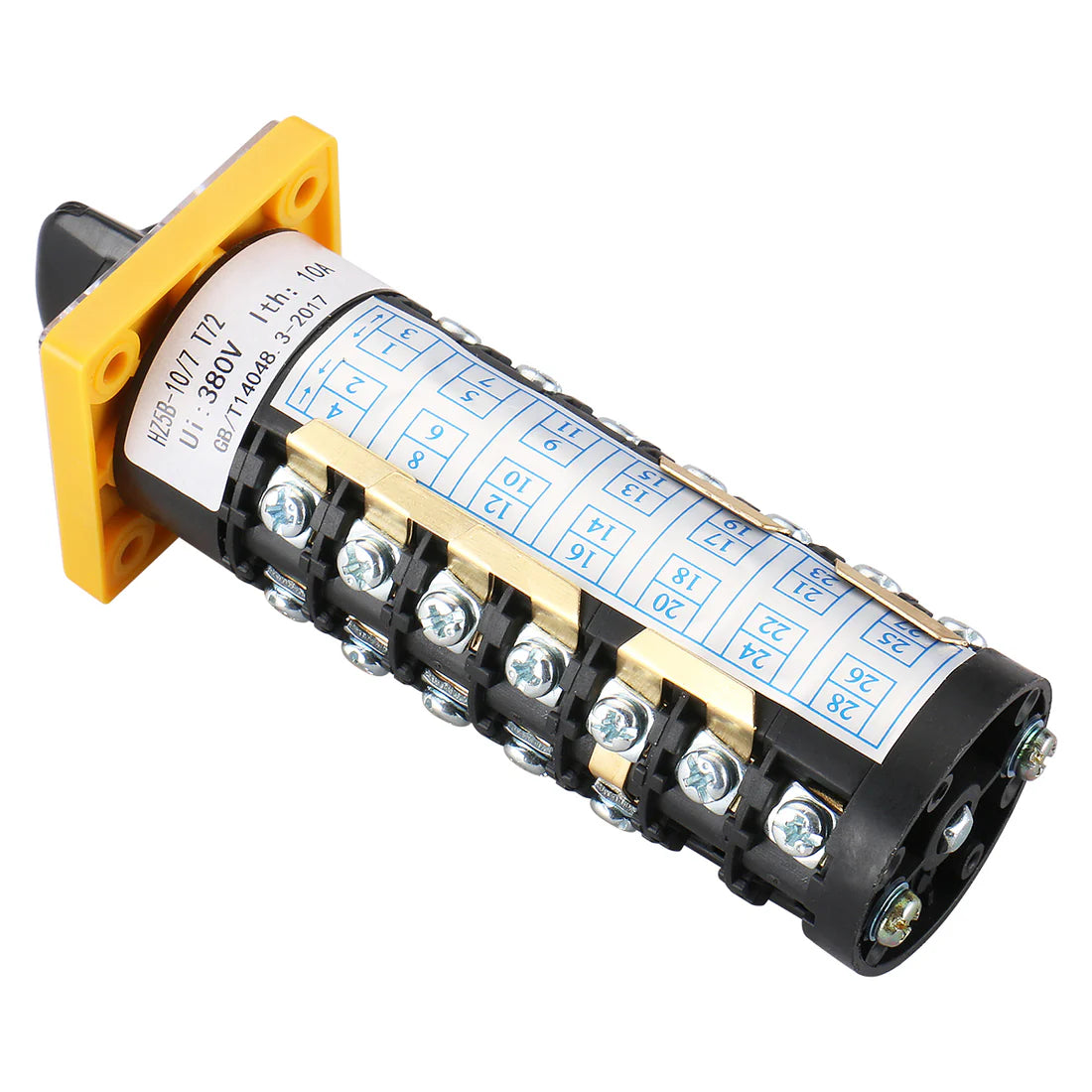

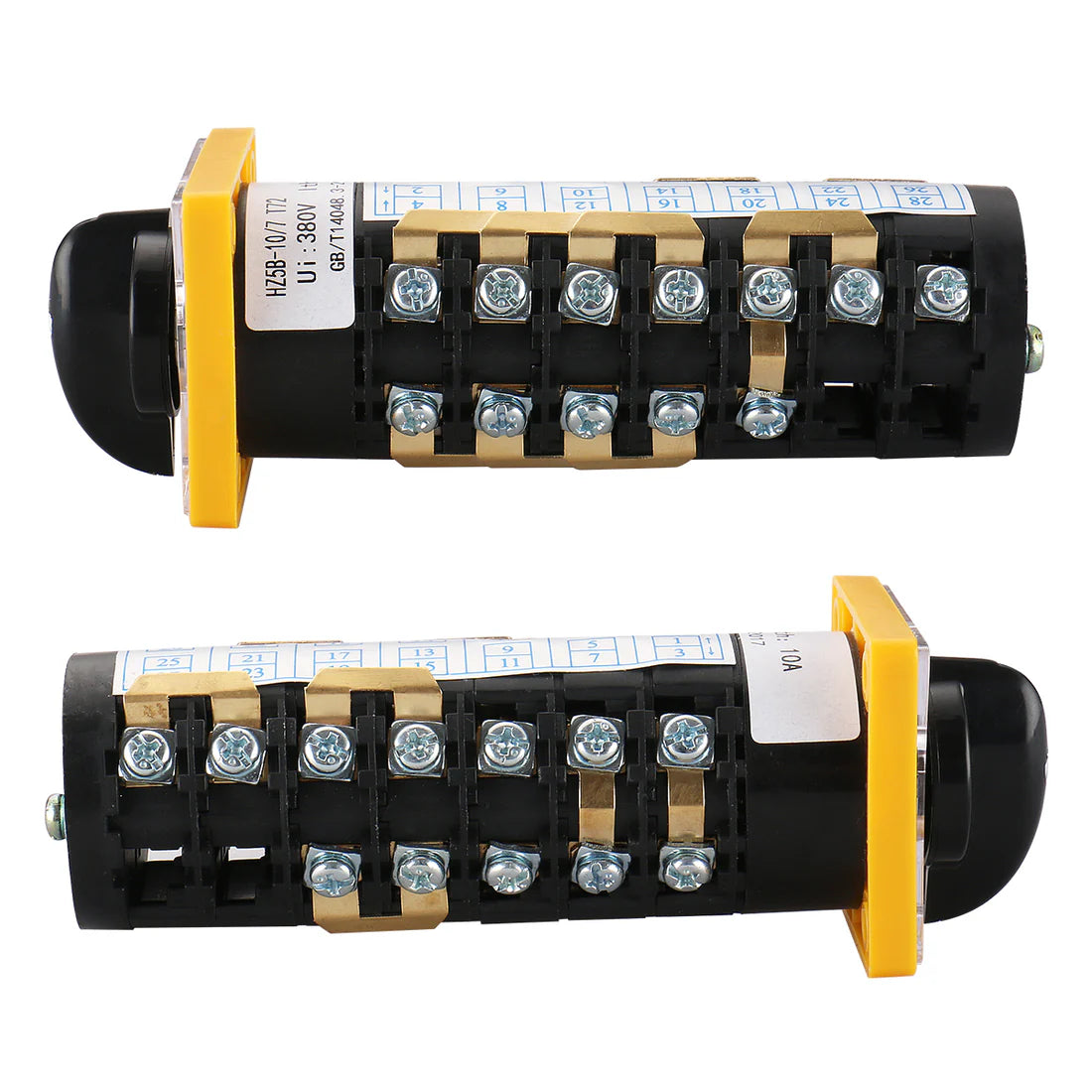

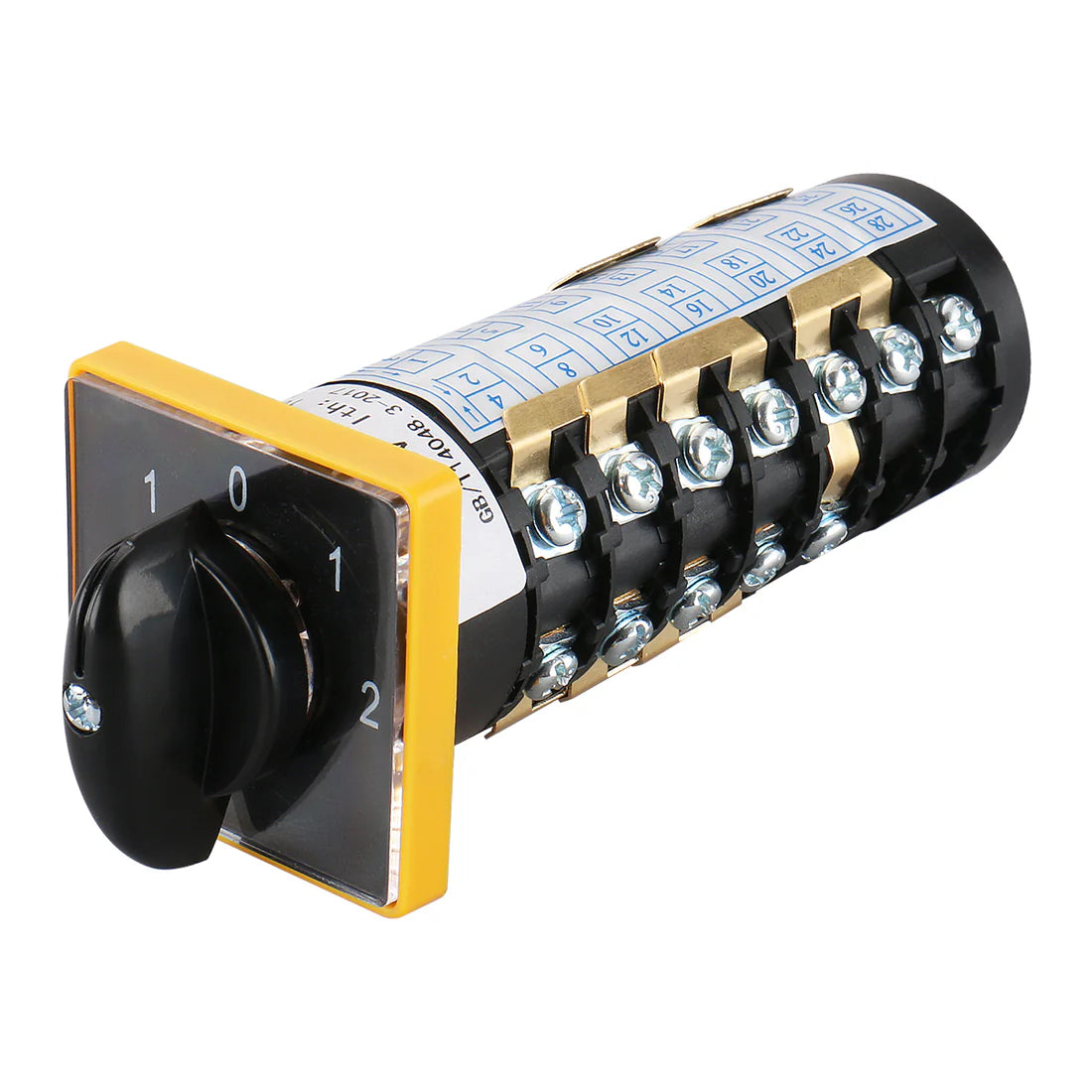

Baomain Rotary Cam Changeover Switch HZ5B-10/7 T72 AC 380V 3KW 24 Screw Terminals 5 Position

Description:

Model No. :  HZ5B-10/7 T72
Switch Style: Changeover Switch

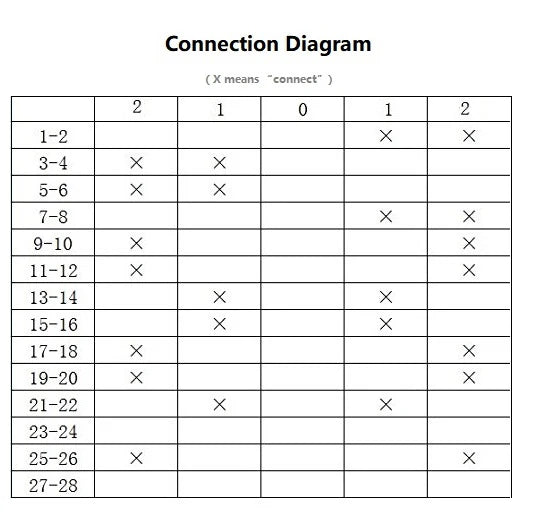

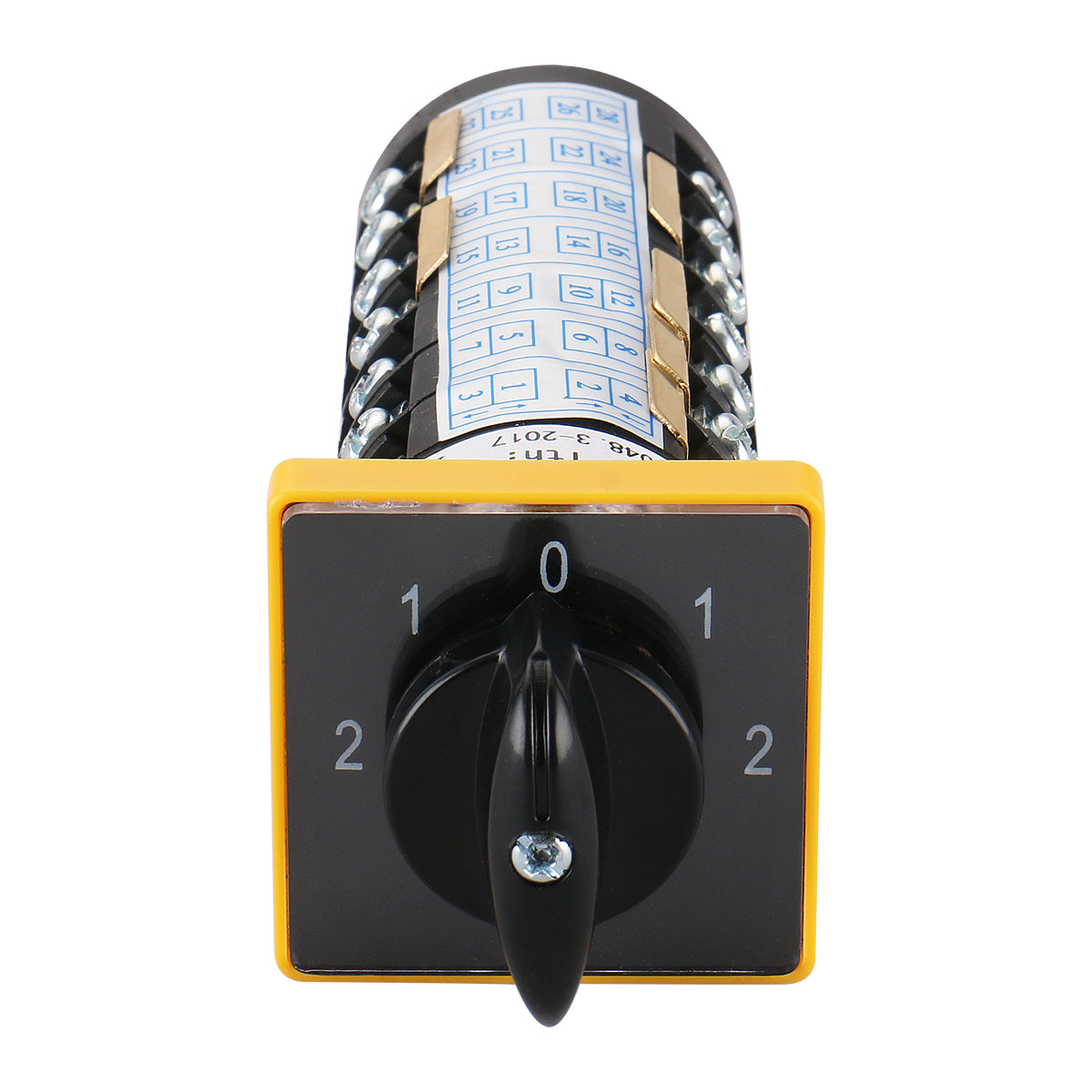

Positions : 2-1-0-1-2 （5 Positions）
Terminal Number : 24 Terminals
Ue : 380V ; Ith : 10A
Weight :  249g
Material : Plastic
Connector Type:    Screw
Measurement System: Imperial , Metric

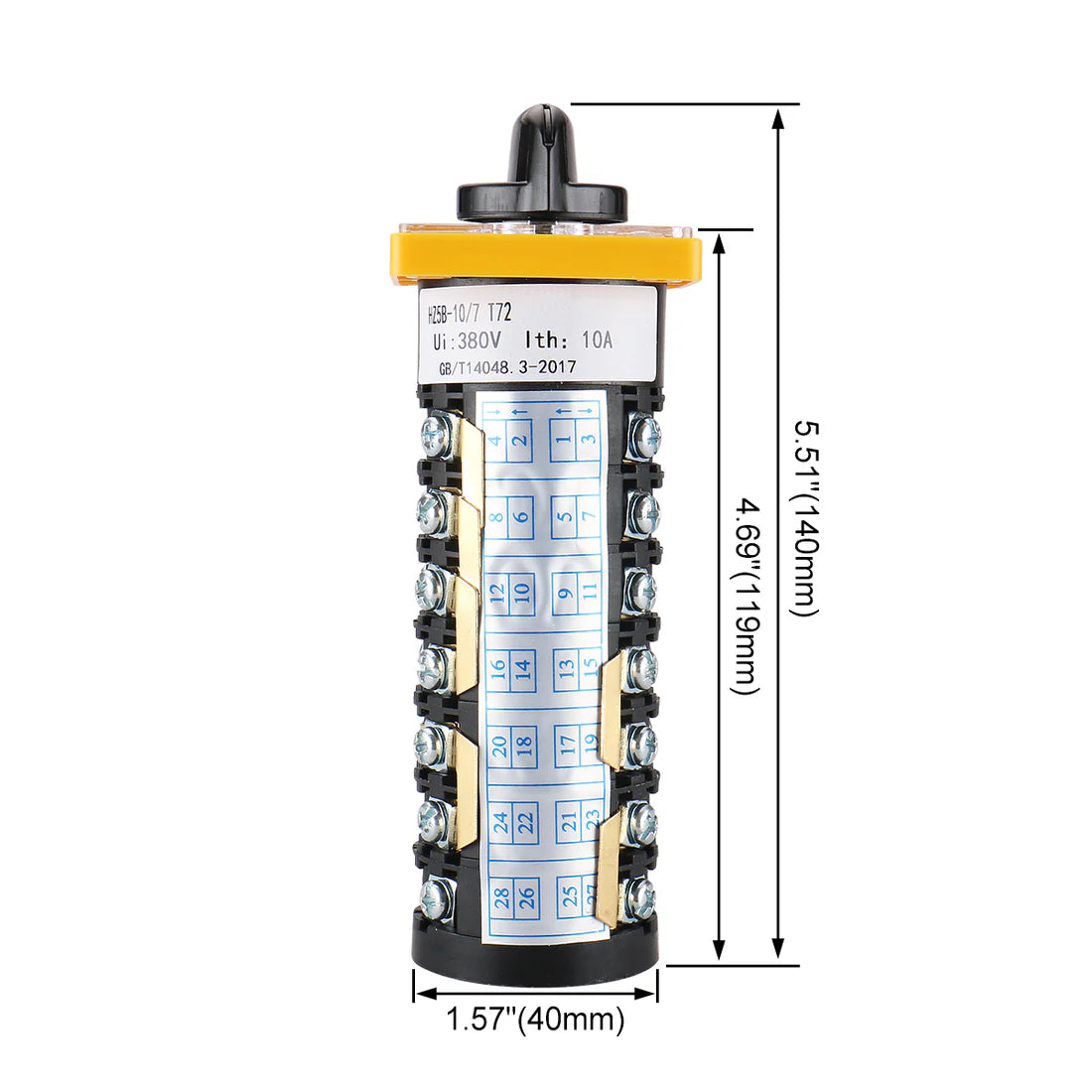

Size: 48 x 48 x 163mm / 1.9" x 1.9" x 6.4"(L*W*H)
Package Content:1 x Changeover Cam Switch,4 x Screws
Certification: CE listed
