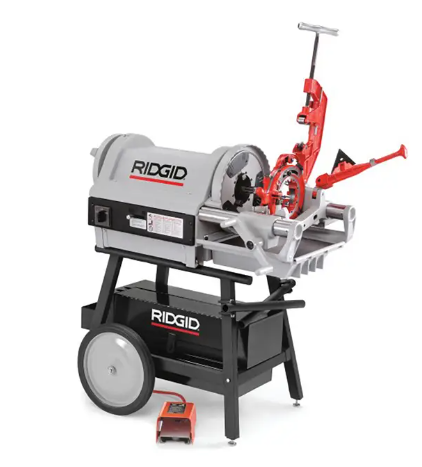

Ridgid 1/2"-4" BSPT 220V 50HZ #1224 Threading Machine

4” threading machine

The RIDGID Model 1224 Threading Machine is a heavy-duty, industrial pipe-threading machine designed for reliable and accurate threading of pipes and conduit. The BSPT configuration supports pipe sizes from 1/2" to 4", making it suitable for plumbing, mechanical, industrial piping, maintenance, and fabrication applications. RIDGID specifies the 1224 with an induction motor, hammer-type chuck, automatic through-head lubrication, and two operating speeds for different pipe sizes.

Key Features:

• Threading capacity: 1/2"–4" BSPT
• Power supply: 220V, 50Hz, single phase
• Motor: Heavy-duty induction motor
• Speeds: 36 RPM for smaller pipe sizes and 12 RPM for 2-1/2"–4" pipe
• Die heads: BSPT die heads for producing tapered pipe threads
• Chuck: Hammer-type chuck with replaceable rocker-action jaw inserts
• Lubrication: Automatic, constant-flow through-head oiling system
• Controls: Forward/Reverse/Off control with integral foot switch
• Applications: Threading black, galvanized, stainless-steel, plastic-coated pipe, IMC and heavy-wall conduit
• Weight: Approximately 231 kg (509 lb), depending on configuration
