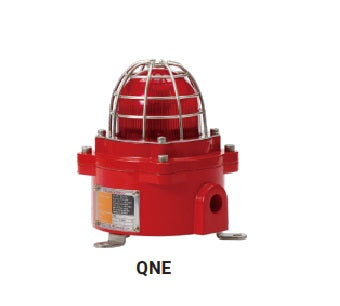

Qlight QWP-QNE-24 Red Color DC 24V Explosion Proof Led Signal Light

Datasheet:

Ex stock subject to prior sales.

Description:

- Explosion proof, multifunctional, and compact LED signal light designed for use
 in explosive gas environments with Ex d C rating
- Features excellent shock and vibration resistance, maintenance significantly
 reduced with long-lasting LED light source
- Features superior durability with aluminum housing(QNE)
- STS housing provides superior durability and corrosion resistance(QNE-SUS)
- Fully enclosed structure with protection rating of IP66

Materials Lens-Tempered glass, Filter-PC,
Bracket-STS316L, Protection cage-STS316,
Housing-Al(QNE), STS316L(QNE-SUS)
Ambient operating temperature
-40°C ≤ Tamb ≤ +60°C(T5)
-40°C ≤ Tamb ≤ +50°C(T6)
Explosion protection rating
IECEx - Ex db IIC T6/T5 Gb, IP66
ATEX - II 2G Ex db IIC T6/T5 Gb, IP66
NEPSI, CCC - Ex db IIC T5/T6 Gb
KCs - Ex d IIC T6/T5, IP66
Certificates IECEx, ATEX, NEPSI, KCs, CCC
Housing standard color Red, MUNSELL No. 7.5BG 7/2
Cable entry 1/2″ NPT
Flashing rate(LF type) 60-80 flashes/min.
Strobe rate(LS type) 70-80 flashes/min.
Simulated revolving rate(LR type) 120-140RPM
