Qlight MULTI FUNCTION LED SIGNAL LIGHT DIA.80MM 12/24VDC BLUE

Qlight MULTI FUNCTION LED SIGNAL LIGHT DIA.80MM 12/24VDC BLUE

QW-MFL80-12/24-B

PDF Datasheet

$ 66.00 SGD
$ 71.94 SGD $ 66.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Contact Us

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

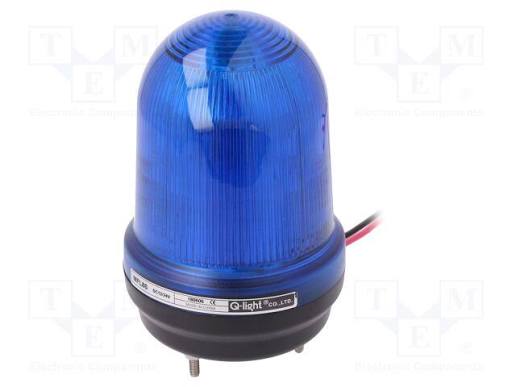

The QLIGHT MFL80 is a compact, high-visibility multi-function LED signal light designed for industrial machinery, control panels, automation systems, and equipment status indication. With an approximately 80 mm diameter, the unit provides multiple visual signaling modes, including steady, flashing, strobe, and simulated revolving light functions.

The light operates on 12–24 VDC and features an energy-efficient LED light source with excellent visibility and long service life. Its robust PC lens and ABS housing construction provides reliable performance in demanding industrial environments, while the IP65 protection rating offers protection against dust and water ingress.

The blue version is suitable for clear visual status, warning, or operational indication where blue signaling is required. An optional built-in buzzer is available with a maximum sound level of 80 dB at 1 metre.

Key Features:

  • Brand: QLIGHT
  • Model: MFL80
  • Type: Multi-Function LED Signal Light
  • Lens Diameter: Approx. Ø80 mm
  • Supply Voltage: 12–24 VDC
  • Color: Blue
  • Functions: Steady, Flashing, Strobe & Simulated Revolving
  • Flashing Rate: 60–80 flashes/min
  • Strobe Rate: 70–80 flashes/min
  • Simulated Revolving Rate: 120–140 flashes/min
  • Protection Rating: IP65
  • Lens Material: Polycarbonate (PC)
  • Housing Material: ABS
  • Operating Temperature: -30°C to +50°C
  • Optional Buzzer: Max. 80 dB at 1 m
  • Compliance: CE / RoHS
  • Approx. Weight: 0.28 kg
  • Suitable for industrial automation, machinery, control systems and equipment signaling
