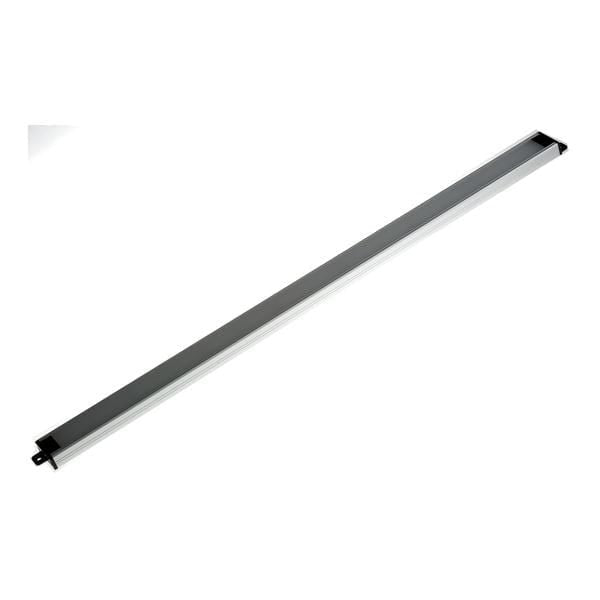

PowerLED 24V DC Connect LED Cabinet Light IP44, 120° x4Pcs
PowerLED 24V DC Connect LED Cabinet Light IP44, 120° x4Pcs
SKU SKU:7868963
22 in stock
Couldn't load pickup availability
Share
Technical data sheets
Data Sheet
*Check stock before ordering.Lead time 4 working days*
Product Details
LED Light Bars and Accessories CONNECT Series
The CONNECT series of slim line LED bars from PowerLED, are suitable for a wide range of lighting applications including: cabinet lighting, up lighting, accent lighting, etc. These LED light bars can be easily linked up in multiple configurations, using the PowerLED connectors, allowing up to 4 meters of lighting from 1 driver.
Slim line bar suitable for cabinet lighting, up lighting, accent lighting etc.
Easy installation, multiple configurations
Simple and safe low voltage on/off control
Reverse polarity protected
Simple link up capability, allowing up to 4 metres of lighting from 1 driver
Rugged Aluminium extrusion with easy fit mounting points
Suitable for 24VDC applications
Suitable for 24 VDC vehicle applications
Constant power technology, ensures balanced light output across each fitting
Note
Maximum single run 4 metres when using standard PS1 input cable and F180 connections.
PowerLED drivers and Connect connections must be used to provide power for the Connect series of LED light bars.
Specifications
3.2W, 2700-2900K - 223.6mm
| Attribute | Value |
| Lamp Type | LED |
| Type | Cabinet Light |
| Voltage Rating | 24 V dc |
| Length | 223.6 mm |
| Width | 30 mm |
| Depth | 12.3 mm |
| Dimensions | 223.6 x 30 x 12.3 mm |
| Wattage | 3.2 W |
| Colour Temperature | 2700 → 2900K |
| Finish | White |
| Lamp Supplied | Yes |
| EU Energy Efficiency Rating | A++ |
3.2W, 6000-6500K - 223.6mm
| Attribute | Value |
| Lamp Type | LED |
| Type | Cabinet Light |
| Voltage Rating | 24 V dc |
| Length | 223.6 mm |
| Width | 30 mm |
| Depth | 12.3 mm |
| Dimensions | 223.6 x 30 x 12.3 mm |
| Wattage | 3.2 W |
| Colour Temperature | 6000 → 6500K |
| EU Energy Efficiency Rating | A++ |
| Finish | White |
| Lamp Supplied | Yes |
5W, 6000-6500K - 323.6mm
| Attribute | Value |
| Lamp Type | LED |
| Type | Cabinet Light |
| Voltage Rating | 24 V dc |
| Length | 323.6 mm |
| Width | 30 mm |
| Depth | 12.3 mm |
| Dimensions | 323.6 x 30 x 12.3 mm |
| Wattage | 5 W |
| Colour Temperature | 6000 → 6500K |
| Finish | White |
| EU Energy Efficiency Rating | A+ |
| Lamp Supplied | Yes |
9W, 2700-2900K - 523.6mm
| Attribute | Value |
| Lamp Type | LED |
| Type | Cabinet Light |
| Voltage Rating | 24 V dc |
| Length | 523.6 mm |
| Width | 30 mm |
| Depth | 12.3 mm |
| Dimensions | 523.6 x 30 x 12.3 mm |
| Wattage | 9 W |
| Colour Temperature | 2700 → 2900K |
| EU Energy Efficiency Rating | A+ |
| Lamp Supplied | Yes |
| Finish | White |
9W, 6000-6500K - 523.6mm
| Attribute | Value |
| Lamp Type | LED |
| Type | Cabinet Light |
| Voltage Rating | 24 V dc |
| Length | 523.6 mm |
| Width | 30 mm |
| Depth | 12.3 mm |
| Dimensions | 523.6 x 30 x 12.3 mm |
| Wattage | 9 W |
| Colour Temperature | 6000 → 6500K |
| Lamp Supplied | Yes |
| Finish | White |
| EU Energy Efficiency Rating | A+ |
