Power LED 300/800/1200W Wall Mount Outdoor PIR Sensor x3Pcs

Power LED 300/800/1200W Wall Mount Outdoor PIR Sensor x3Pcs

SKU SKU:8281046

Regular price $ 135.00 SGD
Regular price $ 135.00 SGD Sale price $ 135.00 SGD
Sale Sold out
Shipping calculated at checkout.

Low stock: 9 left

Technical data sheets

Datasheet

*Check stock before ordering. Lead time 4 working days.*

Product Details

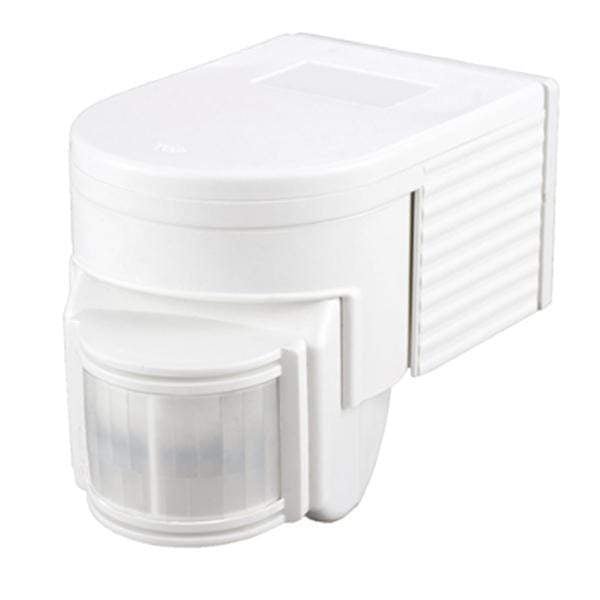

Power LED PIR700 Series of Wall Mount Outdoor PIR Sensors

The Power LED PIR700B is a Wall Mount Outdoor PIR Sensor, which comes in black or white finish. This PIR sensor is designed for use with a number of light fittings, including LED, CFL, halogen and Incandescent and suitable for both indoor and outdoor use. The PIR700B sensor has passive infrared sensing technology using a pyro-electric detector with 180 degree coverage and up to 12m detection. The PIR sensor has a detection speed of 0.6 - 1.5ms and adjustable time delay settings from 10 seconds through to 7 minutes, so you can control how long the attached light fittings remain illuminated for. The PIR700B PIR sensor has light level settings from 3 to 2000 lux. Ideal applications are in security lighting, corridor function.

LED flood light compatible up to 300 Watts
180 degree coverage with up to 12 meter detection
Adjustable Time delay
Adjustable Ambient light level
Prismatic lens ensures high sensitivity for accurate motion detection
Automatically adjusts to temperature changes keeping sensitivity and coverage consistent
Built in surge protection
Splash proof IP44 rated; suitable for interior or exterior use
0-300W of LED lights
300W of CFL lights
800W of Filament lights
1200W of Incandescent lights

Specifications

Attribute Value
Controller Type Corridor Function, Security Lighting Controller
Sensor Type PIR
Voltage Rating 220 → 240 V ac
Mount Type Wall
Range 0.6 → 1.5 ms
Power Consumption 1.2 kW, 300 W, 800 W, 0 → 300 W
Time Delay 10 s → 7 min
