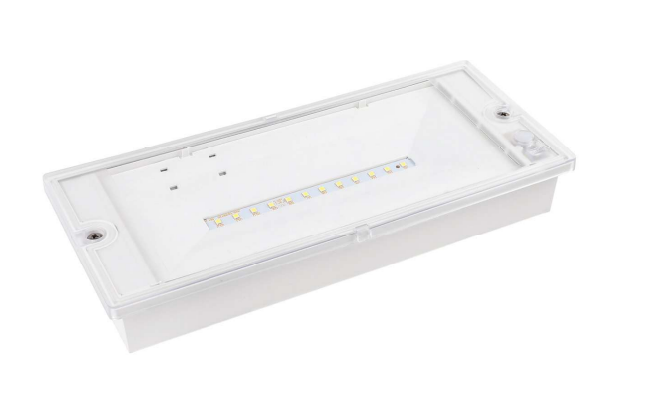

Powercrft EL-LED1NM (NiCd 3Hrs) Non-Maintained LED Emergency Light

TECHNICAL SPECIFICATION

Model No.: EL-LED2

Mode of Operation: Non-Maintained

Lamp: 6W White LED

Rated Duration: 3 Hours

Mains Supply: 220–240 Volts, 50–60Hz

Power Consumption: <0.5W after fully charged

Battery: High Temperature Lithium LiFePO4

Charger: Constant current / Constant voltage, short circuit protected

Charge Monitor: LED

Test Facility: Momentary Test Switch

Safety Features: Low battery voltage cut-off to prevent over-discharge

Fitting Construction: Injection moulded with fire-retardant (UL94), high-impact PC/ABS material

Ingress Protection:

• IP65 for surface or semi-recessed installation
• IP40 for fully recessed installation

Weight: Approx. 0.6 kg

Dimensions: 121 mm (H) × 278 mm (W) × 41 mm (D)

Standards / Compliance: SS IEC 60598-2-22, SS 563
