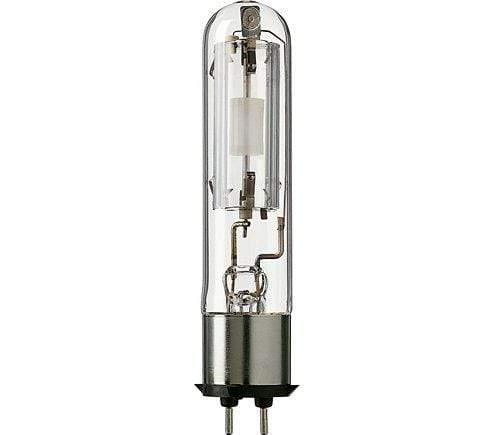

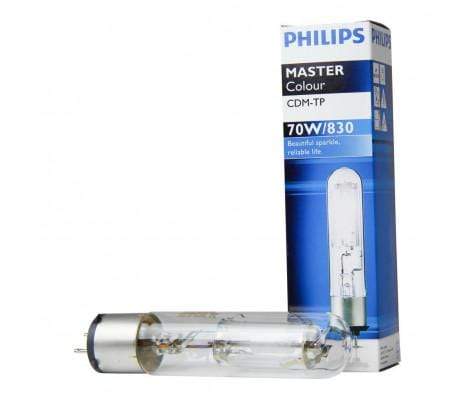

PHILIPS MasterColour CDM-TP x12PCs
PHILIPS MasterColour CDM-TP x12PCs
SKU SKU:928085909230
Regular price
$ 1,377.77 SGD
Regular price
$ 1,474.28 SGD
Sale price
$ 1,377.77 SGD
Unit price
/
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Share
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
UV
Luminaire Design Requirements
| Cap-Base |
PG12-2 [ PG12-2]
|
| Operating Position |
UNIVERSAL [ Any or Universal (U)]
|
| Life to 5% Failures (Nom) |
9000 h
|
| Life to 20% Failures (Nom) |
13000 h
|
| Life to 50% Failures (Nom) |
16000 h
|
| Color Code |
830 [ CCT of 3000K] / 842[CCT of 4200K] / 942[CCT of 4200K]
|
| Luminous Flux (Rated) (Nom) |
6000 lm / 12800 lm / 12000 lm
|
| Color Designation |
Warm White (WW) / Cool White(CW)
|
| Lumen Maintenance 10000 h (Nom) |
65 %
|
| Lumen Maintenance 2000 h (Nom) |
80 %
|
| Lumen Maintenance 5000 h (Nom) |
70 %
|
| Chromaticity Coordinate X (Nom) |
428
|
| Chromaticity Coordinate Y (Nom) |
401
|
| Correlated Color Temperature (Nom) |
3000 K
|
| Luminous Efficacy (rated) (Nom) |
82 lm/W
|
| Color Rendering Index (Nom) |
80
|
| Power (Rated) (Nom) |
70 W / 150 W
|
| Lamp Current Run-Up (Max) |
1.4 A
|
| Lamp Current (EM) (Nom) |
0.98 A
|
| Ignition Peak Voltage (Max) |
5000 V
|
| Ignition Supply Voltage (Min) |
198 V
|
| Re-Ignition Time (Min) (Max) |
15 min
|
| Ignition Time (Max) |
30 s
|
| Voltage (Max) |
98 V
|
| Voltage (Min) |
82 V
|
| Voltage (Nom) |
90 V
|
| Dimmable |
No
|
| Run-Up Time 90% (Max) |
3 min
|
| Bulb Finish |
Clear
|
| Energy Efficiency Label (EEL) |
A+
|
| Mercury (Hg) Content (Nom) |
5.2 mg
|
| Energy Consumption kWh/1000 h |
80 kWh
|
| Pet (Niosh) (Min) |
8 h/500lx
|
| Damage Factor D/fc (Max) |
0.3
|
| Bulb Temperature (Max) |
400 °C
|
| Cap-Base Temperature (Max) |
210 °C
|
