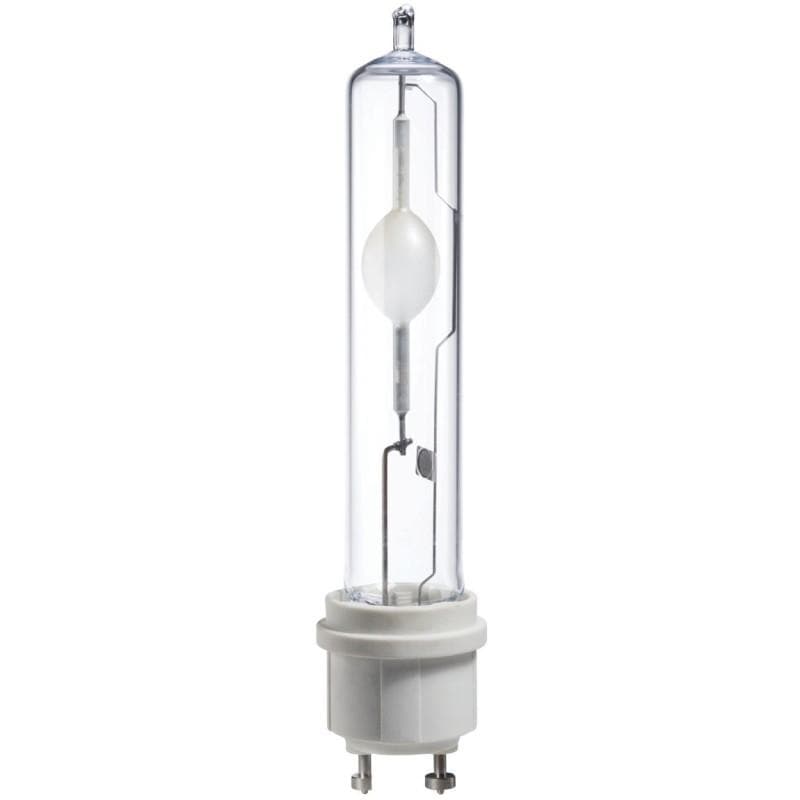

PHILIPS MasterColour CDM-TMW Elite x12PCs
PHILIPS MasterColour CDM-TMW Elite x12PCs
SKU SKU:928601164931
Regular price
$ 1,464.00 SGD
Regular price
$ 1,567.00 SGD
Sale price
$ 1,464.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Share
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
UV
Luminaire Design Requirements
| Cap-Base |
PGZ18 [ PGZ18]
|
| Operating Position |
UNIVERSAL [ Any or Universal (U)]
|
| Life to 5% Failures (Nom) |
12500 h
|
| Life to 10% Failures (Nom) |
16000 h
|
| Life to 50% Failures (Nom) |
30000 h
|
| ANSI Code HID |
C183/E
|
| Color Code |
942 [ CCT of 4200K]
|
| Luminous Flux (Rated) (Min) |
21000 lm
|
| Luminous Flux (Rated) (Nom) |
23000 lm
|
| Color Designation |
Cool White (CW)
|
| Lumen Maintenance 12000 h (Nom) |
90 %
|
| Lumen Maintenance 10000 h (Nom) |
91 %
|
| Lumen Maintenance 2000 h (Nom) |
98 %
|
| Lumen Maintenance 20000 h |
80 %
|
| Lumen Maintenance - 40% Life |
90 %
|
| Lumen Maintenance 5000 h (Nom) |
94 %
|
| Lumen Maintenance - 10% Life |
95 %
|
| Saturated Red |
80
|
| Design Mean Lumens |
20470 lm
|
| Chromaticity Coordinate X (Nom) |
0.381
|
| Chromaticity Coordinate Y (Nom) |
0.374
|
| Correlated Color Temperature (Max) |
- K
|
| Correlated Color Temperature (Min) |
- K
|
| Correlated Color Temperature (Nom) |
3960 K
|
| Luminous Efficacy (Rated) (Min) |
98 lm/W
|
| Luminous Efficacy (rated) (Nom) |
108 lm/W
|
| Color Rendering Index (Min) |
89
|
| Color Rendering Index (Nom) |
92
|
| Power (Rated) (Nom) |
210.0 W
|
| Lamp Current Run-Up (Nom) |
3.2 A
|
| Ignition Supply Voltage (Max) |
4000 V
|
| Ignition Peak Voltage (Max) |
4000 V
|
| Ignition Supply Voltage (Min) |
3000 V
|
| Re-Ignition Time (Min) (Max) |
10 min
|
| Ignition Time (Max) |
180 s
|
| Voltage (Max) |
115 V
|
| Voltage (Min) |
90 V
|
| Voltage (Nom) |
98 V
|
| Run-Up Time 90% (Max) |
1.5 min
|
| Bulb Finish |
Clear
|
| Overall Length (Max) |
7.4 in
|
| Energy Efficiency Label (EEL) |
A+
|
| Picogram Per Lumen Hour |
40.3 pg/lm.h
|
| Mercury (Hg) Content (Max) |
25 mg
|
| Energy Consumption kWh/1000 h |
231 kWh
|
| Pet (Niosh) (Nom) |
34.1 h/500lx
|
| Damage Factor D/fc (Nom) |
0.30
|
| Bulb Temperature (Max) |
600 °C
|
| Cap-Base Temperature (Max) |
250 °C
|
