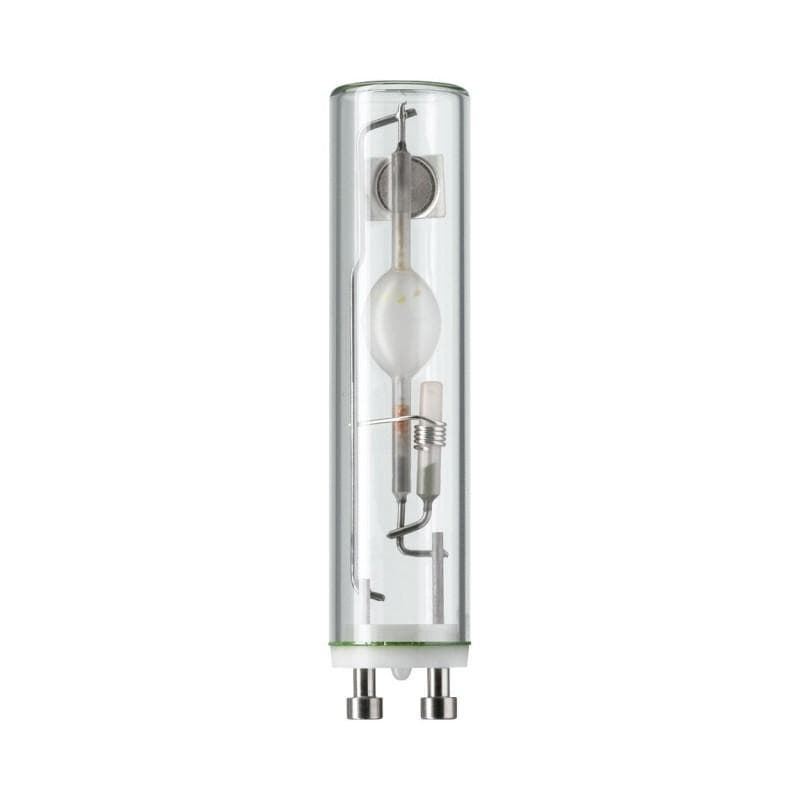

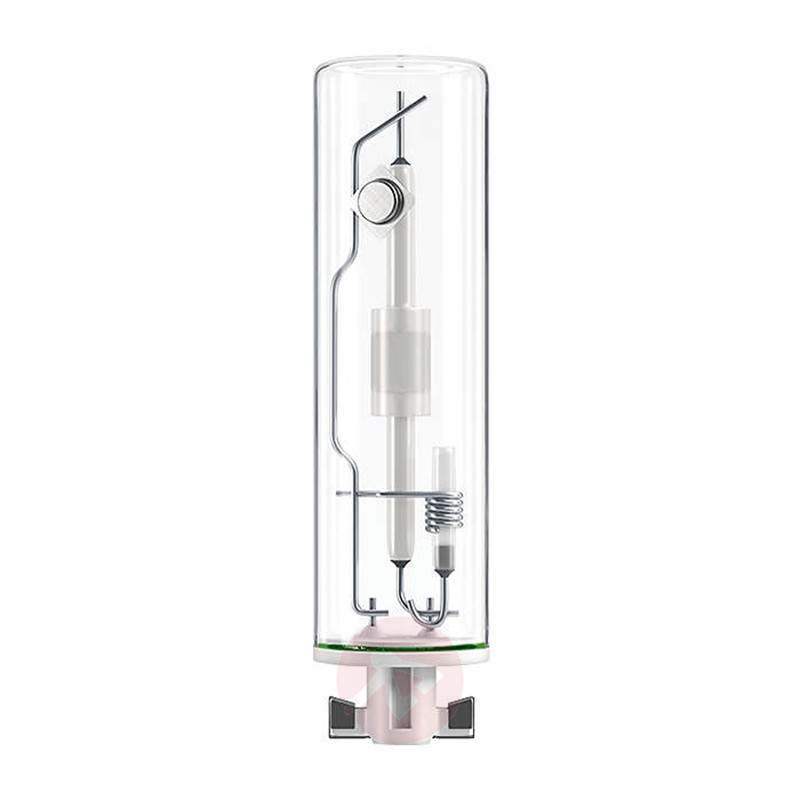

PHILIPS MasterColour CDM-Tm Elite Mini x12PCs
PHILIPS MasterColour CDM-Tm Elite Mini x12PCs
SKU SKU:928087905130
Regular price
$ 948.00 SGD
Regular price
$ 948.00 SGD
Sale price
$ 948.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Share
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
UV
Luminaire Design Requirements
| Cap-Base |
PGJ5 [ PGJ5]/GU6.5
|
| Operating Position |
UNIVERSAL [ Any or Universal (U)]
|
| Life to 5% Failures (Nom) |
9000 h
|
| Life to 10% Failures (Nom) |
10000 h
|
| Life to 20% Failures (Nom) |
11000 h
|
| Life to 50% Failures (Nom) |
12000 h
|
| Color Code |
830 [ CCT of 3000K]
|
| Luminous Flux (Rated) (Nom) |
1650 lm / 3000 lm / 1620 lm / 3600 lm
|
| Color Designation |
Warm White (WW)
|
| Lumen Maintenance 1000 h (Nom) |
80 %
|
| Lumen Maintenance 10000 h (Nom) |
60 %
|
| Lumen Maintenance 2000 h (Nom) |
75 %
|
| Lumen Maintenance 5000 h (Nom) |
65 %
|
| Chromaticity Coordinate X (Nom) |
0.433
|
| Chromaticity Coordinate Y (Nom) |
0.392
|
| Correlated Color Temperature (Nom) |
3000 K
|
| Luminous Efficacy (rated) (Nom) |
75 lm/W
|
| Color Rendering Index (Min) |
84
|
| Color Rendering Index (Nom) |
87
|
| Power (Rated) (Nom) |
20 W / 35 W / 50 W
|
| Lamp Current Run-Up (Max) |
.5 A
|
| Re-Ignition Time (Min) (Max) |
15 min
|
| Ignition Time (Max) |
30 s
|
| Voltage (Max) |
108 V
|
| Voltage (Min) |
95 V
|
| Voltage (Nom) |
100 V
|
| Dimmable |
No
|
| Run-Up Time 90% (Max) |
3 min
|
| Bulb Finish |
Clear
|
| Energy Efficiency Label (EEL) |
A
|
| Mercury (Hg) Content (Nom) |
2.4 mg
|
| Energy Consumption kWh/1000 h |
24 kWh
|
| Pet (Niosh) (Min) |
8 h/500lx
|
| Damage Factor D/fc (Max) |
0.5
|
| Bulb Temperature (Max) |
380 °C
|
| Cap-Base Temperature (Max) |
250 °C
|
