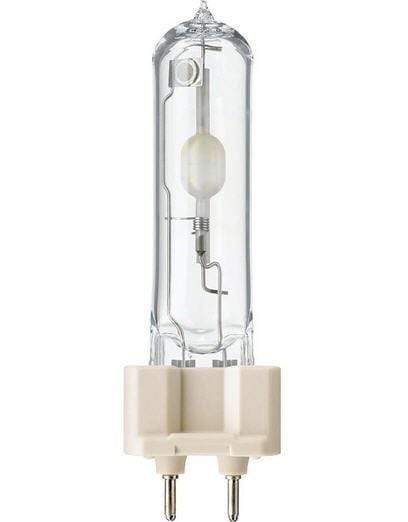

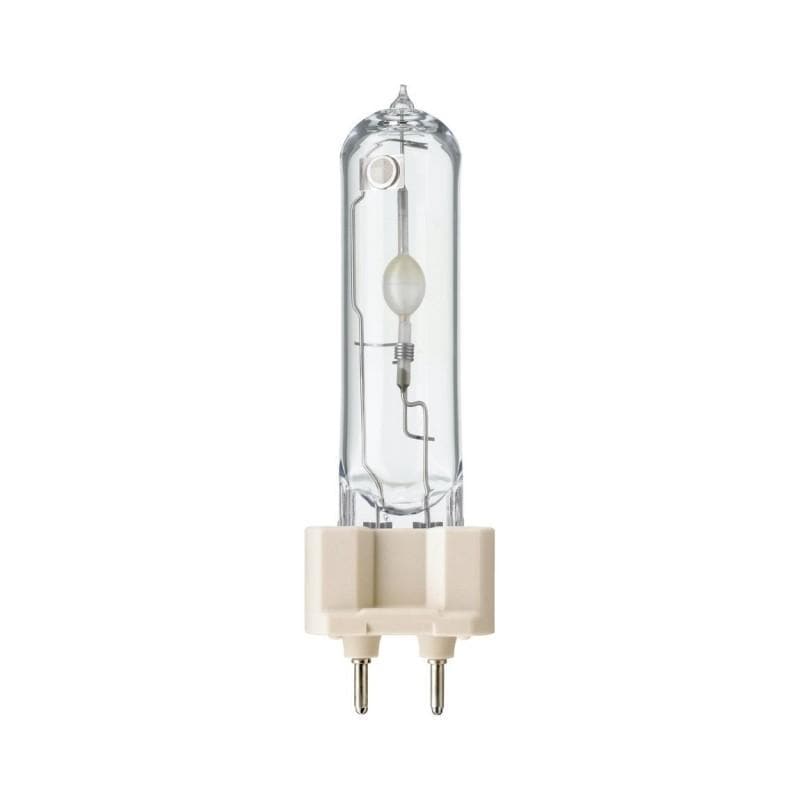

PHILIPS MasterColour CDM-T Elite G12 Bulb x12PCs
PHILIPS MasterColour CDM-T Elite G12 Bulb x12PCs
SKU SKU:928185205129
Regular price
$ 560.74 SGD
Regular price
$ 600.00 SGD
Sale price
$ 560.74 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Share
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
UV
Luminaire Design Requirements
| Cap-Base |
G12 [ G12]
|
| Operating Position |
UNIVERSAL [ Any or Universal (U)]
|
| Life to 5% Failures (Nom) |
12000 h
|
| Life to 10% Failures (Nom) |
14000 h
|
| Life to 20% Failures (Nom) |
16000 h
|
| Life to 50% Failures (Nom) |
20000 h
|
| ANSI Code HID |
C130/E
|
| Color Code |
930 [ CCT of 3000K] / 942[CCT of 4200K]
|
| Luminous Flux (Rated) (Nom) |
4050 lm / 3850 lm / 5400 lm / 5000 lm / 7800 lm / 7500 lm / 11000 lm / 15000 lm
|
| Color Designation |
Warm White (WW)
|
| Lumen Maintenance 1000 h (Nom) |
95 %
|
| Lumen Maintenance 12000 h (Nom) |
80 %
|
| Lumen Maintenance 10000 h (Nom) |
83 %
|
| Lumen Maintenance 2000 h (Nom) |
93 %
|
| Lumen Maintenance 4000 h (Nom) |
90 %
|
| Lumen Maintenance 5000 h (Nom) |
88 %
|
| Chromaticity Coordinate X (Nom) |
0.435
|
| Chromaticity Coordinate Y (Nom) |
0.395
|
| Correlated Color Temperature (Nom) |
3000 K
|
| Luminous Efficacy (rated) (Nom) |
98 lm/W
|
| Color Rendering Index (Min) |
87
|
| Color Rendering Index (Nom) |
90
|
| Power (Rated) (Nom) |
35 W / 70 W / 100 W / 150 W / 50 W
|
| Lamp Current Run-Up (Max) |
1 A
|
| Lamp Current (EM) (Nom) |
0.500 A
|
| Ignition Supply Voltage (Max) |
198 V
|
| Ignition Peak Voltage (Max) |
5000 V
|
| Ignition Supply Voltage (Min) |
198 V
|
| Re-Ignition Time (Min) (Max) |
15 min
|
| Ignition Time (Max) |
30 s
|
| Voltage (Max) |
90 V
|
| Voltage (Min) |
80 V
|
| Voltage (Nom) |
85 V
|
| Dimmable |
No
|
| Run-Up Time 90% (Max) |
3 min
|
| Run-Up Time 90% (Nom) |
1.5 min
|
| Bulb Finish |
Clear
|
| Energy Efficiency Label (EEL) |
A+
|
| Mercury (Hg) Content (Nom) |
4.7 mg
|
| Energy Consumption kWh/1000 h |
43 kWh
|
| Pet (Niosh) (Min) |
8 h/500lx
|
| Damage Factor D/fc (Max) |
0.3
|
| Bulb Temperature (Max) |
500 °C
|
| Cap-Base Temperature (Max) |
250 °C
|
| Pinch Temperature (Max) |
350 °C
|
