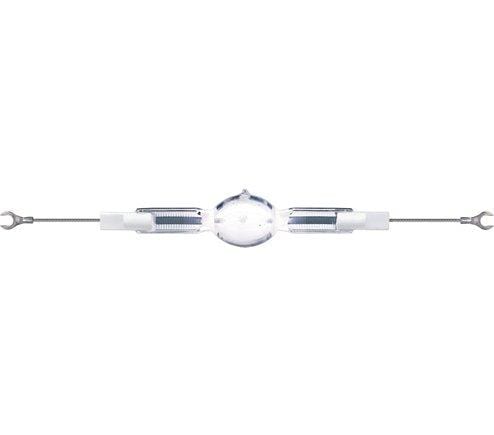

PHILIPS Master MHN-SB 2000W/956 400V K12s-7 WH HO
PHILIPS Master MHN-SB 2000W/956 400V K12s-7 WH HO
SKU SKU:928196805130
Regular price
$ 532.71 SGD
Regular price
$ 570.00 SGD
Sale price
$ 532.71 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Share
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
UV
Luminaire Design Requirements
| Cap-Base |
CABLE [ Cable]
|
| Operating Position |
P15 [ Parallel +/-15D or Horizontal(HOR)]
|
| Life to 5% Failures (Nom) |
1700 h
|
| Life to 10% Failures (Nom) |
2300 h
|
| Life to 20% Failures (Nom) |
3000 h
|
| Life to 50% Failures (Nom) |
4500 h
|
| Color Code |
956 [ CCT of 5600K]
|
| Luminous Flux (Rated) (Min) |
215000 lm
|
| Luminous Flux (Rated) (Nom) |
220000 lm
|
| Color Designation |
Daylight
|
| Lumen Maintenance 1000 h (Nom) |
95 %
|
| Lumen Maintenance 2000 h (Nom) |
91 %
|
| Chromaticity Coordinate X (Nom) |
334
|
| Chromaticity Coordinate Y (Nom) |
366
|
| Correlated Color Temperature (Nom) |
5600 K
|
| Luminous Efficacy (rated) (Nom) |
108 lm/W
|
| Color Rendering Index (Min) |
-
|
| Color Rendering Index (Nom) |
81
|
| Lamp supply voltage |
400 V [ 400]
|
| Power (Rated) (Nom) |
2070.0 W
|
| Lamp Current Run-Up (Max) |
17 A
|
| Lamp Current (EM) (Nom) |
11.8 A
|
| Ignition Supply Voltage (Min) |
360 V
|
| Voltage (Max) |
220 V
|
| Voltage (Min) |
185 V
|
| Voltage (Nom) |
205 V
|
| Dimmable |
No
|
| Bulb Finish |
Clear
|
| Cap-Base Information |
-
|
| Energy Efficiency Label (EEL) |
A+
|
| Mercury (Hg) Content (Nom) |
220 mg
|
| Energy Consumption kWh/1000 h |
2277 kWh
|
| Specific Eff. Radiant Power |
60 mW/klm
|
| Bulb Temperature (Max) |
1015 °C
|
| Pinch Temperature (Max) |
450 °C
|
