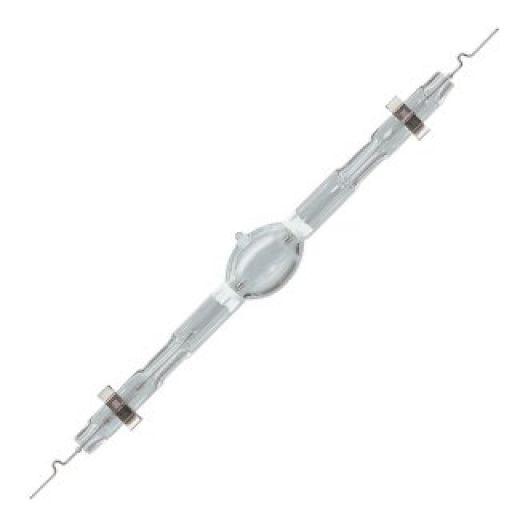

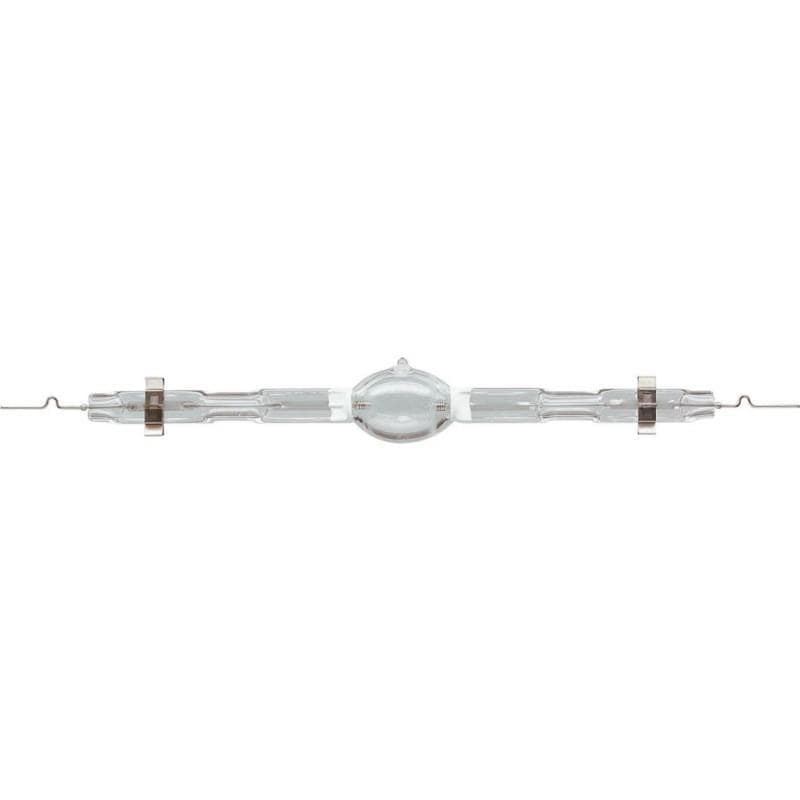

PHILIPS Master MHN-SA
PHILIPS Master MHN-SA
SKU SKU:928078415130
Regular price
$ 734.31 SGD
Regular price
$ 785.71 SGD
Sale price
$ 734.31 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Share
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
Luminaire Design Requirements
| Cap-Base |
(P)SFC [ (P)SFC] / X830R / XW
|
| Operating Position |
P15 [ Parallel +/-15D or Horizontal(HOR)]
|
| Life to 5% Failures (Nom) |
1300 h
|
| Life to 10% Failures (Nom) |
2000 h
|
| Life to 20% Failures (Nom) |
3200 h
|
| Life to 50% Failures (Nom) |
6100 h
|
| Color Code |
956 [ CCT of 5600K]
|
| Luminous Flux (Rated) (Nom) |
155000 lm / 160000 lm / 226000 lm
|
| Color Designation |
Daylight
|
| Lumen Maintenance 1000 h (Nom) |
95 %
|
| Lumen Maintenance 2000 h (Nom) |
91 %
|
| Lumen Maintenance 5000 h (Nom) |
76 %
|
| Chromaticity Coordinate X (Nom) |
330
|
| Chromaticity Coordinate Y (Nom) |
339
|
| Correlated Color Temperature (Nom) |
5600 K
|
| Luminous Efficacy (rated) (Nom) |
86 lm/W
|
| Color Rendering Index (Nom) |
86
|
| Lamp supply voltage |
230 V [ 230]
|
| Power (Rated) (Nom) |
1800 W / 2000 W
|
| Lamp Current Run-Up (Max) |
25 A
|
| Lamp Current (EM) (Nom) |
17.3 A
|
| Ignition Supply Voltage (Min) |
198 V
|
| Voltage (Max) |
130 V
|
| Voltage (Min) |
110 V
|
| Voltage (Nom) |
120 V
|
| Dimmable |
No
|
| Bulb Finish |
Clear
|
| Cap-Base Information |
20-6
|
| Energy Efficiency Label (EEL) |
A+
|
| Mercury (Hg) Content (Nom) |
92 mg
|
| Energy Consumption kWh/1000 h |
1980 kWh
|
| Bulb Temperature (Max) |
980 °C
|
| Pinch Temperature (Max) |
300 °C
|
