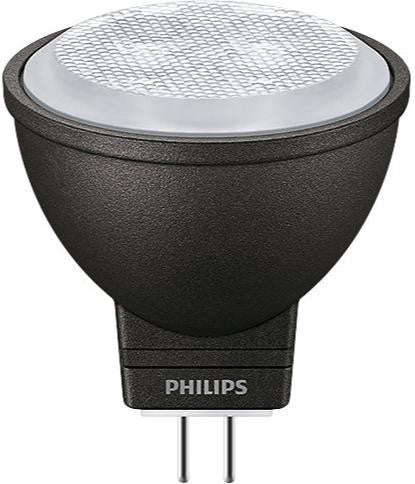

PHILIPS MASTER 'LED-MR11' 12V 3.5W (20W) 24D G4 (2700K) (200lm)

Specifications

General information

Cap-Base	GU4  [ GU4]
EU RoHS compliant	Yes
Nominal Lifetime (Nom)	40000 h

Switching Cycle	50000X
Flux measurement reference	Narrow Cone

Light technical

Color Code	827  [ CCT of 2700K]
Beam Angle (Nom)	24 °
Luminous Flux (Nom)	200 lm
Luminous Intensity (Nom)	1000 cd
Color Designation	Warm White (WW)
Correlated Color Temperature (Nom)	2700 K

Luminous Efficacy (rated) (Nom)	57.00 lm/W
Color Consistency	<6
Color Rendering Index (Nom)	80
LLMF At End Of Nominal Lifetime (Nom)	70 %
Luminous Flux in 90° Cone (Rated)	200 lm

Operating and electrical

Input Frequency	- Hz
Power (Nom)	3.5 W
Lamp Current (Nom)	400 mA
Wattage Equivalent	20 W
Starting Time (Nom)	0.5 s

Warm Up Time to 60% Light (Nom)	0.5 s
Power Factor (Nom)	0.7
Voltage (Nom)	ac electronic 12 V

Temperature

T-Case Maximum (Nom)

85 °C

Controls and dimming

Dimmable

No

Mechanical and housing

Bulb Shape

MR11  [ 1.375inch/35mm]

Approval and application

Energy Efficiency Class	G
Suitable For Accent Lighting	Yes

Energy Consumption kWh/1000 h	4 kWh
EPREL Registration Number	680249

Product data

Full product code	871951435990100
Order product name	MASTER LEDspotLV 3.5-20W 827 MR11 24D
EAN/UPC - Product	8719514359901
Order code	929003087002
Numerator - Quantity Per Pack	1

Numerator - Packs per outer box	12
Material Nr. (12NC)	929003087002
Copy Net Weight (Piece)	0.018 kg
