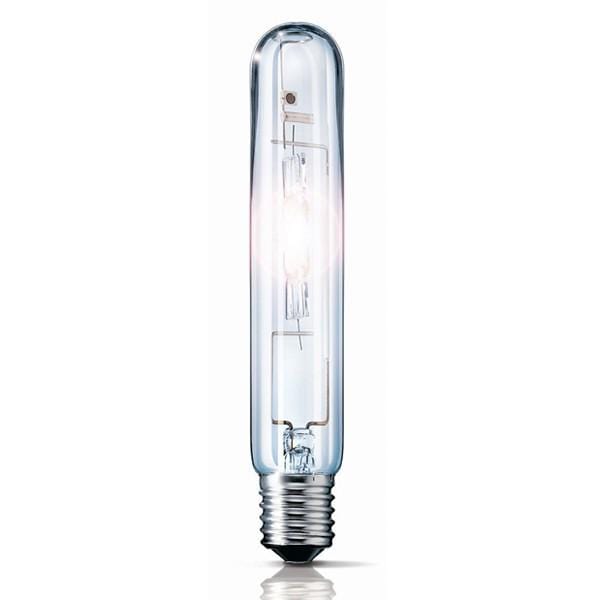

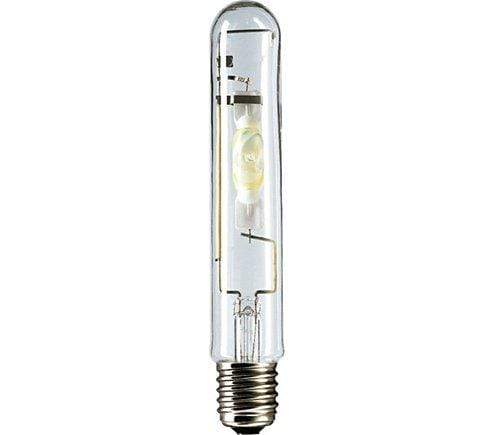

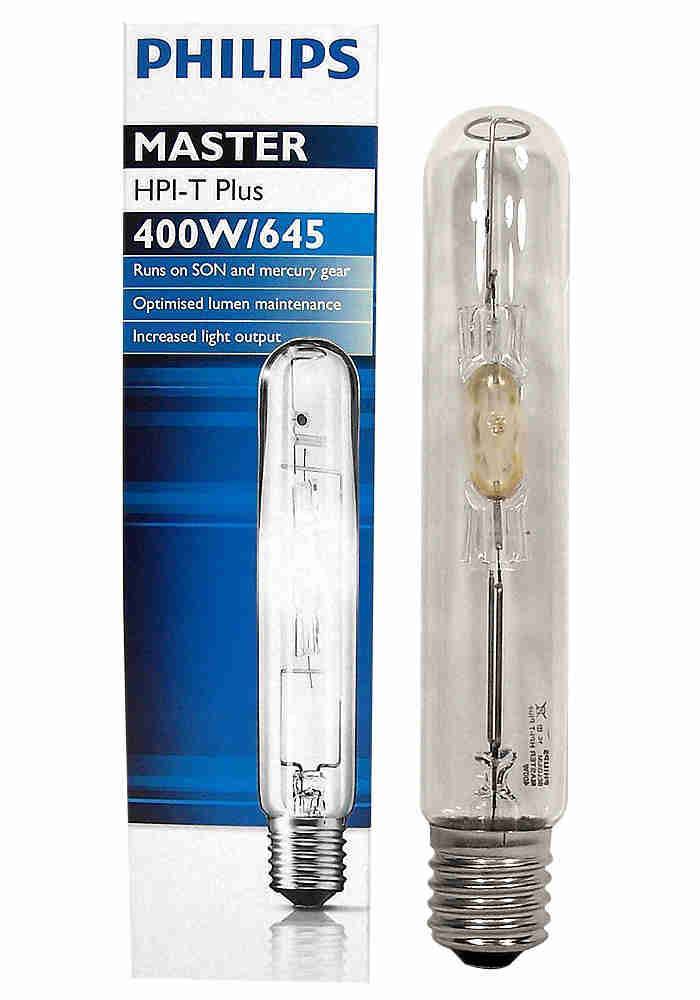

PHILIPS Master HPI-T Plus E40
PHILIPS Master HPI-T Plus E40
SKU SKU:928481600096
Regular price
$ 46.00 SGD
Regular price
$ 48.00 SGD
Sale price
$ 46.00 SGD
Unit price
/
per
Shipping calculated at checkout.
14 in stock
Couldn't load pickup availability
Share
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
Luminaire Design Requirements
| Cap-Base |
E40 [ E40]
|
| Operating Position |
P20 [ Parallel +/-20D or Horizontal(HOR)]
|
| Life to 5% Failures (Nom) |
5000 h
|
| Life to 10% Failures (Nom) |
7500 h
|
| Life to 20% Failures (Nom) |
11000 h
|
| Life to 50% Failures (Nom) |
20000 h
|
| System Description |
Horizontal Operating Position
|
| Color Code |
645 [ CCT of 4500K]
|
| Luminous Flux (Rated) (Min) |
18500 lm / 30000 lm
|
| Luminous Flux (Rated) (Nom) |
20500 lm / 32000 lm
|
| Color Designation |
Cool White (CW)
|
| Lumen Maintenance 10000 h (Nom) |
70 %
|
| Lumen Maintenance 2000 h (Min) |
75 %
|
| Lumen Maintenance 2000 h (Nom) |
90 %
|
| Lumen Maintenance 20000 h |
60 %
|
| Lumen Maintenance 5000 h (Min) |
65 %
|
| Lumen Maintenance 5000 h (Nom) |
80 %
|
| Chromaticity Coordinate X (Nom) |
365
|
| Chromaticity Coordinate Y (Nom) |
377
|
| Correlated Color Temperature (Nom) |
4500 K
|
| Luminous Efficacy (rated) (Nom) |
84 lm/W
|
| Color Rendering Index (Nom) |
65
|
| Power (Rated) (Nom) |
250 W / 400 W
|
| Lamp Current Run-Up (Max) |
3.9 A
|
| Lamp Current (EM) (Nom) |
2.1 A
|
| Ignition Supply Voltage (Max) |
198 V
|
| Ignition Peak Voltage (Max) |
560 V
|
| Ignition Supply Voltage (Min) |
198 V
|
| Ignition Time (Max) |
10 s
|
| Voltage (Max) |
138 V
|
| Voltage (Min) |
118 V
|
| Voltage (Nom) |
128 V
|
| Dimmable |
No
|
| Bulb Finish |
Clear
|
| Energy Efficiency Label (EEL) |
A+
|
| Mercury (Hg) Content (Nom) |
36 mg
|
| Energy Consumption kWh/1000 h |
269 kWh
|
| Bulb Temperature (Max) |
550 °C
|
| Cap-Base Temperature (Max) |
250 °C
|
