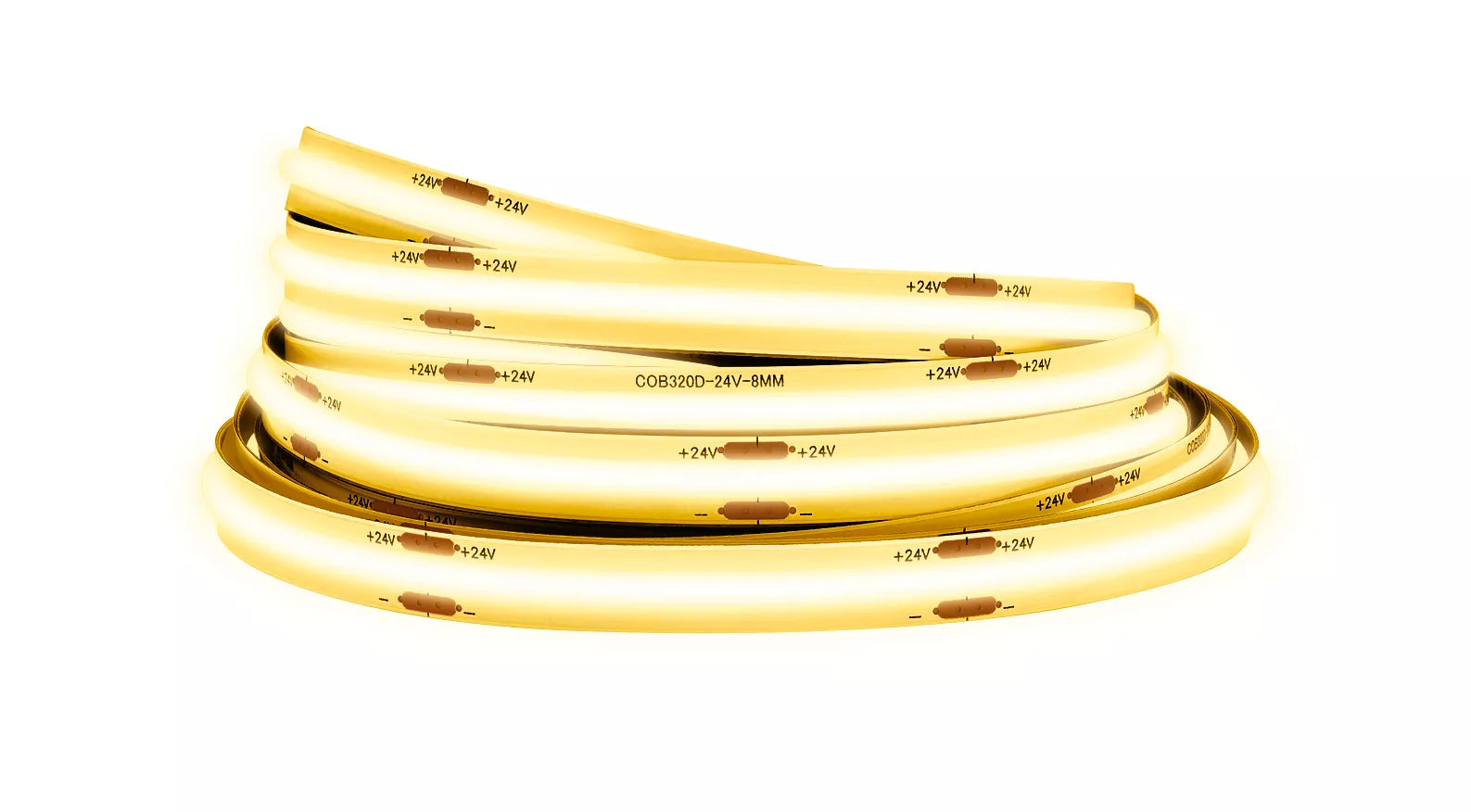

Philips LS161 COB 12W 930 24V IP20 GM LED Strip x5M Roll

Product data
General Information
Driver included No
Warranty period 1 years

Light Technical
Luminous Flux 1,050 lm
Correlated Color Temperature (Nom) 3000 K
Luminous Efficacy (rated) (Nom) 80 lm/W
Color rendering index (CRI) 90
Photobiological safety according to EN 62471 RG1

Operating and Electrical
Input Voltage 24 V
Initial CLO power consumption 45 W
Power Consumption 45 W
Power Factor (Fraction) -
Protection class IEC Safety class III

Controls and Dimming
Dimmable No
Control interface -
Constant light output Yes
Maximum dim level Not applicable

Mechanical and Housing
Housing Material Metal–Plastic
Overall length 5,000 mm
Overall width 8 mm
Overall height 1.8 mm
Dimensions (Height x Width x Depth) 2 x 8 x 5000 mm
Ingress protection code IP20 [Finger-protected]
Net Weight (Piece) 0.056 kg

Approval and Application
Glow-wire test -
EU RoHS compliant Yes
Ambient temperature range -10 to +40 °C

Initial Performance (IEC Compliant)
Initial chromaticity (0.4447, 0.4044) 5SDCM
Power consumption tolerance +/-10%

Over Time Performance (IEC Compliant)
Median useful life L70B50 20,000 hour(s)

Product Data

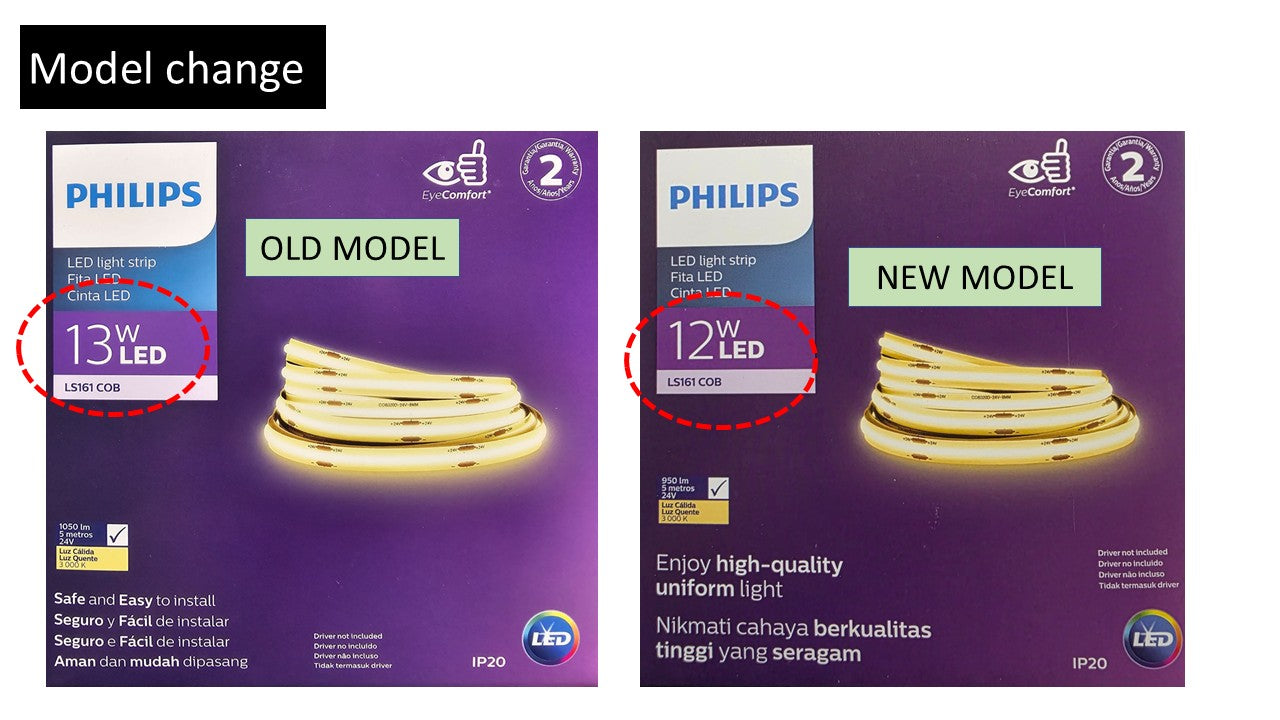

Order product name LS161 COB LED12 13W 930 5M 24V
Full product name LS161 COB LED12 13W 930 5M 24V
