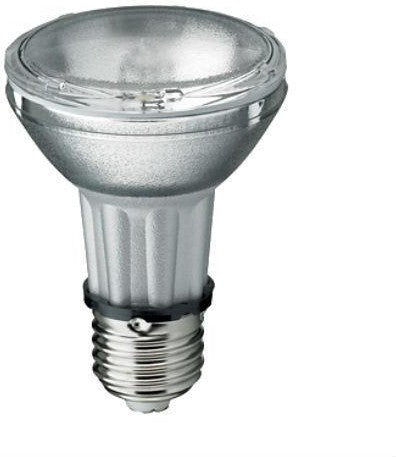

PHILIPS CDM-Reflector Elite PAR20 Bulb x12PCs
PHILIPS CDM-Reflector Elite PAR20 Bulb x12PCs
SKU SKU:928050200630
Regular price
$ 961.20 SGD
Regular price
$ 1,028.57 SGD
Sale price
$ 961.20 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Share
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
Luminaire Design Requirements
| Cap-Base |
E27 [ E27]
|
| Operating Position |
UNIVERSAL [ Any or Universal (U)]
|
| Life to 5% Failures (Nom) |
9000 h
|
| Life to 10% Failures (Nom) |
5500 h
|
| Life to 20% Failures (Nom) |
12000 h
|
| Life to 50% Failures (Nom) |
15000 h
|
| Switching Cycle |
1350X
|
| Color Code |
930 [ CCT of 3000K]
|
| Beam Angle (Nom) |
10 ° / 30 D
|
| Beam Angle Technical (Nom) |
12 °
|
| Luminous Intensity (Nom) |
23000 cd / 6500 cd
|
| Beam Description |
Spot
|
| Color Designation |
Warm White (WW)
|
| Lumen Maintenance 12000 h (Nom) |
82 %
|
| Lumen Maintenance 2000 h (Nom) |
94 %
|
| Lumen Maintenance 4000 h (Nom) |
90 %
|
| Design Mean Lumens |
2040 lm
|
| Chromaticity Coordinate X (Nom) |
0.437
|
| Chromaticity Coordinate Y (Nom) |
0.400
|
| Correlated Color Temperature (Nom) |
3000 K
|
| Luminous Efficacy (rated) (Nom) |
61 lm/W
|
| Color Rendering Index (Min) |
88
|
| Color Rendering Index (Nom) |
91
|
| LLMF At End Of Nominal Lifetime (Nom) |
80 %
|
| Luminous Flux in 90° Cone (Rated) |
2050 lm
|
| Power (Rated) (Nom) |
35.0 W
|
| Ignition Supply Voltage (Min) |
198 V
|
| Re-Ignition Time (Min) (Max) |
15 min
|
| Warm Up Time to 60% Light (Nom) |
120 s
|
| Ignition Time (Max) |
30 s
|
| Voltage (Max) |
96 V
|
| Voltage (Min) |
80 V
|
| Voltage (Nom) |
88 V
|
| Dimmable |
No
|
| Run-Up Time 90% (Max) |
3 min
|
| Bulb Finish |
Clear
|
| Energy Efficiency Label (EEL) |
A
|
| Mercury (Hg) Content (Nom) |
4.7 mg
|
| Energy Consumption kWh/1000 h |
43 kWh
|
| Bulb Temperature (Max) |
300 °C
|
| Cap-Base Temperature (Max) |
200 °C
|
