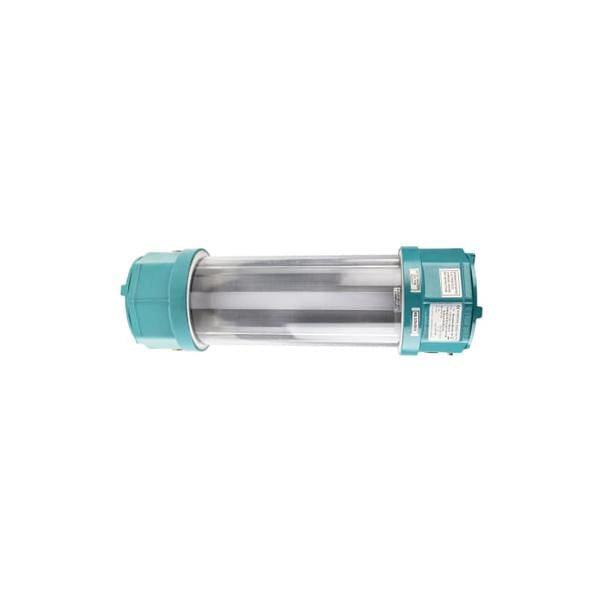

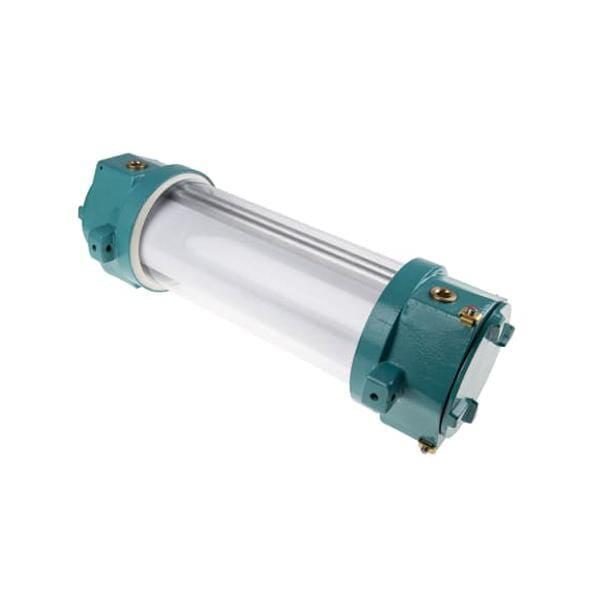

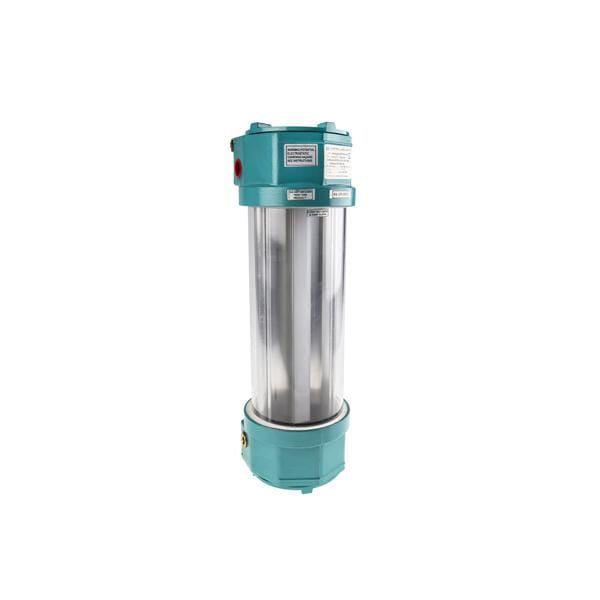

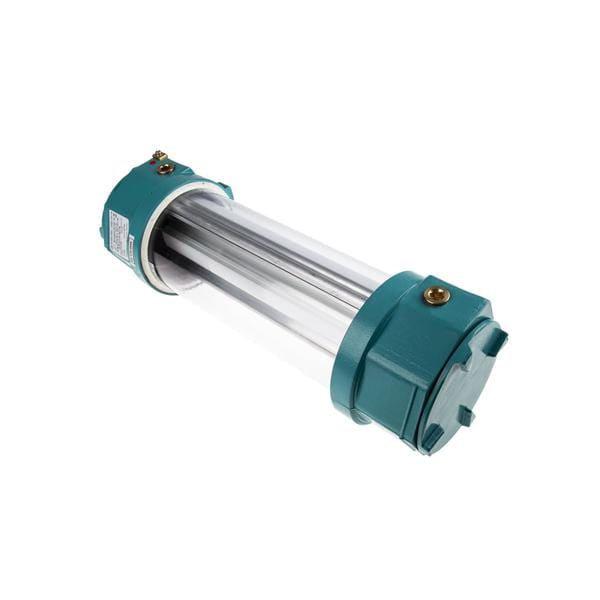

Petrel 14.2W LED Module Hazardous Area Light Fitting
Petrel 14.2W LED Module Hazardous Area Light Fitting
SKU SKU:1750593
Out of stock
Couldn't load pickup availability
Share
*Check stock before ordering. Lead time 5-6 weeks.*
Product Details
Petrel 14.2W LED Hazardous Area Light Fitting
The Petrel 14.2W LED Hazardous Area Light Fitting series lighting device. It is an ideal lighting device for the most challenging and harsh environments. The LED is Available in different sizes from 1ft to 5ft. Use of LED technology has a number of advantages over the conventional lighting technology like decreased power consumption and thus cost savings on electricity bills, increased life expectancy and many more. Its highly advanced protection and tolerance features make it suitable for effectively dealing with the modern day industrial challenges and requirements. The LED has a light output up to 1, 475lm. It has a lifespan of about 50,000 hours.Features and Benefits
• Low maintenance high efficiency LED light source
• Energy efficient control
• Corrosion resistant body
• Motion sensor option for controlling single and multiple fittings
• Standard and emergency variants
• Energy efficient control
• Five wires type wiring configuration
• Tough marine grade aluminium body with high impact tolerant polycarbonate tube
• Two access types via threaded end cover and slide out tray
• Gas zone 1, 2, 21 and 22 protection
Applications
• Chemical Sites
• Refineries
• Docks and Jetties
• Offshore
• Marine Engineering
• Pharmaceutical
• Paint Spray Shops
• Paper Mills
• Waste, Water and Metal Treatment Plants
Certifications
• ATEX Certified
• CML 14ATEX1028X
• IECEx CML14.0012X
• IP66 rated
Specifications
| Attribute | Value |
| Type | LED Module |
| Zone Classification | 1 |
| Temperature Classification | T6 |
| Wattage | 14.2 W |
| Lamp Type | LED |
| Voltage Rating | 230 V |
| Length | 448 mm |
| Width | 158 mm |
| Individual Lamp Wattage | 14.2W |
| Number of Lamps | 1 |
| Hazardous Area Certification | IECEx |
| Series | 7 |
| Current Rating | 25 A |
