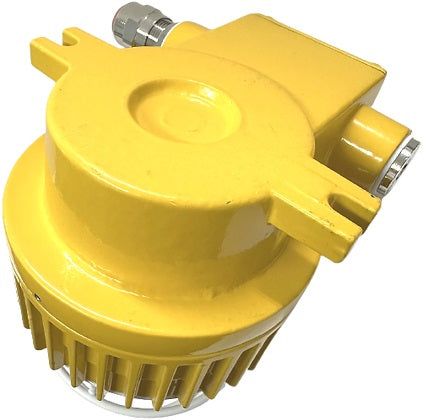

Oshima 9W IP66 Explosion Proof and LED Pendant Light
Oshima 9W IP66 Explosion Proof and LED Pendant Light
SKU SKU:792057
Couldn't load pickup availability
Share
Technical Details:
Description:
The Oshima pendant lights (explosion proof and LED) are made to withstand harsh environments. Thus, they can be used safely and reliably in places with explosive air mixture, with explosive material II A, II B, II C, where the temperature group is T1─T6, for illumination in cabin and outdoor places.
Product Features:
- The shell is made of aviation grade aluminum.
- The lampshade is made of toughened glass, with stainless steel protective guard.
- The lamp body adopts seal structure with high waterproof and corrosion resistance.
|
Inventory code |
792057/CFD11 |
|
Explosion-proof mark |
Ex de IIC T6 Gb |
|
Rated voltage |
AC100─240V 50/60Hz DC24V |
|
Power |
9W |
|
Power factor |
> 0.9 |
|
Illuminant |
LED |
|
Illuminant color |
White |
|
Illuminant life |
> 50000h |
|
Illuminous flux |
900lm |
|
RA |
Ra > 85 |
|
Color temperature |
4000K─6500K |
|
Protection class |
IP66 |
|
Cable diameter |
Ø10~Ø12 |
|
Installation |
Wall type, ceiling type |
|
Ambient temperature |
─20°C~+45°C |
|
Light body material |
Aviation aluminum |
|
Shade material |
Toughened glass |
|
Weight |
2.7kg |
