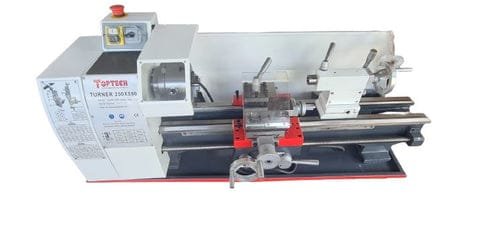

Optimum 230V Mini Lathe | Model : 250F
Optimum 230V Mini Lathe | Model : 250F
SKU:TURNER-250F
Regular price
$ 1,900.80 SGD
Regular price
Sale price
$ 1,900.80 SGD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
Optimum 230V Mini Lathe | Model : 250F
Specifications :
Capacity :
Swing over bed : 250mm (diameter)
Swing over cross slide : 150mm (diameter)
Admits between : 550mm
Center height : 125mm
Width of bed : 135mm
Headstock :
Spindle dore : 21mm (diameter)
Taper of spindle bore : MT3
Range of spindle speed : 125 - 2000 rpm
Feeds and threads :
Top slide travel : 75mm
Cross slide travel : 120mm
Max. section of tool : 12 x 12mm
Threads metric pitches : 0.4 - 3.5mm
Threads imperial pitches : 8 - 44 TPI
Quill :
Quill diameter : 30mm (diameter)
Quill travel : 70mm
Quill taper : MT2
Cross adjustment : +-5mm
Motor Power : 750W
Overall Dimension (L x W x H) : 1110 x 500 x 500 mm
Net Weight : 127kg
Gross Weight : 145kg
