• OPPLE Fixture 6W / 3000K / 4inch OPPLE SLIM LED SQUARE RECESSED DOWN LIGHT NON DIM(ESIII-S)
  • OPPLE Fixture OPPLE SLIM LED SQUARE RECESSED DOWN LIGHT NON DIM(ESIII-S)
  • OPPLE Fixture 24W / 6500K / 8inch OPPLE SLIM LED SQUARE RECESSED DOWN LIGHT NON DIM(ESIII-S)
1 3

L7

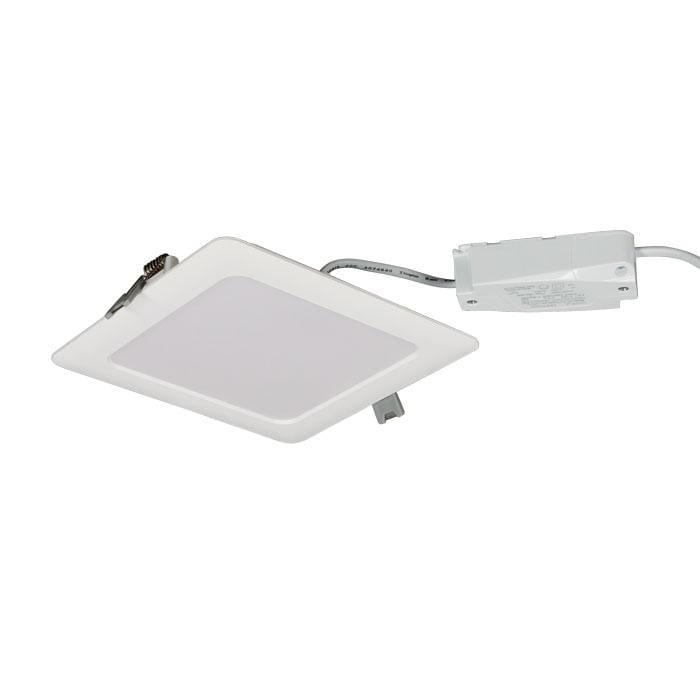

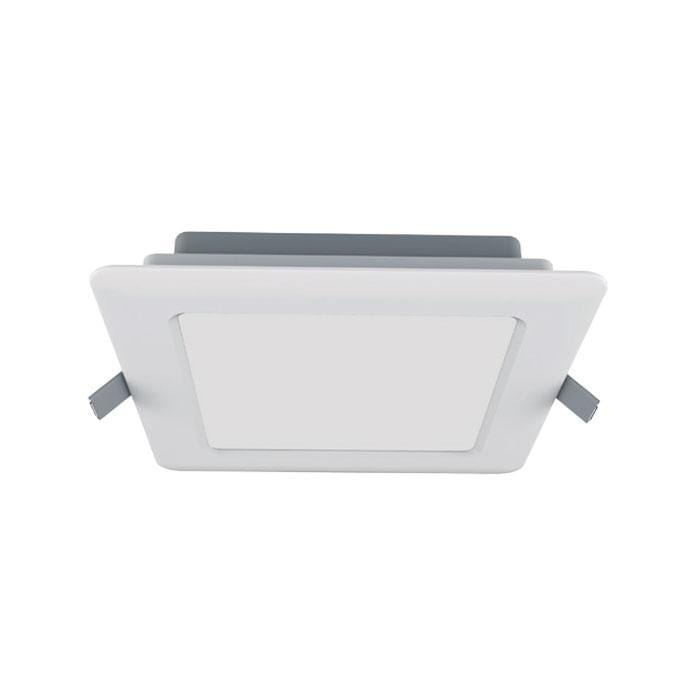

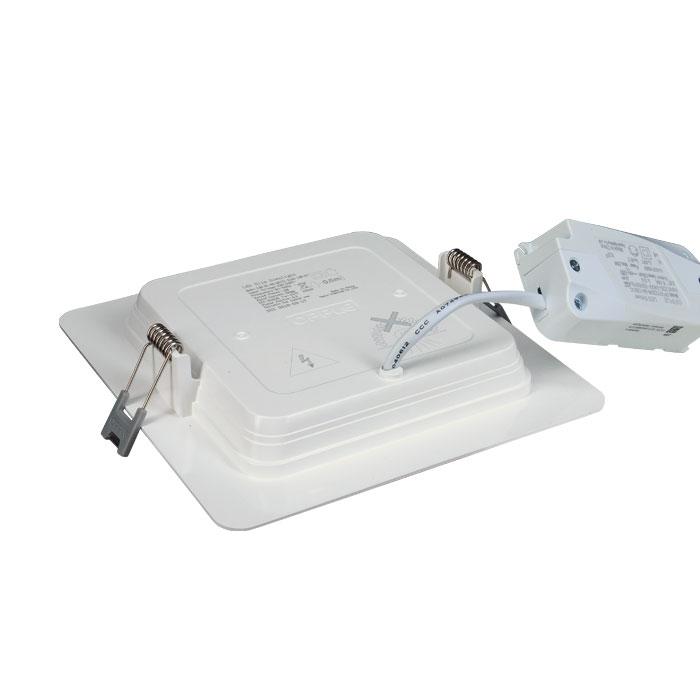

OPPLE SLIM LED SQUARE RECESSED DOWN LIGHT NON DIM(ESIII-S)

OPPLE SLIM LED SQUARE RECESSED DOWN LIGHT NON DIM(ESIII-S)

SKU 140062550

$ 10.00 SGD
$ 11.00 SGD $ 10.00 SGD
Sale Sold out
Shipping calculated at checkout.
Power
Color Temperature
Size

300 in stock
Request For Quote

Features:

SLIM LED  down light for home or office use. Non-dimmable. Choose from 6W, 12W or 24W. Choice of 3 LED color temperature: warm white 3000K, cool white 4000K or daylight 6500K. CRI 80. High Lumen output.

• High lumen output
• Long lifespan
• Up to 50% energy saving compared to conventional down light
• Slim stylish downlight suitable for any space

Product Specifications:

• SLIM LED square recessed down light. Non-dimmable.
• Power wattage (W): 6W, 12W or 24W
• Light source: LED
• Product dimensions (mm): 6W - 112 x 112 x H23
• Product dimensions (mm): 12W - 162 x 162 x H23
• Product dimensions (mm): 24W - 212 x 212 x H23
• Cutting hole (mm): 6W - 100 x 100
• Cutting hole (mm): 12W - 150 x 150
• Cutting hole (mm): 24W - 200 x 200
• LED Color Temperature (CCK): Warm white 3000K / Cool white 4000K / Daylight 6500K
• Beam angle (°): 120
• Input voltage (VAC): 220-240V
• Input frequency (Hz): 50/60Hz
• Lumen output (lm): 6W (450-480 Lumens)
• Lumen output (lm): 12W (900-960 Lumens)
• Lumen output (lm): 24W (1800-1920 Lumens)
• IP rating: IP44, IP20-recessed parts
• Remote LED Driver
• Mounting method: recessed mounted
• Dimmable (Yes/No): No

 Weight:0.2 kg

 Dimensions:14 × 12 × 6 cm



Optical parameters
Colour Consistency (SDCM) <6
Color Temperature 3000 K / 4000 K / 6500 K / 6000 K
Lumen 450 lm - 1920 lm
Housing color
 White
CRI(Ra) >80
Dimmable No
Electrical parameters
Input voltage range(VAC) 220 V - 240 V
Input frequency(Hz) 50/60 Hz
AC/DC AC
IP IP20
IK IK02
Driver integrated (Yes/No) No
Rated wattage(W)(Ta 25℃) 18
Glow wire test 650˚C
Power Factor 0.5
Weight (pc/kg) 0.144/0.203/0.303/0.303 0.157/0.238/0.353/0.353
Driver failure rate 1% at 5000h
Mechanical Properties
Housing Material  PC
Optical Material PC
Application Conditions
Operating Temperature -15~45˚C
Application Temperature 25˚C
Storage Environment -25~50˚C





View full details
