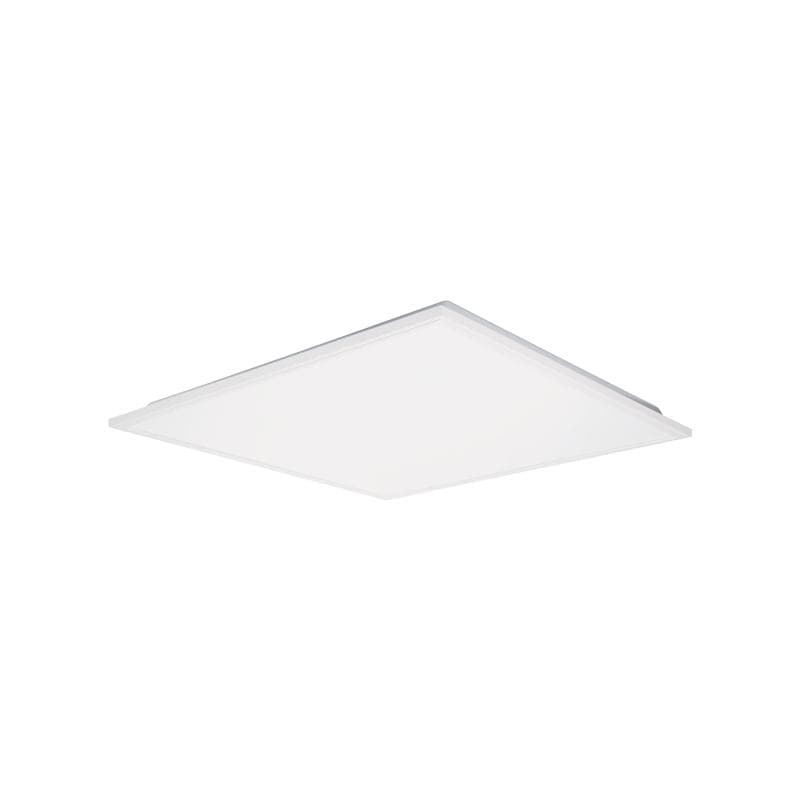

OPPLE LED Utility Backlit Panel Light
OPPLE LED Utility Backlit Panel Light
SKU SKU:542003001510
Regular price
$ 42.00 SGD
Regular price
$ 45.00 SGD
Sale price
$ 42.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Share
Features:
- Uniform lighting output
- 5KV surge protection
- One-piece punching SGCC sheet
- Multiple installation
-
Including recess mounting clips and including driver
Benefits:
- The combination of high quality lens and reflection sheet ensures even lighting output
- Suitable for places with fluctuating voltage
- Strong enough to withstand long-distance shipment
- Suitable for both recessed and suspended mounting with accessories available
Technical Specifications:
|
On / Off Cycles |
100000 |
| Colour Consistency (SDCM) |
≤6 |
| Dimmable | No |
|
Beam Angle (°) |
120 |
| Finishing color | White |
| IP | IP20 |
| Driver integrated(yes/No) | Yes |
| Driver failure rate |
1%@5000h |
| Weight(kg/pc) |
1.76/ 1.82 |
| Electrical Supply | |
| Frequency(Hz) | 50/60 |
| Voltage | 220-240 V |
| AC/DC | AC |
| Mechanical Finishing Properties | |
| Housing material | SGCC |
| Optical material | PMMA |
| Application Conditions | |
| Operating Temperature | -10~45°C |
| Application Temperature |
25°C |
| Storage Environment |
-25~50°C |
|
Item Code |
Item Description |
Power(W) |
Power factor |
Lumen(lm) |
E cacy(lm/W) |
CRI |
CCT |
Lifetime (L70B50 |
|
542003001510 |
LEDPanel-BL Re295-36W-4000-WH-GP-U |
36 |
0.90 |
3000 |
83 |
80 |
4000 |
15000 |
| 542003001310 | LEDPanel-BL Sq595-36W-4000-WH-GP-U | 36 | 0.90 | 3000 | 83 | 80 | 4000 | 15000 |
|
Item |
Single Box(2pc/box) |
Packaging Unit |
||||
|
Item Code |
Item Description |
Dimensions(mm) (LxWxH) |
Gross Weight (kg) |
Dimensions(mm) (LxWxH) |
Gross Weight (kg) |
Packing Qty (pcs/unit) |
|
542003001510 |
LEDPanel-BL Re295-36W-4000-WH-GP-U |
1234*117*334 |
10.80 |
1254*379*356 |
14.2 |
6 |
| 542003001310 | LEDPanel-BL Sq595-36W-4000-WH-GP-U | 634*117*634 | 10.56 | 654*379*653 | 13.2 | 6 |
